| Prod Model: |
MFS5-65 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model/Size: |
Mfb5-65 26"(650mm) |
| Blade: |
3 Aluminum Blades |
| Motor: |
104X36mm Stator, Pure Copper Winding |
| Overload Protection: |
Yes |
| Use Area: |
Outdoor |
| Color: |
Black |
| Voltage: |
220~240V/50Hz, or 110~120V/60Hz |
| Air Flow: |
230m3/Min |
| Mist Time: |
Connect Water Tap Directly |
| Power Cord: |
Outside 2.5m Length 3cx0.75mm2 VDE Wire with Plug |
| Type: |
Water Mist Fan |
| Speed: |
3 Speed |
| Power Supply: |
Electric |
| Power: |
100W-300W |
| Application: |
Industrial, Outdoor |
| Timer: |
Without Timer |
Product Description
Our fans cover mist fan, industrial fan, Ventialting fan, stand fan, wall fan, exhaust fan, axial fan and centrifugal fans. most of the fan have CE/GS/SAA approvals. here is the industrial fan details for your reference:
Easy install
Use for outdoor place, hot area
Cool down the temperature 4-8 centidegree
One fan cover 40 m2

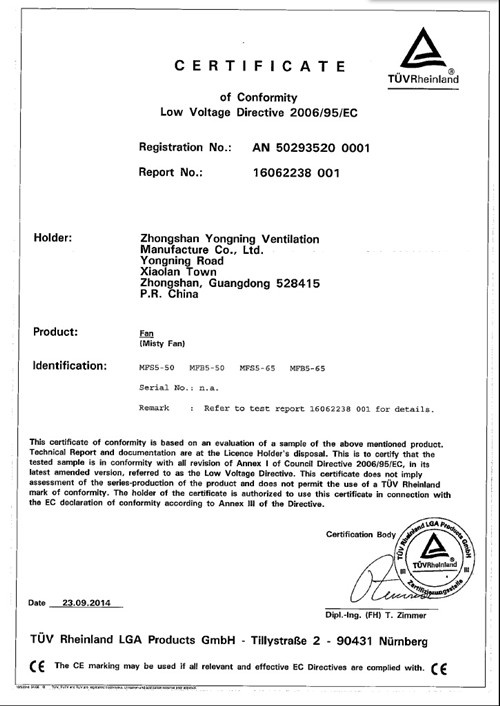

CE, SAA approval1.MIST FAN:Centrifugal power design, without nozzle, easy for mantanience
2.Adjustable misting volume, low noise
3.Atomization and air delivery driven by separate motor,convenient to use and easy to maintain
4.The fan surfaced with powder coating, it's rust prevention and long service life
5.Motor has overloaded protection, low temperature rising, steady performance
6.Protective device for pump running when water is over
7.Waterproof electric design,safe to use
8.90 degree oscillation, three speeds
9.Utilized CAD optimized design, graceful looking,Suitable for household use,Restaurant and bars
Public areas e.G.Parks, airports, train stations etc,Cattle, horse and poultry farms
Manufacturing environment,Hotels poolside and outdoor sitting areas
Sports stadiums,Green Houses
11.CE, SAA approvals
12 MFB5-50 20" Centrifugal misty cooling fan
4L water tank directly connect to water supply, water hose 3 meters, diameter at 6mm
220V 50Hz 180w speed:1400rpm, air delivery:170m3/min
Packing:Tank:41X35X22 fan:58X58X4905
136pcs/20'GP, 295pcs/40'GP, 355pcs/40'HQ
| Model No. | Full Item/Description: | Qty' 1X20' (pcs) | Qty' 1X40'HQ (pcs) | each box Packaging /Weight(cm) | Weight/pc (kgs) |
| MFS5-50 | 20" pedestal mist fan
centrifugal power
24L water tank,last for 9 hours. 220-240V50Hz 180w speed: 1350rpm
airdelivery:170m3/min total height: 1780mm | 90 | 220 | three box: tank:57X50.5X46cm 16.2kgs fan:58X58X49.5cm 16.5kgs pillar:128X17X11.7cm 7.1kgs
total 0.3244cbm | 39.80 |
| MFS5-65 | 26" pedestal mist fan
centrifugal
power
32L water tank,
last for 7 hours. 220-240V 50Hz300w speed: 1400rpm air delivery:230m3/min
total height: 1980mm | 56 | 135 | three box: tank:63X55X54cm 19kgs fan:74X74X55cm 23.5kgs pillar:142X17X12cm 9kgs total 0.5178cbm | 51.50 |
| MFB5-50 | 20" wall mounted mist fan
centrifugal power
With a 4L water tank directly connect to water supply 220-240V 50Hz 180w speed: 1350rpm air delivery: 170m3/min water supply pipe 3 meters long, diameter at 6mm | 136 | 355 | two boxes: tank:41X35X22cm 3.5kgs fan:58X58X49.5cm 16.5kgs total:0.198cbm | 20.0 |
| MFB5-65 | 26" wall mounted mist fan
centrifugal power
With a 4L water tank directly connect to water supply 220-240V 50Hz 300w speed: 1400rpm air delivery: 230m3/min water supply pipe 3 meters long, diameter at 6mm | 84 | 200 | two boxes: tank:41X35X22cm 3.5kgs fan:74X74X55cm 23.5kgs total:0.34657cbm | 27.0 |
Zhongshan Yongning Ventilation System Manufacture Co., Ltd was built in 1984. Which is a large enterprise specializing in producing "yonghua" brand ventilation equipments or OEM follow clients requirements...Based on the corporate spirit of unify and innovation for greater success, our company has achieved big development through thirty years of efforts. Now our company occupies a floor space of over 36, 000 square meters and a factory building area of over 23, 000 square meters. Most of the spare parts are made by ourselves, including motor, fan body, blade balance, powder coating and so on. We locate in Chinese famous Star Town---- Xiaolan Town, Zhongshan, Guangdong.
Propelled by the spirit of professionalism and perseverance for further growth, we are always pursuing good quality and achieve constant improvement. Our company is equipped with excellent production facilities and technicians. We have imported advanced equipment such as automatic assembling lines, painting facilities and high accuracy balance testing machines to ensure our products come up with international level.
Currently, we have over 500 types of products, including household exhaust fans, industrial stand/wall fans, industrial ventilating fans, axial and centrifugal blowers and more. Our business also covers the design, manufacturing and installation of diversified environmentally friendly ventilating equipment, including noise reduction and dust-removing equipment.
Many products of our company have successfully passed GS, CE, CB, SAA, S-MARK, and CCC approvals and we have built up a strong sales network across many countries. Our products are also exported to Europe, America, Africa, Australia and Middle & East Asia and Southeast Asia and favored by clients.
