| Prod Model: |
TLV-CD-RGB16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Type: |
Bright DIP346 LED |
| Color: |
RGB |
| Module Size: |
256X128mm |
| Module Pixel: |
16X8pixels |
| Brightness: |
7000CD/M2 |
| Working Voltage: |
5V DC |
| Power: |
18W |
| Protection: |
IP65 |
| Warranty: |
2years |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Pixel Pitch: |
16mm |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Certification: |
RoHS |
| Average Power Consumption: |
350W / m² |
| Pixel Density: |
27777pixels/M2 |
Product Description

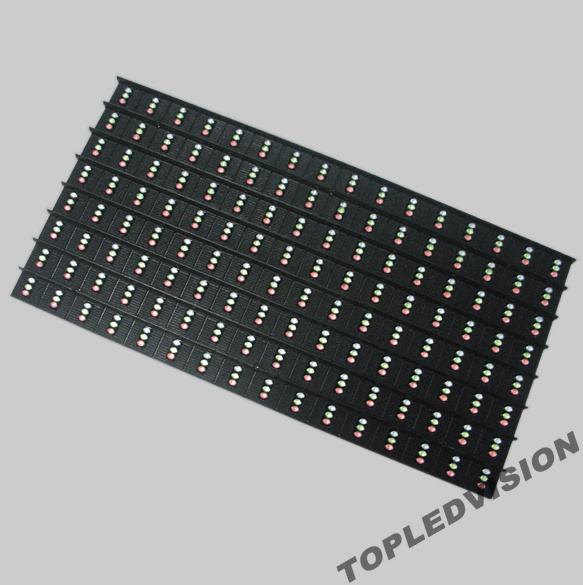

PH16 1R1G1B outdoor LED display screen is a good option for advertising, the screen with good reliability, high brightness, long working time and cost-effective, the P16 module with some features.
1.1R1G1B three LED lamps in line, the screen have a better color performance.
2. The driver chip on front of module. It have a good cooling for the driver chip and advoid the damage or affected by the outdoor environment.
3. Waterproof. The screen have IP65 ingressive grade in the front, can be used on any outdoor environment.
4. More than 7000CD/sq. M brightness, 3906pixels/sq. M high resolution and low power consumption(350W/sq. M).
5. Standard aluminum or iron cabinet design is more functional, thin, less weight and economical than normal type.
6. Standard module size designed and support most of normal screen cabinet.
7. Fast signal and power connection, you can complete the connection between modules in a short time.
8. Professional control system is easy for operation and keep the LED screen running safe and reliable.
9. Cost-effective
|
Pixel Pitch |
16mm |
|
LED Type |
346DIP LEDs |
|
Pixel Configuration |
1r1g1b in Line |
|
module size |
256x128mm |
|
modules pixel |
16x8pixels |
|
Resolution |
3906 Pixels/Sq. M |
|
Brightness |
> 7000CD/Sq. M |
|
Viewing Angle |
Horizontal: 120degree, Vertical: 55degree |
|
Input Voltage |
110V, 240V AC |
|
Protect Grade |
IP65 |
|
Cabinet Size (Wxhxd) |
1024mmx768mmx130mm |
|
Cabinet Weight |
40kg |
