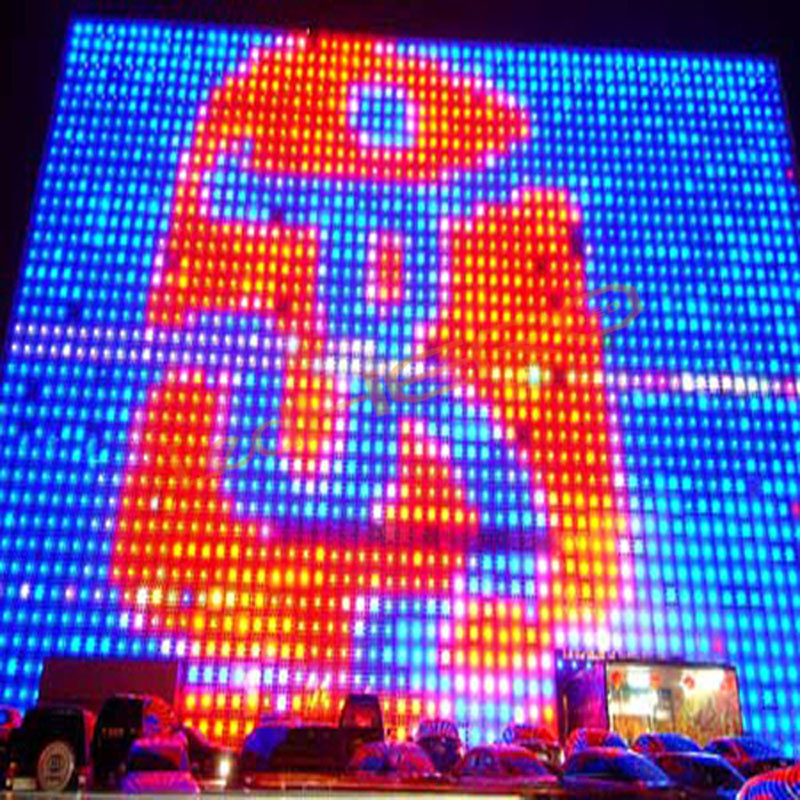

Outdoor LED Curtain Display for Advertisement

Prod Model:	p31.25
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lifespan:	100, 000 Hours
Warranty:	2 Years
Display Type:	LED Video Display
Tube Chip Color:	Full Color
IP Rating:	IP67
Pixel Configuration:	1R, 1G, 1B
Certification:	EMC
Display Function:	Video Display
Application:	Advertising
Scanning Mode:	Static Scan
Average Power Consumption:	600W / m²
Pixel Pitch:	31.25mm
Pixel Density:	1024dots/Sq.M

Product Description

outdoor led curtain display for advertisment

specification:

Part Number	HERO-IDS4F-8S
Resolution	32(H)×16(V)
Pixel Pitch	31.25mm
LED Configuration	1R1G1B 3-IN-1 SMD
Pixel Density	1,0000 pixels/ m2
Module Size	320*160mm
Driving IC	MBI5024
Driving Method	Static Scan, Constant Current
Cabinet Weight	42kg/sq.m.
Mechanical Ratings
Hanging Weight Support	2T
Surface Flatness	Gap<0.5mm
Optical Ratings
Brightness	>1,800cd/ m2
View Angle	150°/150°
Gray Scale	8bits input, correction with 14bits
Display COLOR	16.7M
Brightness Adjustment	0~100%
Power Supply
Operation Power	90~260V 50~60Hz
Max. Power Consumption	600W/ m2
Average Power Consumption	200W/ m2
Control System
Control Mode	Synchronous display with control PC by DVI
Frame Update Frequency	60~85Hz
Screen Refresh Frequency	300~1000Hz
Gamma Correction	-5.0~+5.0
Support Input	Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance	Ethernet cable<120m or Fiber Optic<10Km
Support VGA Mode	1024×768, 1280×1024, 1600×1200, 1920×1280
Brightness Correction	Pixel, Module, Cabinet
Environmental
Operating Temperature	-20°~+60°
Operating Humidity	10~95% RH
Operating Life	100,000hours
MTBF	5000hours
Protection Level	~
Out of Control Rate	<0.02%


Description:
1.Good visualization
Glassbased design allows the light to pass through the glass without any influence to the building structure around.Transparency of the glass screen can up to 85%.
2.Ultra-thin, and ultra-light.
The thick can up to 1cm, and the weight can up to 7kg/m2
High brightness, and high definition.
The brightness can up to 6500 cd/m2.
4.Easy and convenient maintenance.
It can be maintained from inside, safer and more convenient.
5.Saving lighting costs of the whole building.
Besides good advertising effect, LED glass display also helps lighting the glass wall, thus makes the glass wall more attractive and saving a lot lighting cost.
6.Wide use range.
Wherever the glass wall is, glass LED display can be installed. Such as bank, supermarket, theater, business street, hotel, public civic buildings, and landmark buildings, etc.

Applications:
Widely used in glass curtain wall places, such as banks, shopping malls, theaters, commercial streets, stores, hotels, municipal public buildings, landmarks and other advertising.


Packing and transportation

Professional packaging:wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Faultlessly solve your worries in the transportation.



About Hero

7-year's experience in LED screen, our factory has the ability of processing, researching and developing led display to ensure the prolificacy.A strict quality control process to make sure the led display screens is with high quality.

After-sale service
1) Warranty:
Free to solve the quality problems to ensure that equipment normal operation in the warranty period . At any time, we bear all the responsibility, when the problem is from the product itself.
2) Free maintenance:
Free warranty in the warranty period.
Only charge the cost of raw materials, provide spare parts and maintenance services for the lowest price after the warranty period.
3)quick response:
Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
4) Free support:
Through telephone or network to provide service support in real time, or with the help of a network for remote debugging support (software), to solve the problem.
