| Prod Model: |
P10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Programmable Card: |
3G/SD/U Disk/GPRS/GSM Wireless Control System |
| Working Temperature: |
-20° C~+80° C |
| High Resolution: |
3906dots/Sqm |
| Long Life Span: |
More Than 100000 Hours |
| Use Place: |
Stadiums\Securities Exchange\Advertisement etc |
| Delivery Time: |
3-8 Working Days |
| Support Input Signal: |
HDTV CATV NTSC PAL S-Video VGA VCD DVD |
| Interface: |
Network/Erial Port/50 Chip/Parallel RS 232/Solar P |
| Vivid Mixture Color Effect: |
2r1g1b |
| Diode Model: |
Silan/Nichia/CREE/Epistar/Opto |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
600W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
ETL |
Product Description

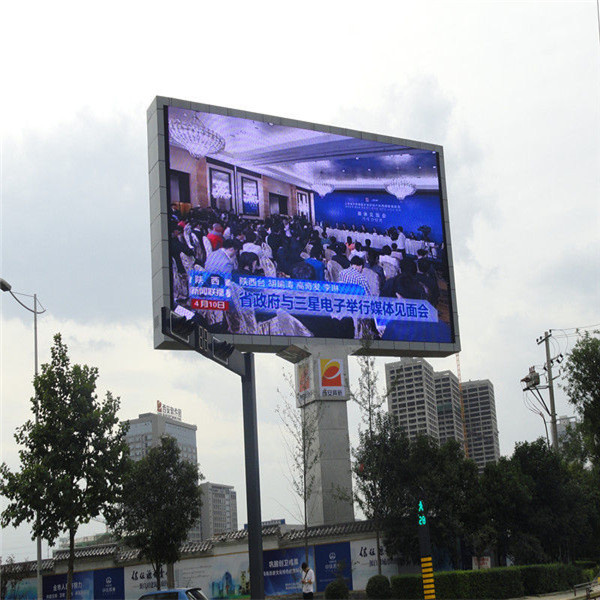

Utdoor High Resolution P10 Programmable LED Display Signs Panel Hot Products
Features: 1) With good lightening accordance and no mosaic2) Can play different formats of image files, flash, WAV/MIDI, video signal fromTV, video signal from video and other equipment3) Different video frequency can be changed freely at the same time, and the imagecan be enlarged and reduced4) High brightness, and can be adjustable, meets the need of changing requirementof customer in environment5) Uses real pixels rather than virtual pixels, better viewing effect
Function and technology character
1) Mutiplied file formates. Such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display models. VGA+VIDE AND VGA. There are also interface for sound signal and video signal.
2) 4096 grade grey control system and the color is over 16.7M colors and the brightness, contrast, saturation, chroma can be adjusted by manual, and sensor, whose scope is 256 grade.
3) Show all kinds of word, text, graph, picture, video, 2-Dimention, 3-Dimention cartoon and other information with you PC does synchronously
4)Line-Double technology is adopted for the picture adjustment
5) Can be connected with PC and the web net and show the content and also can be controlled remotely via VPM+ADSL
6) Can be used outdoor in all kinds of weather and excellent capability of antisepsis, waterproof
* Products function introduction: 1) High intensity and can be adjusted, so can meet the request of the customers according the application environment. 2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light 3) To pictures and character, have clear, exquisite and real display effect 4) Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion 5) Can repair each LED lamps, so the cost of maintain is lower, and easy to repair. * Products Advantages: 1) Price Advantage: We have the best competitive price at the market
2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each LED lamps 3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability. 4) Service advantage: Better service at same situation, better cooperation at same service!
* Products list and application area: 1) Full color LED display: Equally or compactly make the red, green, blue color in one DOT, equally distribute at the panel, so make the whole display 2) Usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment,
Main features:
Epistar and Silan brand LED chips, MBI5024 driver IC, Meanwell Power supply, all are famous brand materials
Vivid image and video, rich in describing the details of color
High brightness ≥ 1500 CD/m2, automatically brightness adjust to environment, IP65 and range working temperature design, can meet your indoor using request
Signal and power automatically timing function, automatically running
Remote control, error detection, control center management function, feedback the error by SMS
DOT-DOT correction function support
| P10 outdoor full color LED display tchnical specifications |
| Module size | 160*160mm |
| Pixel Pitch | 10mm |
| Density of Pixel | 10000dots/M2 |
| Pixel configuration | 1R1G1B |
| Size of Single Board | 160mm*160mm |
| Colors | 16777216 |
| Best Viewing Distance | ≥10m |
| Horizontal Viewing Angle | horizontal 120° |
| Maximum Power Consumption | ≤1100W/M2 |
| Brightness | 9000cd/M2 |
| Gray Scale | 14 bits per color |
| Color Temperature | 6500k |
| Control Method | to be synchronized with computer monitor |
| Driving method | Static |
| Frame Frequency | 60Hz |
| Refresh frequency | ≥480Hz |
| Working Voltage | AC220V/110V±10% |
| IP grade | IP65 |
| Working temperature | 10 degree centigrade +70 degree centigrade |
| Computer operation system | Win 98/ Win XP/ Win 2000/window 7 |
| Brightness adjustment | 256 grade manual, 8 grade automatic |
| Video signal | RF, S-Video, RGB, RGBHV, YUV, YC.ect |
| Software | LED play software |
| MTBF | More than 10000 hours |
| Life Span | 100,000 hours |
Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.
As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.
Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.
Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.
With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
