| Prod Model: |
SY-P10-4S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
Two Years Warranty After Shipping |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
FCC |
| Average Power Consumption: |
450W/M2 |
Product Description

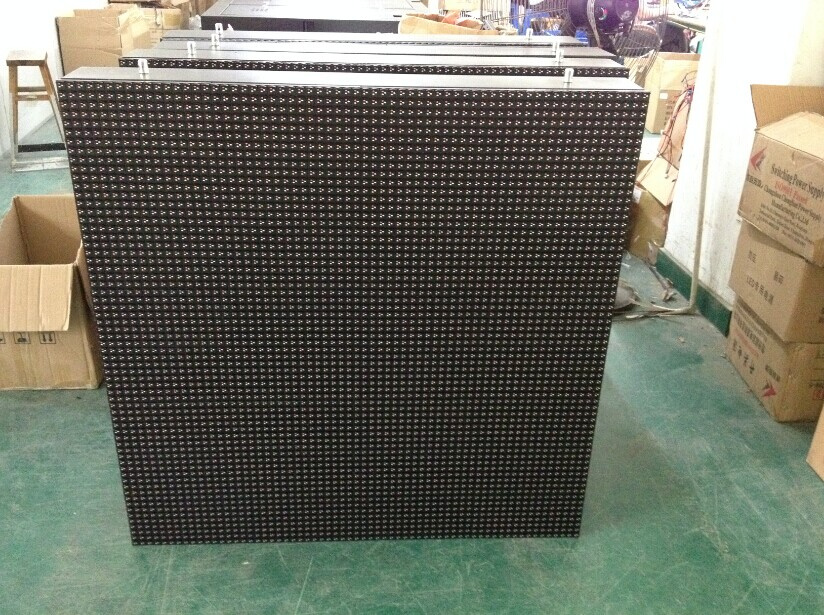

Outdoor High Bright P10 Full Color LED Display
1. Applications:
Our full color LED display are widely used in commercial advertising, entertainment industry, financial industry, communications, power sector, traffic, stadium, plaza, school, airport, bus station etc., for advertising and displaying messages.
2. High brightness:
We display support automatically or manually adjust the brightness of the LED display screen.
3. Good LED chip:
High strictly selected LED chips to ensure the long lifetime and high brightness of our LED display system.
4. Clear vivid image quality:
Throughout the show, the picture clear, bright color.
5. Installation is simple, easy to use:
Easy and simple installation interface and user friendly software to ensure that customers use easily.
| Outdoor High Bright P10 Full Color LED Display |
| S/N | Item | Technical Parameters |
| LED Parameters |
| 1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle |
| 2 | Red LED | DIP346 | 1000-1100mcd | 620-625nm | 110º/50º |
| 3 | Green LED | DIP346 | 2000-2200mcd | 520-525nm | 110º/50º |
| 4 | Blue LED | DIP346 | 400-600mcd | 470-475nm | 110º/50º |
| Module Specifications |
| 1 | Pixel Pitch | 10mm |
| 2 | Pixel Configuration | 1R1G1B |
| 3 | Module Resolution | 16 x 16 pixels |
| 4 | Module Pixles | 256 pixels |
| 5 | Module Size | 160mm X 160mm |
| Cabinet Specifications |

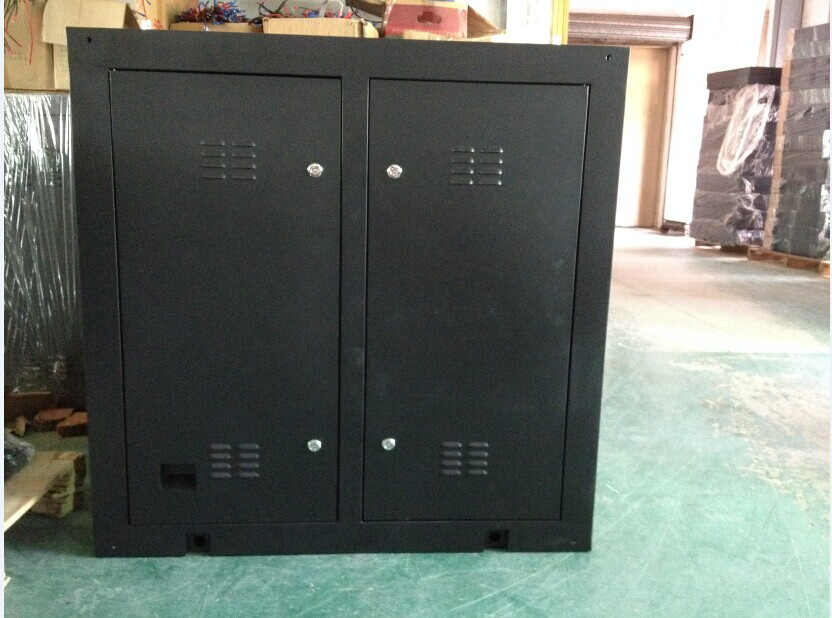

| 1 | Cabinet Size(W X H X D) | 960mm x 960mm x 155mm |
| 2 | Cabinet Resolution(dot) | 96 x 96 pixels |
| 3 | Module Quanity (pcs) | 36pcs |
| 4 | Cabinet Pixels | 9216 pixels |
| 5 | Pixel Density | 10000 pixels/m2 |
| 6 | Cabinet Materials | Iron or Aluminum |
| Whole Screen Specifications |
| 1 | Screen Brightness | ≥7500cd/m2 |
| 2 | Driving Method | 1/4 scan |
| 3 | Mini Viewing Distance | 10m |
| 4 | Max. Power Consumption | 750W/m2 |
| 5 | Average Power Consumption | 450W/m2 |
| 6 | Gray Level | 8bits input, 4096 levels(212) |
| 7 | Display Color | 16M |
| 8 | Frame Frequency | ≥60Hz |
| 9 | Refresh Frequency | ≥600Hz |
| 10 | Uninterrupted Working Hours | ≥72 hours |
| 11 | Screen Life-span | ≥100,000 hours |
| 12 | MTBF | ≥5,000 hours |
| 13 | Discrete Blind Spot Rate | <1/10000 |
| 14 | Continuous Blind Spot Rate | None |
| 15 | Blind Spot Rate | <1/10000 |
| 16 | Protective Scale | IP65 |
| 17 | Screen Plainness | <±1mm |
| 18 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| 19 | Environment Temperature & Humidity | Temperature:-20 Celsius~+60 Celsius
Humidity:10%~90% RH |
| 20 | Control Mode | Synchronous display with control PC by DVI |
| 21 | Control System | DVI video card + full color control card + fiber system( optional) |
| 22 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
| 23 | Interface | Standard Ethernet |
| 24 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |
Shenzhen Seny Technology Co., Ltd. is a professional manufacturer of LED display screens, located in Shenzhen of China, found in 2009.
We specializes in all types of LED display screens, including indoor and outdoor, mono color, bi-color, RGB full-color LED displays. As one of the professional LED Displays manufacturers in China, we combine design, production, technical support, marketing, installation and after-sales service together so as to meet the demands of market, make every client satisfied.
Our LED displays have been widely used in a variety of sites like railway station, bank, hospital, office building, outdoor advertising board, airport, post office, plaza and so on. They play an important role for enterprises' Spreading and service convenience, and become more and more popular in every corner of the world.
Wishing we can build up long-term and reliable business relationship in near future. Contact us today for more information!
