| Prod Model: |
XD-RGB-P10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| IP: |
65 |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
RoHS |
| Pixel Pitch: |
10mm |
| Scanning Mode: |
1/4 Scan |
| Pixel Density: |
10000 dot / m² |
Product Description
Our factory professionally manufacture the follow products
1)single color LED display module, dual color LED display module, full color LED display module.
2)indoor LED display, semi-outdoor LED display and outdoor LED display.
3)LED moving sign, variable message signs, LED text display, programmable LED moving message sign board.
4)LED display screen, LED display board, LED display module, LED display control system.
5)LED video display, LED advertising display, rental LED display, stadium LED display, concert LED display, stage LED display.
6)wireless control LED display board, computer control LED display.
Main features:
Epistar LED chips, MBI5024 driver IC, Power supply.
Vivid image and video, rich in describing the details of color
High brightness ≥ 7000 CD/m2, automatically brightness adjust to environment, IP65 and range working temperature design, can meet your indoor using request
Signal and power automatically timing function, automatically running
Remote control, error detection, control center management function, feedback the error by SMS
DOT-DOT correction function support
Products function introduction:
1) High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
3) To pictures and character, have clear, exquisite and real display effect
4) Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion
5) Can repair each LED lamps, so the cost of maintain is lower, and easy to repair.
Products advantages:
1) Price Advantage: We have the best competitive price at the market
2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each LED lamps
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4) Service advantage: Better service at same situation, better cooperation at same service!
Products list and application area:
1) Full color LED display: Equally or compactly make the red, green, blue color in one DOT, equally distribute at the panel, so make the whole display
2) Usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment

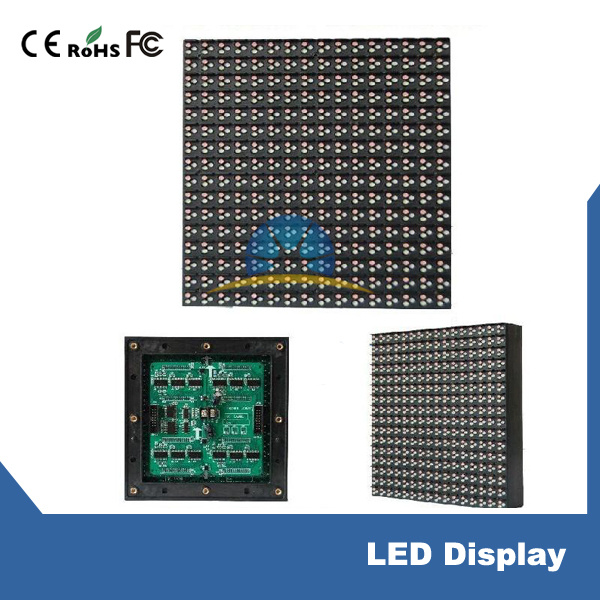

Module:P10
LED Type
DIP346
Pixel Pitch
10mm
Refresh frequency
1,500Hz
Module Size
160x160mm
View Angle
110 0 /75 0
Module resolution
16x16pixel
Working Environment
Temp:-20°C~60°C, Humidity:10%~90%
Dot density
10,000pixel/sq. m
Working Voltage
AC:100V~120V AC:220~240V
Pixel configuration
1R1G1B
Lifetime
100,000Hours
The best view distance
10-100M
Gray Scale
14bit/color
Cabinet dimension
960mmx960mm(Optional)
Color Display
1.07Billion
Cabinet resolution
96X96
Brightness
≥8000nit
Cabinet weight
60KG/sq. m
MITBF
0.00001
Drive mode
Constant current,1/4 Scan
IP
IP65
Max Power Consumption
800W/sq. m
Warranty
2 year
LED Parameter
R:d(625-630nm) R:IV(400-450mcd)
G:d(522.5-525nm) G:IV(1800-2200mcd)
B:d(467.5-470nm) B:IV(350-400mcd)
Image adjustment
Brightness, contrast, tone, color range etc
Brightness uniformity
Ratio of min pixel brightness /max pixel<0.9(When each color reaches its highest brightness)
Effective control distance
Cat 5<100M / Multi-mode fiber:<500M / Single-mode fiber<20Km
Color Temperature/contrast
Brightness and contrast of red, green and blue can be adjusted by software,100 scales are available, color temperature is adjustable
Input signal
RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPISITION
Control system
Sending card+Receiving card+Hub card+DVI Card+PCTV Non-liner card+Multi-functional card(Optional)+Video processor(Optional)+ Fiber Transmitter(Optional
