| Prod Model: |
P10 |
| Lead Time: |
10 Working Days |
| Factory: |
OEM, ODM |
| Service: |
Technology Training |
| Warranty: |
2 Years |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
300W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Certification: |
CCC |
| Application: |
Stage Performance, Advertising, Shopping Guide, Sh |
Product Description

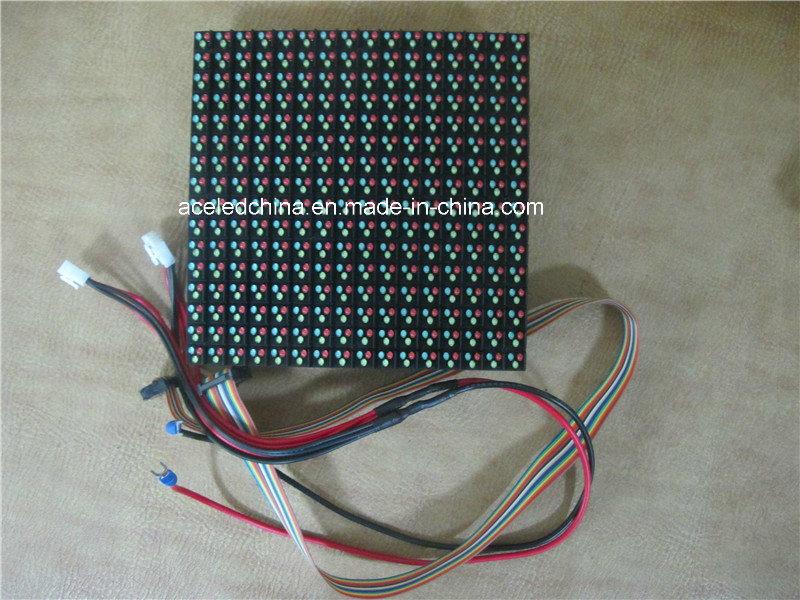

High Brightness Outdoor Full Color LED Display
Features:
1) Relatively low cost (factory)
2) Stable capability
3) High brightness, high definition of displaying image.
4) Easy installment and low maintenance cost
5) Good heat emission capability
6. Quality guarantee: CE, RoHS, FCC, IP65, ISO9001 + 100% testing before shipping.
Contact Us Now to know more: mobile: +86 13538127671
| PH10 Datasheet |
| No. | Item | Specification |
| 1 | Pixel Pitch | 10 mm |
| 2 | Chip of LED | Epistar |
| 3 | LED per pixel | DIP346 |
| 4 | Resolution | 10000 pixel/sqm (uniformly spread over the surface, to ensure homogeneity) |
| 5 | LED Number per/m² | 30000 |
| 6 | Single Module Dimension/Pixel(W x H) | 160mm x 160mm / (16dots * 16dots) |
| 7 | Single Cabinet Dimension/Pixel(W x H) | 1280mm ×960mm, 960mm * 960mm |
| 8 | Screen Dimension(W x H) | |
| 9 | Screen Surface Area | |
| 10 | Screen Graphic Definition | |
| 11 | Screen Configuration (W×H) | |
| 12 | Cabinet Material | Fixed Steel Cabinets |
| 13 | Single Cabinet Weight | |
| 14 | Driver IC | MBI5124 |
| 15 | Power Supply | Meanwel, Chuanglian |
| 16 | Optimal View Distancing | 10m |
| 17 | Vertical Viewing Angle | 120° (Standard LEDs Viewing Angle) |
| 18 | Horizontal Viewing Angle | 60° (Standard LEDs Viewing Angle) |
| 19 | Brightness | 7500cd/m² - 8000 cd/m² |
| 20 | Grey Scale | 14 bits |
| 21 | Contrast | 2000 |
| 22 | Operating Temperature | -30ºC~+60ºC , 20%~60%RH |
| 23 | Temperature Checkup | When the working temperature is over 70 ºC, the power supply will cut off the current automatically. There are also excessive current& voltage protection |
| 24 | LEDs Lifetime | >1,000,000 Hours |
| 25 | Warranty | 2 years |
| 26 | Input Voltage | AC220V±15% |
| 27 | Input Power Frequency | 50/60Hz |
| 28 | Screen Power Consumption | Max:≤650W/sqm ; Average: 180w/sqm |
| 29 | Refresh Rate | 1000Hz |
| 30 | Frame Rate | > 60 frames/sec |
| 31 | Defect Rate | ≤0.0002 |
| 32 | Water proof | IP65 |
| 33 | Control Method | Synchronized with computer monitor |
| 34 | Way of Drive | 1/4 constant driving |
| 35 | MTBF | > 100,000 hours |
| 36 | Color Temperature | 6500K±500 |
| 37 | Signal Interface | DVI |
| 38 | Source Compatibility | YPbPr, PAL/NTSC, S-Video, HDMI, VGA, HD_SDI |
| 39 | Control Distance | 120 m (CAT5, CAT6); Optical fiber transmission: 500m- 10km |
| 40 | Systems Operating Platform | WINDOWS(WIN95,WIN98,WIN2000, WINXP), with a friendly UI, and interfaces for secondary development. |
Application Case:
Widely used for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, indoor stadium, and a variety of public facilities and etc.
Trade Terms:
1. Package: anti-shaking wooden package, air flight case or carton package.
2. Payment: T/T, 30% deposit before production, 70% balance to be paid before delivery.
3. Free to support and train your operator.
4. Shipping port: Shenzhen, Mainland China.
5. Warranty time: 2 year
6. Delivery time: 15 working days.
Our Service
1. Guarantee
(1) We guarantee all our displays, modules, parts for two full year. During this time, we will replace or remand our goods for free if there is something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
3. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other experts' suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation.
4. Additional service
(1) We provide you the some other information such as flight box, structure information for your reference for free.
