| Prod Model: |
p16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
| Pixel Pitch: |
16 |
| Average Power Consumption: |
350W/M2 |
| Pixel Density: |
3906dots/M2 |
Product Description
HTSLED outdoor full color led display cabinet-It is designed fixed installation led display for customers.
Alternative to 10mm aluminum and Iron cabient.
P10
It can be widely used in a variety of outdoor
As a high maturity conventional products on the market, excellent properties for our products.
Features:
1, Reasonable structure design, can be completes fast fixed installation.
2, After waterproof test all the cabinets can ensure waterproof properties.
3, The cabinet upper and lower with positioning holes and positioning column.
4, Independent rear cover and lock design, both moisture-proof, dustproof, and can facilitate fast debugging and maintenance cabinet.,

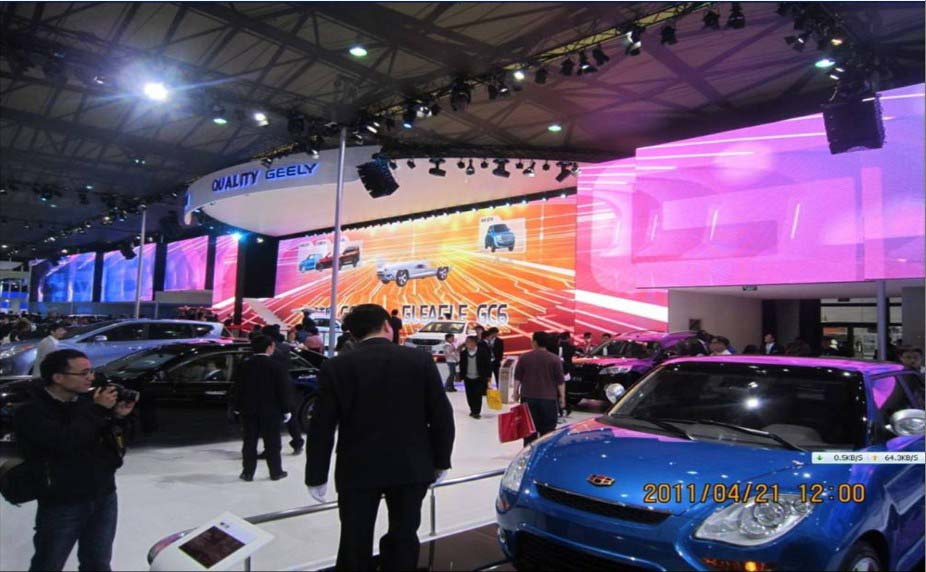

5, The led display is designed with high-quality lamps, even if under the intense sunlight, still be able to show a clear image and picture, were the outdoor advertising, the outdoor stadium, a large Plaza ideal choice.
| Model | P10 |
| Pixel pitch | 10mm |
| Pixel configuration | 1R1G1B |
| LEDtype | DIP346 |
| Module size | 160x160mm |
| Module resolution | 16x16 |
| Cabinet resolution | 64x64 |
| Cabinet size | 640x640mm |
| Density | 10000dots per square meter |
| Brightness | 6500 NIT |
| Scan method | 1/4 |
| Best view distance | ≥10m |
| Max. power consumption | 850W/panel |
| Ave. power consumption | 420W/panel |
| Cabinet Weight | ≤24Kg |
| Grey scale | 8192 step |
| Color | 6.87billion |
| Refresh rate | ≥960Hz |
| Best view | Vertical 50°Horizontal 120° |
| Brightness adjustment | 256 level |
| Frame frequency | ≥60Hz |
| Out of control pixel rate | <1/10000 |
| MTBF | >5000 hours |
| Lifespan | 50000 hours |
| Signal input source | Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI |
| Working voltage | AC 110/220v 50-60Hz |
| Control distance | Ethernet cable: 100m, Multi-mode optical fiber: 500m, Singel-mode optical fiber: 20km |
| Operation temperature | -20 to +40 |
| Working humidity | 10% to 80% |
| Protection level | IP65 |
