| Prod Model: |
P6.33 outdoor die casting led display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Time: |
Within 7 Days |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
ETL |
| Display Function: |
Video Display |
| Scanning Mode: |
1/4 Scan |
| Average Power Consumption: |
600W / m² |
| Pixel Pitch: |
6.25mm |
| Application: |
Rental |
| Pixel Density: |
25600 |
Product Description

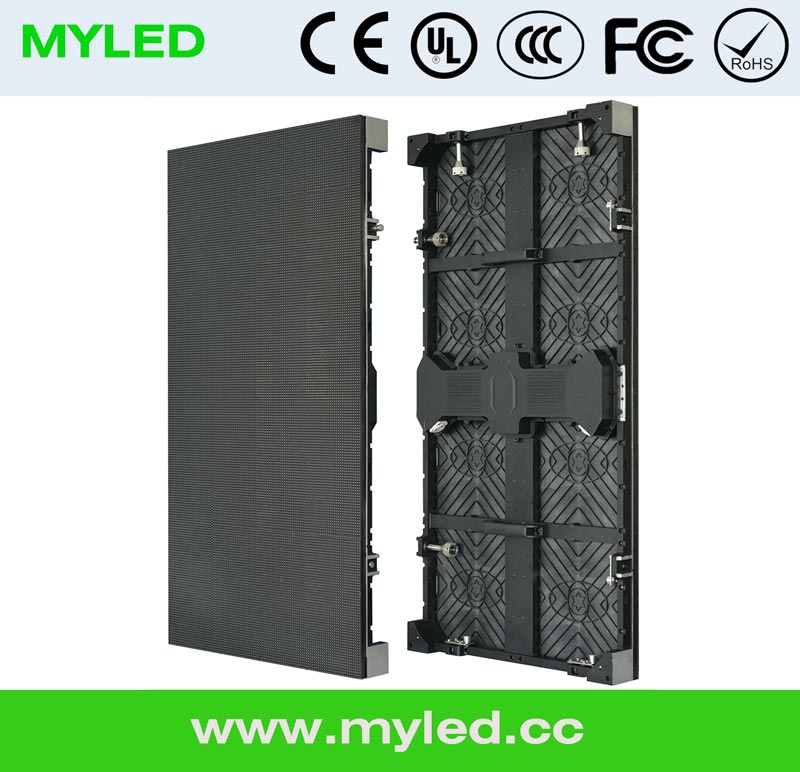

Rental Die-cast Aluminum LED Display
Model available: P3.91, P4.81, P6.25, P7.81;
Features: Free Radian Conjunction;
Ultra-Thin: 77mm thickness ;
High brightness: 5500nits, SMD3535
Light weight: 11kg / panel;
Status indicator and noiseless design;
Strengthening Ribs;
Easy to assembles with fast locks;
Easy uninstalling and transportation.
Speciation |
Rental Die-Cast aluminum LED display |
Pixel pitch |
P3.91 |
P4.81 |
P6.25 |
P7.81 |
mm |
Brightness |
≥1000 |
≥1200 |
≥5000 |
≥5000 |
nit |
Cabinet size |
500*1000*77 |
500*1000*77 |
500*1000*77 |
500*1000*77 |
Mm |
Cabinet material |
Die-cast aluminum |
Die-cast aluminum |
Die-cast aluminum |
Die-cast aluminum |
-- |
Cabinet weight |
11 |
11 |
12 |
12 |
Kg/panel |
Service back |
back |
back |
back |
back |
Back |
Pixel configuration |
SMD2020 |
SMD2020 |
SMD3535 |
SMD3535 |
--- |
Cabinet resolution |
128*256 |
104*208 |
80*160 |
64*128 |
Pixels |
Refresh rate |
≥1200 |
≥1200 |
≥2000 |
≥2000 |
Hz |
Gray Grade |
14-16 bit |
14-16 bit |
14-16 bit |
14-16 bit |
Level |
Viewing angle |
140H/140V |
140H/140V |
140H/140V |
140H/140V |
Degree |
Protection grade |
IP31 |
IP31 |
IP65/IP54 |
IP65/IP54 |
-- |
Max/Average Power |
600/200 |
580/195 |
750/250 |
750/250 |
W/sqm |
