| Prod Model: |
Optical Imaging Touch Screen |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Automatic Grade: |
Automatic |
Product Description
1. Characteristics

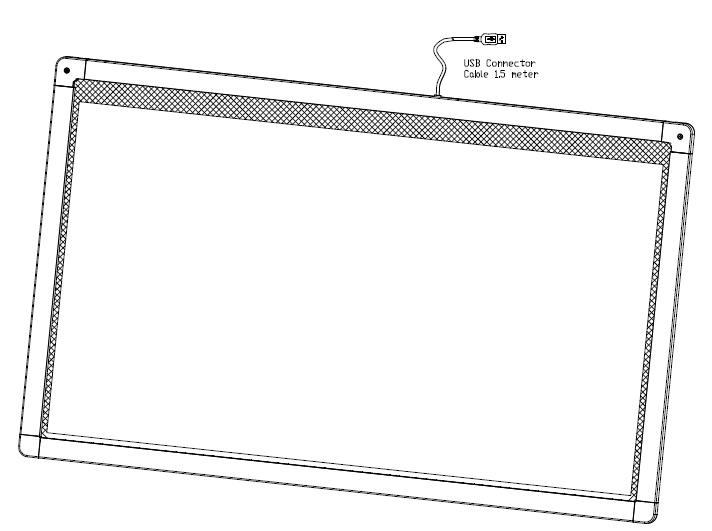

C42H04U-02-00 is an Optical Imaging touch screen of high precision for 42 inch display device with the resolution of 32768x32768.
C42H04U-02-00 supports single-touch and the function of multi-point touch gesture recognition.
Glass Specifications
1) Thickness: 4mm;
2) Tempered Glassand and black silk;
3) The glass surface will not is scratched, evenness at 0.3% the following;
4) Angle required chamfer grinding 0.30mm, in order not to cut hand;
5) Silk screen printing part of the surface without point, transparent points, reprinted points;
6) RoHS compliant.
|
Contourdimension |
1004± 1 (W) X 613.5± 1(D) X 15.65± 1(H) mm |
|
Active TouchArea |
934.8± 1(W)X529.8± 1(D) mm |
|
Frame Material |
Aluminum alloy |
|
Appearance Color |
Standard: black |
|
R esponse Time |
< 10ms |
|
R esolutionNohplay |
32768(W)× 32768 (D) |
|
Output form |
Coordinateoutput |
|
Input Method |
Finger, glovedhand, or opaque object |
|
Minimum TouchObject |
Φ 5mm |
|
T o uch Accuracy |
± 2mm(over 90% Area) |
|
T o uch Times |
Unlimited |
|
Interfaces |
USB |
|
Cable length |
1.5meter |
|
P o w er supply |
< 1W |
USB |
Connectortype |
USB A Type |
Communication
Interface |
USB 2.0 |
|
P o w er Supply |
Power supplyfrom USB |
T emperature Range |
OperatingRange: : -10º C-70º C |
|
Storage Range: : -40º C-85º C |
Humidity |
OperatingRange: 0%-85%RH(non-condensing) |
Storage Range: 0%-95%RH(non-condensing) |
E S D |
contact discharge voltage is 8KV, airdischarge voltage is 15KV |
Firmware Update |
SupportUSB Update |
T o uchType |
single touch, multi-pointtouch gesture recognition |
SupportedOperating
S y st ems |
Windows XP/Windows2000/Windows 2003/Windows7/Vista/Linux etc. |
