| Prod Model: |
BG-15-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Materials: |
SUS304-2b, SUS 316L, SUS 316 or Option |
| Capacity: |
150L, or Optional |
| Electric Heater: |
1500W, 2000W Optional |
| Export Packing: |
Cartons with Foam |
| Outer Material: |
SUS201/ SUS202 Steel |
| Angle: |
27'-45' |
| Max. Capacity: |
100-200L |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Bracket |
| Certification: |
CCC |
Product Description
Specifications,
Solar Water Heating System
.Unpressurized solar water heating system
.Certification:CE, ISO9001
.5-15 years warranty
.OEM

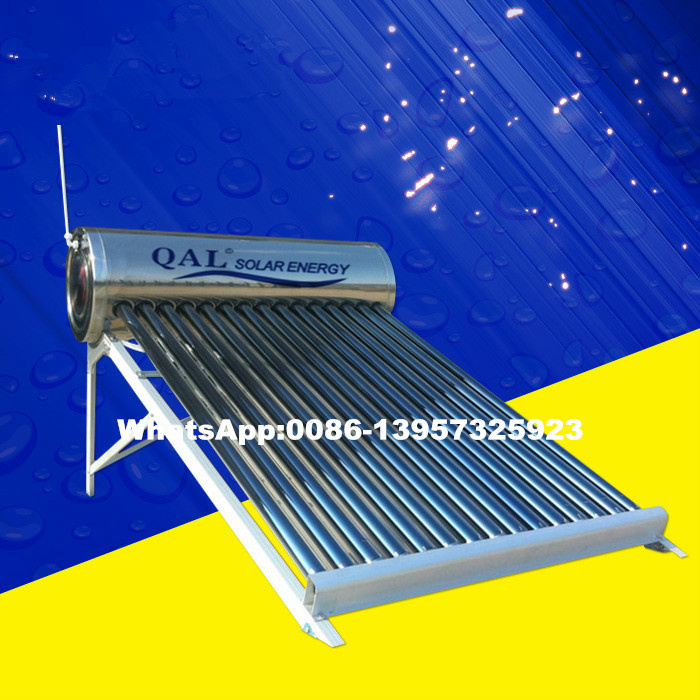

Solar water heating system details
Model: BG-15-1
How solar water heating systemworks,
1. Solar water heating system of all glass evacuated tube collector integrated with storage tank, are ideal for use in houses and other applications where cheap, reliable hot water supply is required. They are simple, economic and practical.
2. As the specific gravities of hot water and cold water are different, cold water goes downward and hot water goes upward.
3. When cold water in evacuated tubes is heated, it becaomes lighter and goes to the water tank, while cold water in the tank goes down to the evacuated tubes.
4. Through this circulation, the cold water in the solar water heating system tank will be gradually heated.
Solar water heating system features,
1. Cheap and reliable solution, Simple structure, Easy installation
2. High efficiency
3. Withstands water pressure no more than 0.1MPa
4. Operated without any power supplying
5. Electric heater can be used as back up in rainy days
6. Hot water can be used directly, or can be used as a pre-heated
Solar water heating system optional accessories,
1. Assistant tank: 3/5/8/10/12/15/20L
2. Controller
3. Electrical heater: 1.5/2/2.5kw
System information,
1.Storage tank diameter(mm):360/460
2.Electric heater connection(inch):1/4,3/4,1,1-1/4
3.Thickness,insulation(mm):50
4.Vent connection(inch):1/2
5.Water connections(inch):1/2
6.Collector angle(degree):25/38/45
Description | Stainless steel Solar Water Heater |
| Material of out tank | 0.4mm SUS202/SUS304 stainless steel |
| Material of inner tank | Food grade 0.4mm thickness SUS304 stainless steel |
| Tank insulating layer | 55mm 45kg/m³ high-density polyurethane foamed |
| Inlet and outlet hole | Male G 1/2, 3/4 |
| Max pressure | 0.05 Mpa |
| Solar collector tube | 3.3 Borosilicate glass with N/Al coating |
| Thickness of glass tube | 1.6mm |
| Vacuum tube tightness | P≤0.005 Pa |
| Absorption | as=0.93-0.96 (AM1.5) |
| Emission ratio | εh=0.04-0.06 (80C±5C) |
| Idle sunning property parameters | Y=220~260m2.C/KW |
| Average heat loss coefficient | ULT=0.6~0.7W/(m2.C) |
| Bracket: | 1.4mm thickness,7cm width SUS201/SUS202 stainless steel |
| Structure of tank | 5 holes for air vent,overflow,water inlet and outlet,electric heater |
| Welding: | Argon arc welding |
| Fastening pieces: | Made of stainless steel screw |
| Absorber area | 1.875m² |
| Tube quantity | 15tube 58x1,800mm |
| Tank capacity | 150L |
From its early beginnings in 2000 Redao (originally called Alinsidun Technologies) is a designer and manufaturer of solar water heating prodcts in China. All of our products are designed to ensure robust performance over a long lifespan. All Redao products are complied with CE, ISO9001-2008.
With our dedicated and experienced team, our specialised manufacturing base, as well as the continued focus on technical solutions and customer service, we are sure that Redao will remain the supplier of choice for many throughout the coming years.
Redao strives to maximize production outputs and quality using the very lastest in manufacturing techniques, and uses equipment with proven reliability and the flexibility to adapt to fast changing requirements of customers. If you are interested in Redao water heater system, please feel free to call us.
