| Prod Model: |
CPT-05 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Steel |
| Scale: |
Heavy Duty |
| Load Capacity: |
1500kg |
| Certification: |
CE |
| Type: |
Semi-Trailer |
Product Description

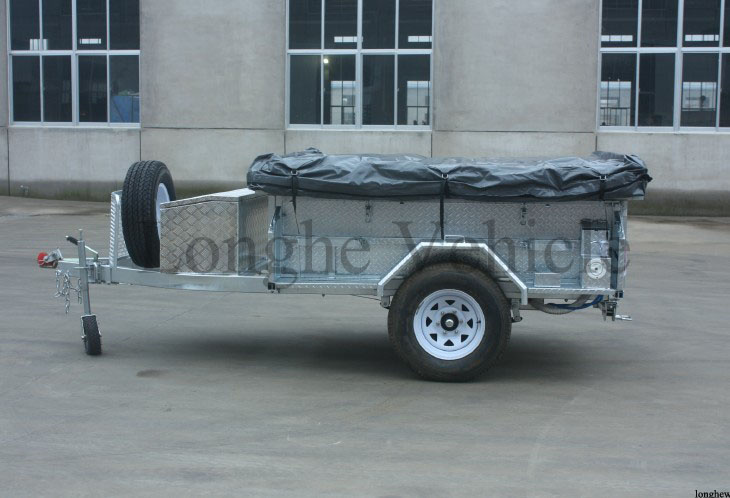

7*4ft powder coated checker plate off road camper trailer CPT-05
Trailer features:
1. Trailer size: 7ft x 4ft (2180mm X 1280mm)
2. Steel checker plate camper trailer could be both powder coated or hot dipped galvanized
3. Trailer GVM: 750kg
4. Trailer total weight: 510kg
Shipping quantity of CPT-05:
20FT container: 5 half-built trailers (No tents)
20FT container: 5 half-built trailers + 5 tents (With tents, with welded drawbars)
40HQ container: 12 half-built trailers (No tents)
40HQ container: 11 half-built trailers + 11 tents (With tents, with welded drawbars)
Options:
1. Powder coated surface treatment as standard, with an option of hot-dipped galvanized surface treatment.
2.50mm ball coupler as standard, with options of 360 degree orac type hitch or 360 degree treg poly block hitch.
3. Powder coated kitchen as standard, with an option of stainless steel kitchen at extra cost.
Advantages of trailers:
1. Powder coated checker plated trailers: Strong, beautiful and anti-rust.
2. Good welding and good pop rivet to ensure the strength of trailers
3. Equipped with improved plastic water filler which is more popular among customers.
4. Good craftsmanship to ensure customer friendly trailers are supplied.
|
Model No |
Container Loading quantity |
|
CPT-05 |
20'ft container |
40'HQ container |
|
5-6 sets of camper trailerswith tents |
11-14 sets of camper trailers with tents |
|
Dimension: 7X4FTx500mm box deep ; ATM:1500KGS ; Tare Mass: 510kg |
|
More Details |
|
Material |
Drawbar tube size:100x50x4mm |
|
Full 50x50x2.5mm SHS chassis and cross beams |
|
Checkerplate floor, Checkerplate tailgate, Checkerplate mudguards, Checkerplate large sidestep; Checker plate thickness: 2.5mm |
|
Coupler & Jockey wheel |
2000kg Australian standard 50mm quick release coupling. |
|
Safty chain with Austraila numbers |
|
Quality pneumatic swing up jockey wheel |
|
Axle, Spring, brake and wheels |
45mm solid round axle, 10" drum hub with heavy duty Ford bearing (LM), 6 stud Landcruiser pattern |
|
7- leaf off road design springs eye to eye, center distance between eye to eye: 700mm, width of the leaf springs: 45mm |
|
10" electric brake with hand brake |
|
3 brand new off road 15" wheel and tires |
|
Accessories |
3 Jerry can holders, 1 gas bottle holders |
|
Powder coated stone guard |
|
Steel checker plate powder coated tool box size is 1180X500X500mm |
|
70 ltr stainless steel water tank with electric pump |
|
Steel powder coated kitchen set with stainless steel sink (14cm deep) with drainer and hose |
|
Note that the gas stove/burner, gas bottle or jerry can are excluded. |
|
RC-CPT-05 is 7x4ft heavy duty off road soft floor camper trailer , camping trailer, travel trailer , tent trailer made of 2.5mm steel checker plate, it could be both powder coated and hot dipped galvanized according to customers' requests. |
Rongcheng Longhe Vehicle Co. Ltd ( old name: Rongcheng longhe Metal Processing Plant) is located in the urban district of Rongcheng City, close to Weihai, Yantai and Qingdao Harbor, and 15km away from Weihai International Airport.
Founded in 2000, it is a private owned enterprise. Now the Plant has more than 150 employees, among them, more than 90 are technical personnel. The Plant is well equipped with various machinery processing equipment, such as milling, planning, drilling, punching, shearing and folding machines, and 45 units of welding machines as well. Equipped with good facilities and advanced technical backup, the Plant has been engaged in the casting, rivet welding, various kinds of processing of metal products. Our main manufacturing and exporting products include big Caravan, Camper Trailer, ATV trailers, cargo/box trailers, fiberglass enclosed trailers, boat trailers, folded and aired type boat trailers (our patent product), steel floating docks (our patent product), and various trailer accessories. Thereinto, we have passed CE certificate.
And the products are exported to more than 10 countries, such as the United States, Germany, Sweden, Australia, New Zealand, Britain, etc.
