| Prod Model: |
LWX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Floor Standing: |
Highly Compressor |
| 18000-24000BTU: |
Classic Type |
| Big Capacity: |
Popular Type |
| Floor Standing.: |
SKD or CKD |
| Type: |

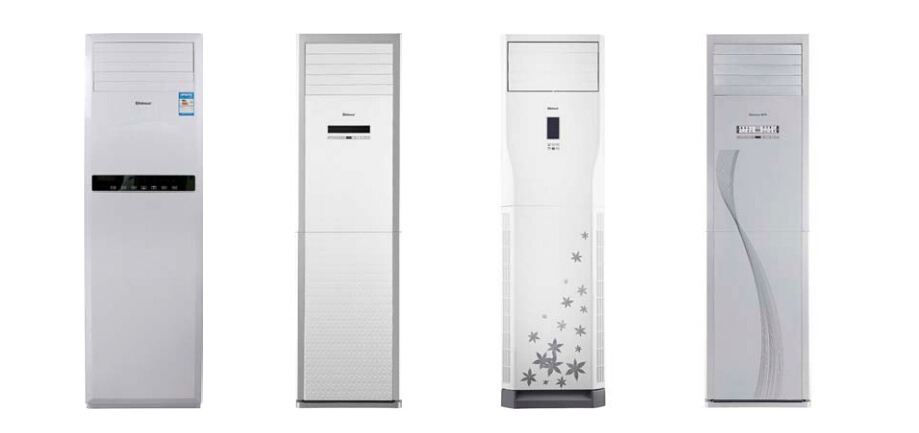

Floor Standing Air Conditioners |
| Capacity: |
18000-24000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
>50dB |
| Certification: |
BEB |
| China Energy Efficiency Standard: |
Level 2 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
DC |
| Condition: |
New |
Product Description
Product Specification
Cooling Capacity: BTU/h18000~24000 5300~6000W
Thermostat Range - C 16-30
Dehumdification - Max - L/day40~50
Fan Speed - 3
Air Flow (at high speed) - m3/h1100~750
Power Supply - V220-240
Power Consumption - W1980~2650
Current - A9.2~12.8
Refrigerant - R22
NOISE LEVEL dB(A) (OUTDOOR) -56~58
| Model |
| SFCQ-H18C0 | SFCQ-H24C0 | SFCQ-H41C0 |
| Power supply | Ph*V*Hz | 220,50 | 220,50 | 3,380~415,50 |
| Cooling | Capacity | Btu/h | 17060 | 23884 | 40944 |
| Input | W | 1630 | 2300 | 3980 |
| Rated current | A | 7.5 | 10.5 | 7.3 |
| EER | Btu/w.h,W/W | 3.03 | 3.03 | 3.01 |
| Heating | Capacity | Btu/h | 18766 | 26511 | 45038 |
| Input | W | 1630 | 2215W | 3850 |
| Rated current | A | 7.4 | 10.9 | 7.2 |
| COP | W/W | 3.23 | 3.23 | 3.24 |
| Max. input consumption | W | 1974 | 3105 | 5580 |
| Max. current | A | 8.25 | 13.65 | 8 |
| Compressor | Type | / | Rotary | Rotary | scroll |
| Brand | / | GMCC | GMCC | SANYO |
| Indoor noise level (Hi/Mi/Lo) | dB(A) | 44 | 52 | 55 |
| Indoor unit | Dimension (W×H×D) | mm | 1730×484×297 | 1730×504×316 | 1900×600×375 |
| Packing (W×H×D) | mm | 1835×565×365 | 1835×565×365 | 1985×690×460 |
| Net/Gross weight | Kg | 35 | 52 | 66 |
| Outdoor unit | Dimension(W×H×D) | mm | 863×308×733(W7) | 842×350×810(W13) | 950×350×1230 |
| Packing (W×H×D) | mm | 1000×435×820 | 1090×470×900 | 1170×500×1370 |
| Net/Gross weight | Kg | 52/56 | 65/70 | 101 |
| Refrigerant type | g | R22, 1800 | R22, 2500 | R22, 3500g |
| Refrigerant Piping | Liquid side/ Gas side | mm(inch) | 6.35/12.7 | 6.35/15.88 | Φ19.05/Φ9.52 |
| Max. refrigerant pipe length | m | / | / | 3 |
| Max. difference in level | m | / | / | / |
| Operation temp | ºC | 16~30 | 16~30 | 16~30 |
| Ambient temp | ºC | -7~48 | -7~48 | -7~48 |
| Application area | m2 | 42~45 | 48~53 | 80~90 |
| Loading Capacity (20/40'/40' HC) | Pieces | 40/84/94 | 35/72/83 | 16/35/40 |
About us
Changzhou Fengrun Import and Export Co., Ltd. is a professional manufacturer of evaporator & condenser for air-conditioner and refrigerator; Steel tube and other cooling system products.
Currently Fengrun has 22 production lines for evaporator & condenser of air-conditioner, the annual production cpacity is able to reach 4 million PCS, which is the largest production base in China. Under this condition, Fengrun also owns a rollbond workshop with annual capacity 3.5 million PCS, a wire on tube condenser workshop with annual capacity 2.5 million PCS, a wire on tube evaporator workshop with annual capacity 2.0 million PCS, a no-frost(fin type) evaporator workshop with annual capacity 1.0 million PCS.
Otherwise, Fengrun owns a workshop which produces steel tube 30 thousand ton per year and also has sone equipments which can produce copper products such as three-way, three-claw, elbows 3 million PCS and Cu-AL connecting tubes 600 thousand PCS per month.
Changzhou Fengrun Import and Export Co., Ltd. is a professional manufacturer of evaporator & condenser for air-conditioner and refrigerator; Steel tube and other cooling system products.
Currently Fengrun has 22 production lines for evaporator & condenser of air-conditioner, the annual production cpacity is able to reach 4 million PCS, which is the largest production base in China. Under this condition, Fengrun also owns a rollbond workshop with annual capacity 3.5 million PCS, a wire on tube condenser workshop with annual capacity 2.5 million PCS, a wire on tube evaporator workshop with annual capacity 2.0 million PCS, a no-frost(fin type) evaporator workshop with annual capacity 1.0 million PCS.
Otherwise, Fengrun owns a workshop which produces steel tube 30 thousand ton per year and also has sone equipments which can produce copper products such as three-way, three-claw, elbows 3 million PCS and Cu-AL connecting tubes 600 thousand PCS per month.
