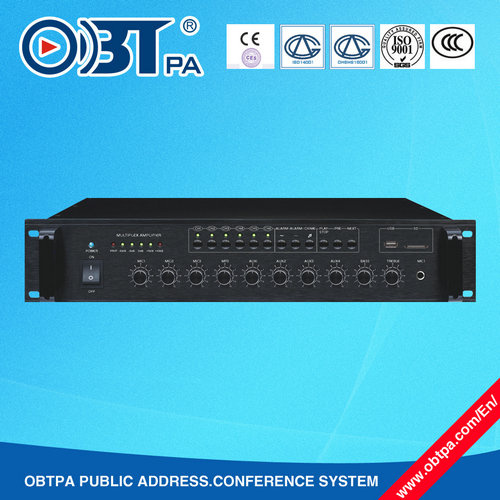

Obtpa 70V 100V Audio Power Amplifier PA System Power Amplifier

Prod Model:	OBT-D6156
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Supply:	AC220V
Rated Power Output:	90W/150W/250W/350W/450W/550W/650W
Speaker Outputs:	70V, 100V & 4~16ohm
Frequency Response:	50Hz~16kHz(+1db, -3db)
S/N Ratio:	Mic 1, 2, 3: 66db; Aux 1, 2: 80db
Muting Function:	Mic 1 Overrides Other Input Signals
Protection:	Over Heat, Over Load & Short Circuit
Dimensions:	525×525×170mm
Material:	Black Aluminum Panel, SPCC Cold Rolled Chassis
Function:	Amplifier Combined
Voltage:	AC 220V
Element Number:	Monoamplifier
Output Number:	1
Used For:	Civilian
Conductive Mode:	A
Tube Type:	Transistor Amplifier
Type:	Public Address Amplifier
Usage:	Public Address Amplifier

Product Description

OBTPA 70v 100v audio power amplifier pa system power amplifier

Application:
Integrated Amplifier with five power division outputs;
To provide amplified signals for regional PAS, suitable for large,medium,small PAS and still needs power partition

Features:

2U standard 19-inch industrial chassis, ergonomic design, sophisticated technology, filling with the high-grade temperament;
Touchable button operation, digital display the volume and radio frequency;
1 channel of microphone input, 1 USB and SD card MP3 inputs, 2 microphone, two lines of audio inputs;
Forcibly cutting priority function, Mic 1 has the highest priority, the other channels have second priorities;
2 channels of Mic Line Inputs (sensitivity of MIC2/MIC3 channel line input is 775mv);
Support radio, MP3 data formats and audio line play;
amplifier output comes with five partitions, you can select the partition state
The device has a good short circuit, overheat, overload automatic detect and protect function, the indicator will light to warm, warning buzzer will ring to alarm;
2 kinds of power output modes: constant voltage output 100V, 70V and constant resistance output 4~16Ω.,5 partition output modes: constant voltage output 100V

Technical parameters:

Model	OBT-D6095		OBT-D6155	OBT-D6255	OBT-D6355	OBT-D6455		OBT-D6555		OBT-D6655
Rated Power Output	90W		150W	250W	350W	450W		550W		650W
Speaker Outputs	70V, 100V & 4~16Ω
Input Sensitivity & Impedance	MIC 1, 2, 3: 5mV/600Ω
	MIC 2, 3 Line Input: 775mV/10KΩ, Unbalanced RCA Screw Input
	AUX 1, 2,3,4: 350mV/10KΩ, Unbalanced RCA Screw Input
Output Sensitivity & Impedance	MIX OUT: 1000mV/470Ω, Unbalanced RCA Screw Output
Overload source electromotive force	MIC 1, 2, 3: >12dB, Unbalanced Screw Input
	MIC 2, 3 Line Input: >12dB, Unbalanced RCA Screw Input
	AUX 1,2,3,4: >20dB, Unbalanced RCA Screw Input
	MP3: >20dB, Unbalanced Input
	EMC: >12dB, Unbalanced DG7.62 Screw Input
Tone	Bass:±10dB at 100Hz
	Treble:±10dB at 10KHz
Frequency Response	50Hz~16KHz(+1dB, -3dB)
S/N Ratio	MIC 1, 2, 3: 66dB; AUX 1, 2: 80dB
THD	1KHz 0.5%, 1/3 Output Power Consumption
Muting Function	MIC 1 overrides other input signals
	0-30 dB adjustable
Crosstalk	≤50dB
Cooling	Forced air from front to rear, start built-in fan when radiator temperature reaches 45 degrees
Protection	Over heat, over load & short circuit
Power Supply	AC220V/50Hz
Power Consumption	160W	260W		450W	700W	950W	1200W		1600W
Weight	11KG	11.12Kg		11.85Kg	13.73Kg	17Kg	17.56Kg		19.6Kg
Dimensions	525×525×170mm
Material	Black aluminum panel, SPCC cold rolled chassis




Lead time
Sample: In stock
Mass production: 5 working days

Service:
Good Service:
1. Professional sales reply you enquiry in 24Hrs
2. Feedback of complaint in 24Hrs
3. OEM/ODM are welcomed
4. 2 years Warranty

Warranty:
1. All products have been strictly Quality Checked before packing.
2. All products have been well packed before shipping.
3. All products with 2 years warranty.

After Sales Service:
1. We are always online to solve all your request.
2. Any faulty product, we can send replacement to you freely
3. To ensure your receive the order tax free upon import, we are willing to declare lower value.

We are the Manufacturer of pa system for 13 years. Also provide ceiling speaker, horn speaker, column speaker, wall mounted speaker, volume controller, ip network poe speaker, amplifer and other accesories.

Warmly welcome your  inquiry to know more about our product.
