| Prod Model: |
FR-M4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Touch-Screen |
| ID Card Capacity: |
3,000 |
| Record Capacity: |
100,000 |
| Display: |
2.4 Inches HD LCD Screen |
| Recognition Way: |
1:N 1:1 |
| Communication: |
U Disk, USB, RS485, TCP/IP |
| Identification Way: |
Fingerprint, ID Card, Password |
| Suggestion Of Installing Distance: |
140-150cm |
| Power Supply: |
DC 12V |
| Verification Speed: |
≤0.5 Sec |
Product Description

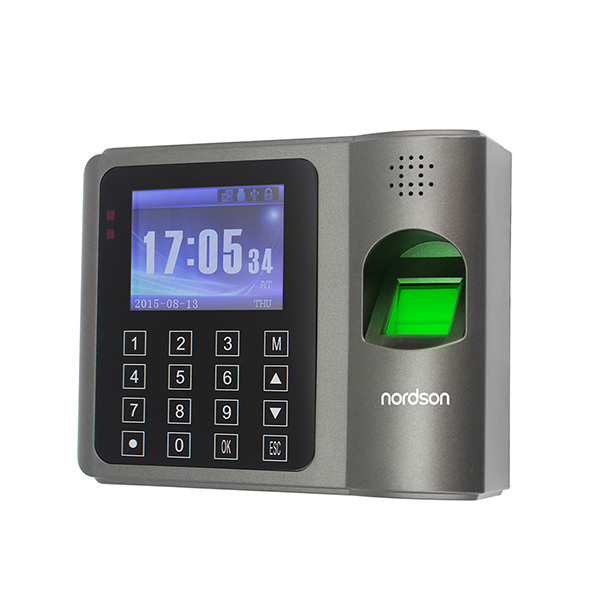

Nordson Touch-Screen Biometric Access Control FR-M4
FR-M4 Network Touch-Screen Fingerprint access control terminal, quickly and accurately read the fingerprint data, high image quality optical fingerprint reader can be installed independently, can also be combined with the use of the control panel Wiegand 26 protocol, performance is quite stable. Via TCP / IP and RS232 / 485 communication protocols used in different networks via TCP / IP protocol so that data easily within a few seconds of transmission between the machine and computer.
| Fingerprint Capacity | 3000 |
| ID Card Capacity | 3000 |
| Record Capacity | 100000 |
| Display | 2.4inch HD LCD screen,Touch-Screen keypad |
| Communication | U disk, USB, RS485, TCP/IP |
| Scanner | High precision total reflection optic scanner |
| Suggestion of installing distance | 140-150cm |
| High precision total reflection optic scanner | 1:N 1:1 |
| Alarm Function | Intimidation alarm, tamper alarm, forced door-opening alarm, door-opening overtime alarm, entrance point alarm |
| Standard Functions | Access control interface for 3rd party electric lock,door sensor,exit button,alarm |
| Optional Functions | ID/Mifare/HID, Webserver, 9 digit user ID, and Wi-Fi, ADMS |
| Power Supply | DC 12V |
| Verification Speed | ≤0.5 sec |
| Operating Temp. | 0°C- 45°C |
| Operating Humidity | 20%-80% |
| Dimension | 128*125*40mm(Length×Width×Thickness) |
| Gross Weight | 0.65kg |
Nordson Electronic Co., Limited was founded in 2006, and now we are one of the most professional and comprehensive providers of access control solution in China. After years of arduous pioneering, we create a powerful capabilities of product development and manufacturing. Ourbusiness scope involves magnetic lock, bolt lock, strike lock, door contract, accesscontroller, automatic door operator and access control solution.
Nordson pursuited for excellence all the time. We makethe brand to be top-ranking in China with advanced crafts and rigoroustechnologies. Up to now, all our products pass the certifications of CE, RoHS, andalso pass the quality test of security products by China's Ministry of PublicSecurity. Nordson's products sell and be agent in more than 100 countries andregions, such as USA, EU, Middle East, Southeast Asia, Australia, Brazil, India, Russia etc...Besides, Nordson provides OEM and ODM services also. Nordson'sproducts are widely used in business institutions, government agencies, residentialcommunities, universitiesand so on.
In future, Nordson will pursuite for more excellent performance, and provide more new items and better services. Our customers will growtogether with us, to be strong in the process Nordson become the most powerfulenterprise of security system in China.
History
2006 Nordson wasfouned.
We were agent to sell electric locks andaccess control system products.
2008 Nordson Electronicsopened a factory.
We supplied electric locks for buildingprojects and customized production for OEM customers.
2010 NordsonElectronics Co., Limited was founded in HongKong.
We fully entered theHongKong market.
2012 InternationalTrade Department of Nordson Electronics(Shenzhen) is founded.
We were absorbedto oversea maketing and development.
2014 The trademark "Nordson"was registered in China mainland.
We wereconcentrated on product development and branding.
2015 We are opening upa new age of access control.
