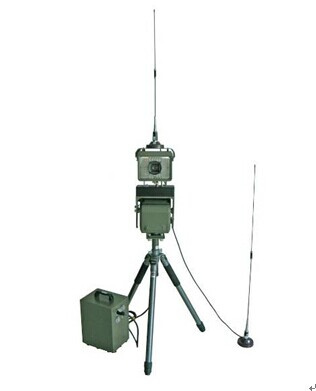

Night Vision Wireless Video Transmitter
| Price: |
US $ 20000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
MV2025TYME |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Temperature: |
-25°c~55°c |
| Storage Temperature: |
-40°c~70°c |
| Dimension: |
225mm×180mm×260mm |
| Weight: |
9kg |
| Application: |
Image Transmission |
| Oscillator Circuit: |
LC or Crystal Oscillator |
| Type: |
Cofdm Microwave |
| Modulation: |
Qpsk, 16qam, 64qam |
Product Description
Functions & Features:n Applications for border defence, customs, airport, oil field, public security, traffic and forest fire preventionn Passive infrared thermal imaging technologyn Uncooled vanadium oxide (VOx) focal plane arrayn Transmission encryption n Darkness employment without any infrared lighting n Wireless PTZ command controln DC (lithium battery) and AC power supplyn Receiver builtin networked transmission (MPEG-2/H.264) and video recording functionsn Working frequency and other parameters directly display on frequency controllern Controlled infrared lamp, black and white mode/color mode remote command switchingDouble-lens Night-vision Device
|
| Infrared thermal imaging | Working band | 7~14μm |
Time constant
| <21ms |
| NETD | <0.1°C |
| Lens focal length | Fixed focus and aperture,
focal length 75mm |
| Digital zoom | 2X |
Picture processing
| Digital image detailed enhancement(DDE) |
| Human detected distance | 1100m |
| Filed (horizontal*vertical) | 9.3°×7° |
| Sensor array element number | 320×240 |
| Spatial resolution | 0.2~0.5mrad |
| Maximum aperture | 1.4 |
| Day-and-night Camera | CCD | 1/3" |
| Effective pixels | 440K |
| Video output | 1Vpp-75Ω |
| Horizontal resolution | 540TVL |
Minimum illumination
| Color: 0.02 LX F1.2/
White and black: 0.002 LXLx F1.2 |
| Automatic gain control | 8~36dB |
| SNR | 50dB |
| Focal length | 10.0-200.0mm |
| Aperture range | F1.8-360 |
Angle of view (D×H×V)
| Wide angle 35.7°× 26.8° |
| Far end 1.9°× 1.4° |
| Minimum object distance | 1.5m |
| Dimension | 385mm×200mm×200mm |
Weight
| 5.7kg |
| PTZ Control |
| Voltage input | DC12V~16V/1.5A |
| Limit adjustament | Externally adjusted |
| Speed | Horizontaol 0.5°~10°/s |
| Vertical 0.5°~10°/s |
| Rotation angle | Horizontal 0-355° |
| Vertical +45° to -85° |
| Dimension | 225mm×180mm×260mm |
| Weight | 9kg |
| Transmitter Technical Parameters |
| Working voltage V | DC12V~DC16V |
| Working current A | ≤[email protected] |
| Frequency output | 300-450MHz,560-760MHz or user customized |
| Modulation | COFDM |
|
| Constellation | QPSK, 16QAM, 64QAM optional |
| FEC | 1/2, 2/3, 3/4, 5/6,7/8 optional |
| GUI | 1/32, 1/16, 1/8, 1/4 optional |
| Carrier | 2K |
| Frequency bandwidth | 1.25/2.5/6/7/8MHz @MPEG-2, 1.5/2/4/6/7/8MHz @ H.264 |
| Power output | 30dBm adjustable with 1dB step |
| Power flatness | Full band ≤2dB, 8MHz (within)≤0.5dB |
| C/N | ≥28dB@30dBm |
| Video input level | 1Vp-p@75Ω, PAL
|
| Video resolution | 720x576(PAL) 720x480(NTSC) |
| Video bitrate | 0.9-15Mbps(MAX) |
| Encryption | AES /ALLTECH Basic Scrambling |
| Lithium Battery Package Technical Parameters |
| Battery capacity | 12V×100AH |
| Charging time | 12 hours |
| Battery package weight | 12.3kg |
| Lasting time | ≥18 hours |
Environment
|
| Temperature | -25°C~55°C |
| Humidity | 30%~90% |
| Storage temperature | -40°C~70°C |
Keweitai, a leading high-tech worldwide enterprise in information communication industry, mainly engaged in radio communication, satellite communication, microwave remote monitoring systems, closed-circuit monitoring, the development\production and application in network digital video processing technology and computer multimedia control systems.
As a leading manufacturer with innovative technologies and services, Keweitai has developed a wide range of wireless mobile video transmission system\network video server\network video management platform and wireless HD video and audio transmission airborne UAV system. It's products and systems have been widely used for homeland security, broadcasting events, commercial, business, and military aircraft.
Keweitai has an excellent and professional engineering team of more than 200 employees, among which R & D personnel accounted for 40 %. It has two production lines - one for wireless mobile COFDM video transimission system and one for UAV surveillance system with the high yearly production capacity of 10, 000 sets of wireless communications products and 20, 000 sets of security and network transmission equipment. It has a total of 3400 square meters independent property rights, independent commercial property 300 squre meters, and strategy reserve property 1500 square meters. Its headquater is located in shenzhen and still owns the other seven service centers and a product development division all over China.
Keweitai do market its leading position in wireless video mobile emergency command application all over the world, enable customer to combat major crime, terrorism, fire fighting and so on. Keweitai is still making every effort to develop a new genernation of wireless communication technology, providing customers with a more reliable quality products and solutions.
