| Prod Model: |
DC-A039 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Source: |
Electric |
| Place Of Origin: |
Guangdong, China (Mainland) |
| Brand Name: |
Detai |
| Experience In Making: |
18years |
| Dimension(L*W*H): |
Customized |
| Weight: |
According to The Size |
| Voltage: |
12-480V |
| Power(W): |
Customized |
| Thermocouple Type: |
J or K |
| Application: |
Heater |
| Structure Material: |
Metal Material |
| Heat Transfer Surface: |
Cartridge Heaters |
Product Description

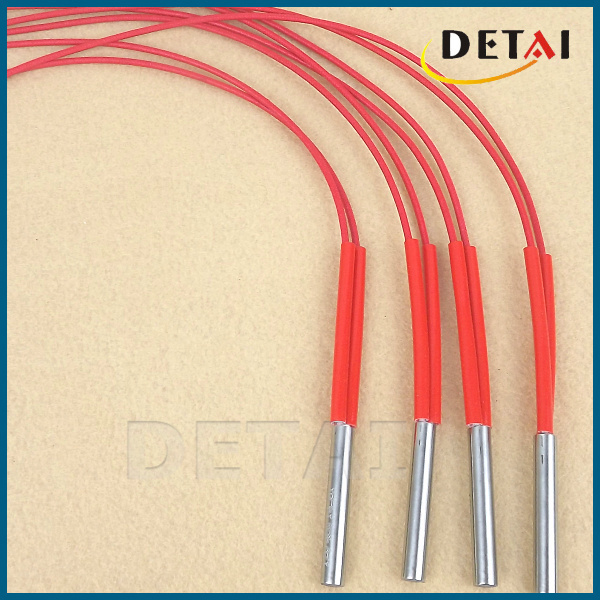

Nickel Iron Alloy Coffee Maker Cartridge Heater(DC-A039)
Specifications :
1.Certificate:UL,CE
2.with K or J Nickel Thermocouple
3.High Quality Criterion.
4.High efficiency
When Ordering :
1.Type of Cartridge Heater ( please refer to Termination Options ).
2.Tube diameter of cartridge heater.
3.Overlength of catridge heater.
4.Wattage & Voltage
5.Lead type ( glass fibre / PTFE ) & lead length.
Options uses:
1.Plastic Processing
2.Packaging Machinery
3.Injection and Blowing Moulding
4.Extruders
5.Foundries
6.For Fastening of turbine bolts
7.Soldering pots
When ordering Cartridge Heaters, please specify the following information:
1.Type of Cartridge Heater ( please refer to Termination Options ).
2.Ø of Cartridge Heater.
3.Overall length for a straight Cartridge Heaters.
4.Wattage & Voltage
5.Lead type ( glass fibre / PTFE ) & lead length.
About us:
Dear custom,this is Angela,the customer service of Detai Electronical Co.,LTD. We are professional manufacturer in heating element ilne with 18 years advanced technology and experience.Please feel free to ask me any information and welcome to inquiry,I will reply you asap.Thanks,have a good day!
Sheath Material
|
SUS 304/316/ Incoloy 840
|
Spirals
|
Nickel - Chrome
|
Insulation
|
Magnesium Oxide Powder
|
Voltage Supply
|
12V to a maximum of 480V
|
Maximum Temperature
|
750 °C
|
Resistance Tolerance
|
+10% - 5%
|
Wattage Tolerance
|
+5% - 10% (closer tolerances are available upon special request)
|
