| Prod Model: |
JYCV1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
1 Ton |
| Ice Shape: |
Tube |
| Control: |
Electric |
| Power: |
200W-400W |
| Structure: |
Separated Type |
| Material: |
Stainless Steel |
| Application: |
Household |
| Condensing Mode: |
Water-Cooled |
| Filtering Device: |
With Filtering Device |
| Automatic Cleaning Device: |
With Automatic Cleaning Device |
Product Description

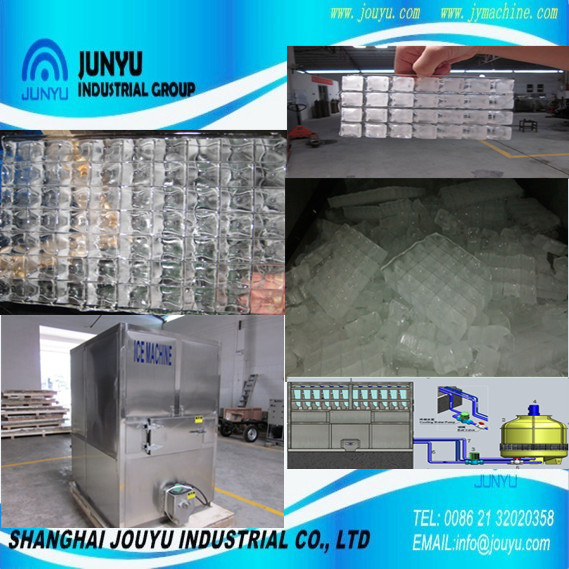

Nice quality ice cube making machine
Ice maker/ice cube machine-jycv1000: 1. It has 1tons capacity in 24hours. 2. Freezing time: 20 minutes for 22mm*22mm*22mm and 23 minutes for 29mm * 29mm * 22mm. 3. It adopts stainless steel SUS304 materials for inside and outside of cube ice machine. Such steel can prevent rusting and make ice sanitary and high-quality. 4. We use PLC program control to operate the machine, the ice can freeze automatically in the ice maker grids, then it can fall automatically, lastly it will come out automatically. Meanwhile, the special ice outlet can be matched with packing system. 5. We use the food-grade stainless steel 304 and fix the automatic ice door, very easy and convenient to operate and control.
1. Reasonable design for the structure, save space, easy to install. 2. Greatly save energy, only 80-85kw power is consumed to produce one ton ice. 3. Ice dropping automatically, no need auxiliary ice harvesting equipment, lower error rate. 4. Ice outgoing automatically, no need take ice by hand, which can guarantee the ice clean and sanitary. 5. Install as the operation instruction, supply failure alarming system, no need worker to monitor.
Cooling waywater cooling/air coolingwater cooling/air coolingwater cooling/air coolingwater coolingwater coolingwater coolingwater coolingwater cooling
Standard working conditions: Input water temp: 22° C, ambient temp: 25° C, condensing temp: 40° C;
Supply power: 380V~420V, 50Hz/60Hz, 3p; 220V~240V, 60Hz, 3p; 440V~480V, 60Hz, 3p;
Model and specifications can be subject to change without notice.
Area manager
Mary wang
Junyu industrial group limited
Add: Room 2708, no. 161 east lujiazui rd, Shanghai, 200120, China
Tel: 86-021-32020358 ext 816 fax: 86-021-32020328
Mob: 86-13701879121
| NO. | Parameters | Technical data |
| 1 | Name | Cube Ice Machine |
| 2 | Model | JYCV1000 |
| 3 | Quantity | 1Units |
| 4 | Daily output | 1tons/day |
| 5 | Weight | 900kg |
| 6 | Measurement | Cube ice machine | 1700mm*1220mm*1960mm |
| Cube ice | 22mm*22mm**22mm or 29mm*29mm*22mm |
| 7 | Noise | 55dB |
| 8 | Refrigerant | R404a |
| 9 | Evaporating temp. | -10 |
| 10 | Condenser temp | +40 |
| 11 | Input water temp. | 16 |
| 12 | Ambient temp. | 40 |
13
| Compressor | Model | Semi-hermetic piston compressor |
| Brand name | Copeland |
| Model | LA40-040E |
| Amount | 1 |
| Capacity | 4 HP |
| 14 | Power of cooled water pump | 1.5KW |
| Motor Power of cooling tower | 0.37KW |
15
| Evaporator | Type | Cube type |
| Quantity | 4 pieces |
| 16 | Control system | micro-computer control |
| 17 | Voltage | 220V, 60hz, 3P |
| 18 | cube ice weight density | 500~550kg/m3 |
| 19 | Power consumption | 80KW~85KW/ton |
| 20 | Material for mainframe panels | Stainless steel 304 |
