| Prod Model: |
90L 138L 188L 238L 318L 433L |
| Model: |
Newsky Power 90L to Portable Solar Refrigerator |
| Power Consumption: |
40W |
| Input Voltage: |
DC 12V/24V Auto Recognition |
| Product Size(mm) (L*W*H): |
733*752*851 |
| Carton Size(mm) (L*W*H): |
852*741*847 |
| N.W./G.W.(Kg): |
42/46 |
| Loading Quantity: |
42PCS/20gp, 84PCS/40gp, 126PCS/40hq. |
| Application: |
Remote Homes;Boats and Marine |
| Capacity: |
60-200L |
| Door: |
Single Door |
| Installation: |
Free-Standing |
| Type: |
French Door |
| Power Source: |
Solar |
| Material: |
Plastic |
| Temperature Type: |
Single-Temperature |
| Defrost Type: |
Manual Defrost |
| Climate Type: |
ST |
| Certification: |
RoHS |
Product Description
NEWSKY POWER 90L to portable solar refrigerator
1,Features:
High quality DC compressor;
CFC-free refrigerant (R-134a);
Low power consumption;
Battery over discharge protection;
Insulation 110mm for saving more energy;
High temperature resistance and energy saving design;
AC/DC operated;
LCD display;
Strong door iron lock;
Inner fan to force air circulation to insure temperature uniformity;
Max -19ºC for freezer compartment at 30ºC Ambient temperature.
2,Pictures Share:
3,Specification: | Model | BR90C4 | BR118C4 | BR138C4 | BR188C4 | BR238C4 | BR318C4 |
| Power Consumption | 60W | 72W | 72W | 72W | 80W | 80W |
| Input Voltage | DC 12V/24V |
| Work Temperature | <40ºC |
| Capacity | 90 L (3.18 c.f.) | 118 L (3.18 c.f.) | 138 L (4.87 c.f.) | 188 L (6.64 c.f.) | 238 L (8.40 c.f.) | 318 L (11.23 c.f.) |
| Product Size(mm) | 625× 555× 910 | 815× 555× 910 | 815× 555× 910 | 875× 595× 920 | 1245× 660× 920 | 1245× 660× 920 |
| Carton Size(mm) | 685×565 × 935 | 885×560 × 930 | 885× 575× 930 | 930× 605× 940 | 1300× 680× 940 | 1300× 680× 940 |
| N.W./G.W.(KG) | 26/31 | 29/35 | 30/36 | 36/43 | 50/58 | 52/60 |
| Loading Quantity | 66PCS/20GP,
138PCS/40GP, 138PCS/40HQ. | 52PCS/20GP,
104PCS/40GP, 104PCS/40HQ. | 52PCS/20GP,
104PCS/40GP,
104PCS /40HQ. | 42PCS/20GP,
88PCS/40GP, 88PCS/40HQ | 34PCS/20GP, 70PCS/40GP, 70PCS/40HQ | 26PCS/20GP, 54PCS/40GP, 54PCS/40HQ |
| Model | BCD128C4 | BR128C4 | BR170C4 |
| Power Consumption | 40W | 40W | 40W |
| Input Voltage | DC 12V/24V auto recognition |
| Work Temperature | <45ºC |
| Capacity | 128L | 128L | 170L |
| Product Size(mm) (L*W*H) | 733*752*851 | 804*726*810 | 804*726*960 |
| Carton Size(mm) (L*W*H) | 852*741*847 | 825*741*847 | 825*741*997 |
| N.W./G.W.(KG) | 42/46 | 42/46 | 45/50 |
| Loading Quantity | 42PCS/20GP,
84PCS/40GP,
126PCS/40HQ. | 36PCS/20GP,
84PCS/40GP,
126PCS/40HQ. | 36PCS/20GP,
84PCS/40GP,
126PCS/40HQ. |
4,NEW MODEL: High quality DC compressor
automatic recognition
CFC-free refrigerant (R-134a)
AC/DC operated
Insulation 110mm , 50% Energy saving
Temperature range from +15 to -19ºC
precisely temperature control
Double top doors, Dual temperature control
High temperature resistance above 45ºC
Battery over discharge protection
Circulation fan with LED light (AUTO sensor) | Model | BR233F | BR303F | BR335F | BR384F | BR433F |
| Power Consumption | 50W | 50W | 55W | 55W | 60W |
| Input Voltage | DC12/24V | DC12/24V | DC12/24V | DC12/24V | DC12/24V |
| Work Temperature | <45ºC | <45ºC | <45ºC | <45ºC | <45ºC |
| Capacity | 233L | 303L | 335L | 384L | 433L |
| Product Size (mm) | 1213*736*815 | 1213*736*965 | 1613*736*815 | 1613*736*890 | 1613*736*965 |
| Carton Size (mm) | 1260*755*865 | 1260*755*1015 | 1660*755*865 | 1660*755*940 | 1660*755*1015 |
| N.W./G.W.(KG) | 53/56 | 58/65 | 64/72 | 70/78 | 76/84 |
| Loading Quantity | 26PCS/20GP, 81PCS/40GP | 26PCS/20GP, 74PCS/40GP | 20PCS/20GP, 63PCS/40GP | 20PCS/20GP, 56PCS/40HQ | 20PCS/20GP, 56PCS/40HQ |
| Model | BR212RF | BR277RF | BR315RF | BR362RF | BR408RF |
| Power Consumption | 50W | 50W | 55W | 55W | 60W |
| Input Voltage | DC12/24V | DC12/24V | DC12/24V | DC12/24V | DC12/24V |
| Work Temperature | <45ºC | <45ºC | <45ºC | <45ºC | <45ºC |
| Capacity | 212L
94L-Fridge 118L-Freezer | 277L
127L-Fridge
150L-Freezer | 315L 145L-Fridge 170L-Freezer | 362L
169L-Fridge 193L-Freezer | 408L
192L-Fridge 216L-Freezer |
| Product Size (mm) | 1213*736*815 | 1213*736*965 | 1613*736*815 | 1613*736*890 | 1613*736*965 |
| Carton Size (mm) | 1260*755*865 | 1260*755*1015 | 1660*755*865 | 1660*755*940 | 1660*755*1015 |
| N.W./G.W.(KG) | 60/66 | 68/74 | 80/86 | 83/89 | 86/92 |
Loading Quantity | 26PCS/20GP, 81PCS/40GP | 26PCS/20GP,
74PCS/40GP | 20PCS/20GP, 63PCS/40GP | 20PCS/20GP, 56PCS/40HQ | 20PCS/20GP, 56PCS/40HQ |

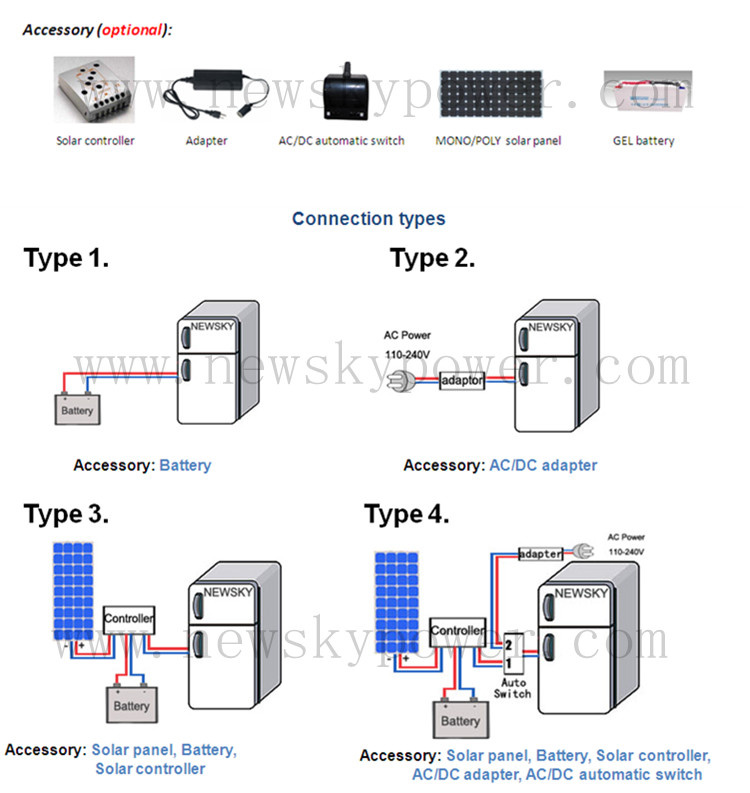

5,Accessories and Connection Type:
6,Workshop and Pakaging Show:
7,Contact Information:
