| Prod Model: |
OX-TK-8204 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operation System: |
Linux |
| Compression: |
H.264 |
| Signal System: |
PAL:25 Fps, NTSC:30 Fps |
| Optional Function: |
G-Sensor ;WiFi;3G-WCDMA,Cdwma,Cdwma2000,TD-SCDMA |
| Extended Port: |
Rj45X1;RS232X2;RS485X2 |
| Warranty: |
One Year |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Brand: |
OEM.ODM |
| Certification: |
CE; RoHS; FCC |
Product Description

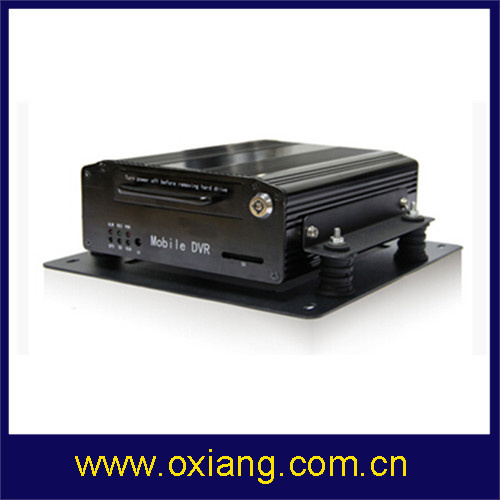

Newest 3G/WiFi Mobile DVR GPS Tracking System
Features:
1.Management for 500 vehicles
2.Real-time video and audio monitoring
3.Real-time vehicle status with complete information: online number ,speed ,GPS Tracking,
temperature ,brakes ,backing up,turnning and alarming etc
4.Remote control to gas-off/power off to vehicles
5.Video search ,download
6.Picture capture
7.Intercom ,Broadcasting ,Text To Speech
8.PTZ Control
9.History Tracking
10.Alarm linkage(Speeding alarm,external emergency alarm,hard disk error alarm,video lost alarm,electronic map markers)
11.Electronic security fence
12.Google Map/Mapinfo
13.Multiple access,permissions setting
| Technical Specifications |
| Operation System | Linux |
| Compression | H.264 |
| Signal System | PAL:25 fps, NTSC:30 fps |
| Language | Simplified Chinese/Traditional Chinese/English optional, OSD Menu |
| Display Frame Rate | D1/HD1/CIF Selectable. 4CIF@25fps,4HD1@25fps,2D1@25fps+25fps |
| Video Input/ Output | 4-CH Input/1CH Output |
| Audio Input/Output | 4-CH Input/1CH Output |
| Alarm Input/Output | 4 alarm input/2Output |
| Recording | Manual/ Schedule/ Motion Detection |
| GPS Vehicle tracking, Speed detection, Synch time |
| Event Sensor trigger, Speeding, Accelerometer, Temperature, Video Loss |
| Playing Mode | Support 1 channel or synchronous 4 channels By PC |
| Searching Mode | By Time/ By Date/ By Event |
| Storage | Support single/Dual SD card selectable, 128GB Total/Max 64GB for Each |
Built-in Model
(Optional) | G-SENSOR |
| GPS |
| 3G( WCDMA/CDWMA2000/TD-SCDMA) |
| WIFI 802.11b/g |
| Remote Control | IR Remote Control /Control Panel |
| Software Upgrade | SD Card |
| Power Input/Output | 8~36V Input,12V Output |
Camera's remote
power supply | Supply Remote Power for 4 channel cameras DC12V@2A |
| Extended Port | RJ45X1;RS232X2;RS485X2 |
| Working Temperature | -30°C~+70°C |
| Relatively Humidity 20% - 95% |
| Vibration Resistance < 2 Grms |
| Shock Resistance < 1200 Grms |
| Vehicle key signal | ≤4V (OFF),≥5V(ON) |
| Power Supply | DC8V~36V,6W |
| 8~36V Input, DC12V@2A Output for 4CH Cameras |
| Meas(L*W*H) | 22x15x7.6 cm |
| Applications | Buses, cars, coaches, cash carriers, industrial vehicles, taxi, investigation vehicles, military trucks, police vehicles, ambulances, Tourism buses, even yachts, aircraft and vessels. It can also be used in farm, construction site, vacation spot to monitor the around environment if nobody nearby and so on. |
