| Prod Model: |
RSS-NPC 58/1800-30tube |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Tank Diameter: |
310mm, 360mm |
| Outer Tank Diameter: |
420mm, 460mm, 470mm |
| Capacity: |
100L, 150L, 200L, 300L |
| Color: |
as You Like |
| Length Of The Vacuum Tube: |
1800mm |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Certification: |
CE |

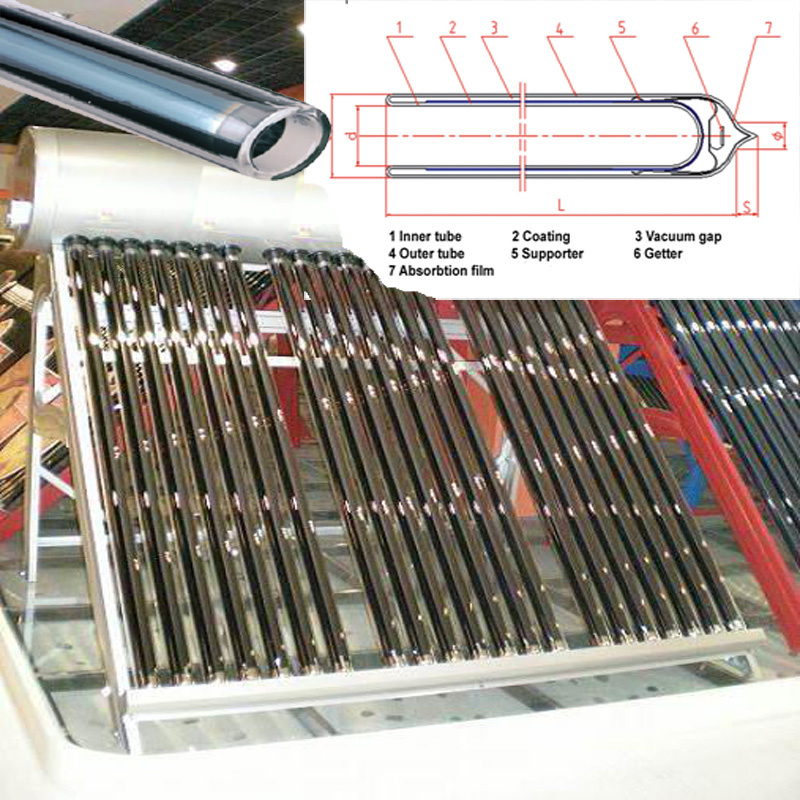

Product Description
1)Inner water tank shell is made of SUS3042B food grade stainless steel plates, welded by argon arc. Water is pure and drinkable, thickness is 0.5mm.
2)Out water tank shell is made of color steel with power painted, you can choose the color which you like
3)Heat insulation of water tanks adopts polyurethane foam and the thickness is 50mm
4)Silicon rings to connect and seal them, leak testing before make insulation
5)The tubes and supports are adjustable. The power bearing is average and can assure the vacuum tubes to use for a long time
6)Whole glass vacuum tubes adopt super hard borax and silica glass
7)Absorption rate: =93%, thermal radiation rate: =6%
8)It resists 25mm hail and the using life can last 15 years
9)Temperature when exposed to sun without water: 200oC, 2.5 hours to boiling point if using single tube
10) If you use electrical appliances to aid heating and to switch off the power supple before bathing
11) Please contact with us if you have more questions
Inner tankSUS 304-2B stainless steel, 0.41mm thickness
Inner tank diameter310mm, 360mm
Outer tankSUS 304-2B stainless steel, 0.30mm thickness
Outer tank diameter420mm, 460mm, 470mm
Capacity100L, 150L, 200L, 300L
Tank insulating layer50-60mm high-density polyurethane foamed
Foam pressure32kg/m3 minimum
Heat reservation72 hours
WeldingArgon arc welding
Vacuum tube type3 target tube AL-N-AL/SS/CU coated
Outer Glass Tube Diameter58mm
Inner Glass Tube Diameter47mm
Length of the Vacuum Tube1800mm
Thickness of the Glass Tube1.6mm
Material of bracketGalvanized steel 1.5mm - black color
Structure of bracketFlexibility for flat or slope roof
Angle of bracket28 30 45 degree
Screw for bracketSUS 202 stainless steel 8mm diameter
Advantages:
1. High quality &Factory Price
2. Different sizes and power can be customized
3. Raw material at direct factory price with high quality
4. Discount is offered based on order quantities.
Professtional services:
1. Your company information, products desigh or other confidential information
2. All inquiries related to our products will be replied within 24 hours.
3. OEM is acceptable.
4. Well- trained and experienced sales are ready to service you.
Model |
Tube size |
Tube coating |
capacity | Qt y .per20'/40'/40
H Q
C ontainer |
FOB
s h a nghai
( USD ) |
|
| RSS-NPC47A/1500-420-8 | Φ47mm*1500mm*8 | SS-C/CU | 65L | 140/280/310 | 70.00 |
| RSS-NPC47A /1500-420-15 | Φ47mm*1500mm*15 | SS-C/CU | 120L | 65/136/160 | 98.00 |
| RSS-NPC47A /1500-420-20 | Φ47mm*1500mm*20 | SS-C/CU | 160L | 56/117/138 | 124.00 |
| RSS-NPC47A /1500-420-24 | Φ47mm*1500mm*24 | SS-C/CU | 192L | 48/99/116 | 150.00 |
| RSS-NPC47A /1500-420-30 | Φ47mm*1500mm*30 | SS-C/CU | 240L | 38/80/94 | 186.00 |
|
|
| RSS-NPC47A /1800-460-15 | Φ47mm*1800mm*15 | SS-C/CU | 135L | 65/136/160 | 108.00 |
| RSS-NPC47A /1800-460-18 | Φ47mm*1800mm*18 | SS-C/CU | 172L | 58/120/140 | 126.00 |
| RSS-NPC47A /1800-460-20 | Φ47mm*1800mm*20 | SS-C/CU | 180L | 52/107/126 | 140.00 |
| RSS-NPC47A /1800-460-24 | Φ47mm*1800mm*24 | SS-C/CU | 216L | 41/85/100 | 168.00 |
| RSS-NPC47A/1800-460-30 | Φ47mm*1800mm*30 | SS-C/CU | 270L | 35/73/86 | 210.00 |
|
|
| RSS-NPC 58A/1800-460-15 | Φ58mm*1800mm*15 | SS-C/CU | 160L | 51/106/125 | 128.00 |
| RSS-NPC 58A/1800-460-18 | Φ58mm*1800mm*18 | SS-C/CU | 190L | 43/88/104 | 147.00 |
| RSS-NPC 58A/1800-460-20 | Φ58mm*1800mm*20 | SS-C/CU | 210L | 37/78/92 | 160.00 |
| RSS-NPC 58A/1800-460-24 | Φ58mm*1800mm*24 | SS-C/CU | 252L | 33/70/82 | 192.00 |
| RSS-NPC 58A/1800-460-30 | Φ58mm*1800mm*30 | SS-C/CU | 315L | 27/56/66 | 240.00 |
| RSS-NPC 58A/1800-460-36 | Φ58mm*1800mm*36 | SS-C/CU | 378L | 20/42/52 | 288.00 |
RAOSS INTERNATIONAL was established in 2006 and located in the solar producing area, near Yiwu big international market.
Mainly engaged in import and export trade, specializing in producing various solar products accessories and so on.
We insist on "First Quality, First Trust, and First Service" as our business philosophy, focuses on international and domestic markets, strives for excellence. We are sincerely expecting to cooperate with you and win-win, warmly welcome to visit our company; Let's create bright future together.
Meanwhile, we are sensitive to the market, once new and popular items emerge in the market, we will recommend them to you at the first time. Also, we can be your Chinese agent, source products, quality control and goods delivering.
We sincerely wait from your calls!
