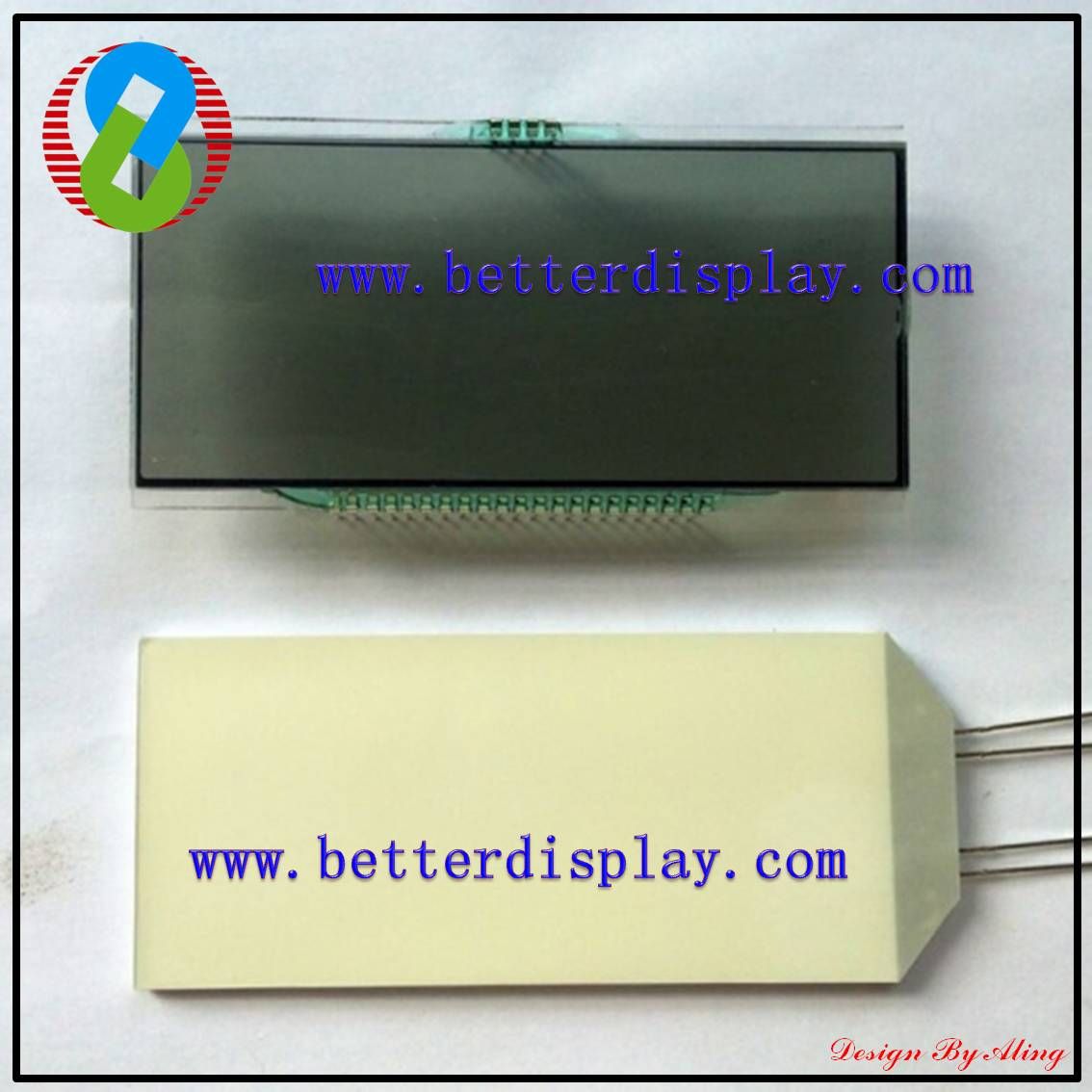

New Products TFT LCD Screen Small LED Display

Prod Model:	XK - 10291059
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Length*Width*Highth(Customer Designed)
Display Type:	Tn
Storage Temperature):	-30 ~ 80
Operating Temperature:	-20 ~ 70
Structure:	COB
LCD Display Mode:	Va, Transmissive
Backlight:	White
Driving Method:	1/4duty,1/3bias
Viewing Direction:	12 O'clock
Power:	+5V
LCD Drive Mode:	Multiplex Drive LCD Module
DOT-Matrix Graphic LCD Module Type:	Row/Column-Driven Control Type
Digital LCD Module Type:	Counting Module
Type:	LCM
Display Technology:	COB
Usage:	Small-sized LCM
Viewing Angle:	TN＋FILM
Response Time:	1ms
Customized:	Customized
Touch Screen Type:	Sbn0064G Drive

Product Description

Product Description
Spec:

SIZE: Length*width*highth

DISPLAY TYPE: VA TN DISPLAY

LCD OPERATIONG VOLTAGE: 5.0v? (3V-5V. >2.8V IS OK)

OPERATING TEMP: -20-70C

STORGER TEMP: -30-80C

DRIVE MODE: 1/4DUTY, 1/3BIAS

VIEWING DIRECTION: 6H(BOTTOM VIEWING)---(12H, 6H, 3H, 9H)

POLARIZER TYPE: FRONT: TRANSMISSIVE,
BACK: TRANSMISSIVE

CONNECTOR: PIN
BACKLIHGT: WHITE WITH TWO LIGHT, /BLUE BL (CUSTOMER DESIGN)





Product Description
Specifications:
1. With VIDEO, VGA signal input
2. With OSD menu display
3. TFT module use for electronic equipment
4. Favorable price

1. Profile:
Driver Board and 8" Innolux Digital Panel. This driver board can with VIDEO, Y/C, AUDIO & VGA signal input, it adopts the backlight of LED, Two system formats, PAL and NTSC (auto switch ). With OSD menu control function, and IR receipt function.

2. Application: This module applies for as follow
-Office electronic equipment
-Instrument and Measure appliance
-Machinery and Equipment
-Audiovisual Car Monitor, Portable DVD Player, Long-distance terminal display.
-Household Video door phone, Video phone

3. Main Parameters:
Backlight: LED
Pixel resolution: 800(H) X 3RGBx 600V
View angle (Ø /U/D/L/R); 50/70/70/70
Brightness: 250 CD/m2
System format: PAL/NTSC automatically switch
Video input: 1.0Vp-p 75 ohm
Power Supply Input: DC 12V ± 25% 330mA± 30mA
Panel display dimension(mm): 162.0(H)× 121.5(V)
Panel Overall dimension(mm): 183(W)× 141(H)× 6.3(D)
Structural dimension of PCB (mm) without VGA socket: 128.8(W)× 85.4H× 9.4D
Working temperature: -10~+60
Environmental relative humidity: 5~95% RH
Storage temperature: -20~+70]


Packaging & Delivery
Packaging Detail: TBD
Delivery Detail: 2-3 Weeks for bulk order



We are the manufactory of LCD LCM LED TFT LCD Touch Panel, display, screen, TN, HTN, FSTN, VA, with silk screen, pin or zebra, FPC, COB, COG, TAB, All view angle, 2.8V 3.0V 5.0V,


We had at least 50 people for research and development, Quality control, 300 workers on the production lines.


Our product Widely used on the Mobile phone, camera, MP3, MP4, GPS, DVD displayer, electronic photo album, navigation, vehicle display, display instrument, electronic, etc.


Quality control By: IQC -IPQC-OQC


Quotation FOR
LCD: 1-2days
LCM: 1-2days

Counter drawing FOR
LCD: 1-2 days
LCM: 2-3 days

Samples FOR
TN LCD: 7-10 days;
STN LCD: 10-12 days;
TFT LCM: 15 days
LCM: 20-25 days

Production time
TN LCD: 3-4 weeks; STN LCD: 4 -5 weeks; LCM: 4-6 weeks;

Best Services
Our commitment is 24 hours to solve customer complain and give the solution
