| Prod Model: |
HLLW- |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
for Air Conditioner |
| Certificate: |
CE |
| Heating And Cooling: |
Heating and Cooling |
| Type: |
Cabinet Air Conditioner |
| Operating Voltage: |
230 VAC |
| Mounting: |
Floor Standing |
| Certification: |
CE |
| Condition: |
New |
Product Description
Specifications

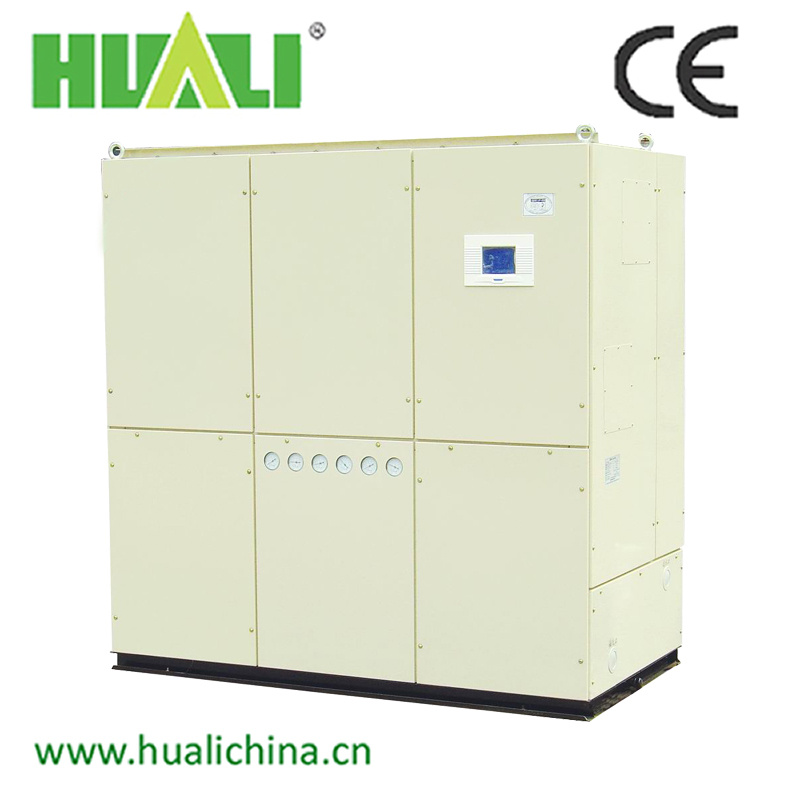

Packaged air conditioner
*CE certificate
*Cooling capacity: 16.7KW to 185KW;
*Heating capacity: 6KW to 72KW;
Packaged air conditioner of HUALI is the latest kinds of packaged air conditioner based on many years' developing and manufacturing experience. This kind of packaged air conditioner has streamlined design of outline and attractive appearance. With the functions of refrigerating, heating and dehumidification, it can achieve precise temperature control of indoor environment, so that it can be widely used in many occasions, such as office, hotel, museum, and so on.
A This series of units has three types: Air cooled series (HLLA, cooling only/ HIR, cooling and heating), water cooled series ( HLLW) and heat pump air cooled series (HR). The series of HLLW and HIR have a total of 34 specifications from 3 HP to 60HP. The cooling capacity ranges form 16.7kw to 170 kw. The series of heat pump unit has a total of 12 specifications from 3HP~60HP.
B There are electric heating, hot water heating and steam heating for selection. Besides, we can offer part fresh air and all fresh air function if you need.
C The packaged type air conditioner unit has compact structure, small footprint, which make it easy to install, maintain and debug.
D The units are equipped with multi-protections, such as high/low pressure protection, compressor overload protection, fan over current protection, etc. All those ensure safe and reliable operation of the unit.
E As the specific requirements of the operating occasions, the units can be design as anti-exploded and anti-corrosion.
F The Eco-friendly R407C and R134a are also available
| Water Cooled Packaged Air Conditioner |
| Model HLLW~ | 5 | 8 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 |
| 5H | 8H | 10H | 15H | 20H | 25H | 30H | 40H | 50H | 60H |
| Unit Property | Cooling Capacity | KW | 16.7 | 26.4 | 33.5 | 50.2 | 66.0 | 76.0 | 92.1 | 125.1 | 152.0 | 185.0 |
Electrical Heating capacity | KW | 6 | 9 | 12 | 18 | 22.5 | 27 | 36 | 48.6 | 64.8 | 72 |
| Rated Air Flow | CMH | 2500 | 4000 | 5100 | 7800 | 10200 | 12600 | 15300 | 20400 | 25500 | 30000 |
External Static Pressure | Pa | 100 | 150 | 150 | 150 | 200 | 250 | 300 | 350 | 400 | 400 |
| Power Supply | 3PH 380V 50Hz |
| Running Power | KW | 4.0 | 6.5 | 8.2 | 12.1 | 15.3 | 17.8 | 22.3 | 30.3 | 37.1 | 47.2 |
| Running current | A | 8.5 | 13.5 | 16.6 | 24.6 | 30.4 | 34.2 | 44.5 | 60.0 | 70.2 | 90.1 |
Cooling Input power | KW | 5.8 | 9.3 | 11.7 | 17.4 | 21.9 | 25.2 | 31.4 | 42.7 | 51.9 | 65.2 |
Cooling Current | A | 12.0 | 19.2 | 23.6 | 35.0 | 43.1 | 47.9 | 62.4 | 84.2 | 97.6 | 123.9 |
Heating Input Power | KW | 6.5 | 9.8 | 13.1 | 19.5 | 24.7 | 30.0 | 40.0 | 54.1 | 72.3 | 83.0 |
Heating Current | A | 11.2 | 16.4 | 21.9 | 32.5 | 41.0 | 50.0 | 66.4 | 89.3 | 119.0 | 137.8 |
| Noise | dB(A) | ≤60 | ≤62 | ≤64 | ≤68 | ≤70 | ≤72 | ≤73 | ≤73 | ≤76 | ≤78 |
| Compressor | Type | Hermetic Scroll Type |
| Qty | 1 | 2 | 2 | 3 | 2 | 2 | 3 | 4 | 4 | 5 |
| Power | KW | 3.5 | 5.7 | 7.1 | 10.6 | 13.1 | 14.8 | 18.3 | 24.8 | 29.6 | 36.2 |
| Fan | Type |
Outer Rotor | The Belt Transmission Centrifugal |
| Qty | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Power | KW | 0.45 | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 |
| Air Filter | Nylon Netting |
| Evaporator | Ripple Aluminum Fins around Copper Pipe |
| Refrigerant | R22/R407C |
| Condenser | Type | Shell and Tube Type |
Cooling Water Flow | CMH | 3.5 | 5.5 | 7.0 | 10.5 | 13.6 | 15.6 | 19.0 | 25.8 | 31.2 | 38.0 |
Water Pipe Diameter | in | 1-1/4 | 1-1/2 | 1-1/2 | 2 | 2 | 2 | 2-1/2 | 3 | 3 | 3 |
Condensed water Drainage Pipe Diameter | in | 1 | 1 | 1 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 |
Water Drain Pipe Diameter | in | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 |
| Safety Protection | High/low pressure switch protection, Compressor overload Protection over current protection,
Phase sequence protection, Start delay protection, Oil heater, Cooling water flow too little protection,
Electric wire overheating protection,The fusible plugs, Fuse, etc. |
| Dimension | Width | mm | 800 | 960 | 1200 | 1700 | 1700 | 1700 | 1880 | 2050 | 2450 | 2450 |
| Depth | mm | 550 | 520 | 600 | 600 | 750 | 750 | 1090 | 1150 | 1300 | 1300 |
| High | mm | 1770 | 1730 | 1730 | 1780 | 1830 | 1830 | 1930 | 1930 | 1990 | 1990 |
| Net Weight | kg | 225 | 300 | 360 | 480 | 660 | 700 | 890 | 1100 | 1560 | 1800 |
Shenzhen Jinhuali Refrigeration Plant Co., Ltd. Was established in 2008. There are more than 150 staffs in our company, 80 % employees have a college degree or above. Our company specializes in the production, research and development, engineering design, installation, maintenance and repair of central air conditioner and refrigeration equipment. Our company adheres to the business philosophy of quality first, customer respect. We have established an honest, dedicated, pragmatic, innovative technology and management team, can more easily provide products to our clients with more advanced technology, more reasonable prices and better service, and serve to provide users a full range of integrated services in product introduction, equipment installation and commissioning, technical training and after-sales services.
We found the Domestic Market Department, Overseas Markets Department,
Research & Development Department in December, 2008.
We applied for CE certification and passed in 2009.
We applied for 6 software registration rights in 2010.
We applied for 3 utility model patents in 2011.
Our company was approved as a national high-tech enterprise on November 5, 2012.
Our company has owned customers' approval with advanced technical performance, reliable product quality, timely and thoughtful customer service since it has been founded. Our products have been widely applied in medicine, electronics, chemicals, plastics, electroplating, and other industries and commercial sites. We have agents or after sale service departments in the Chinese first-tier cities. Our products have been exported to many countries and regions of Europe, the Americas, Oceania, Africa, Asia.
