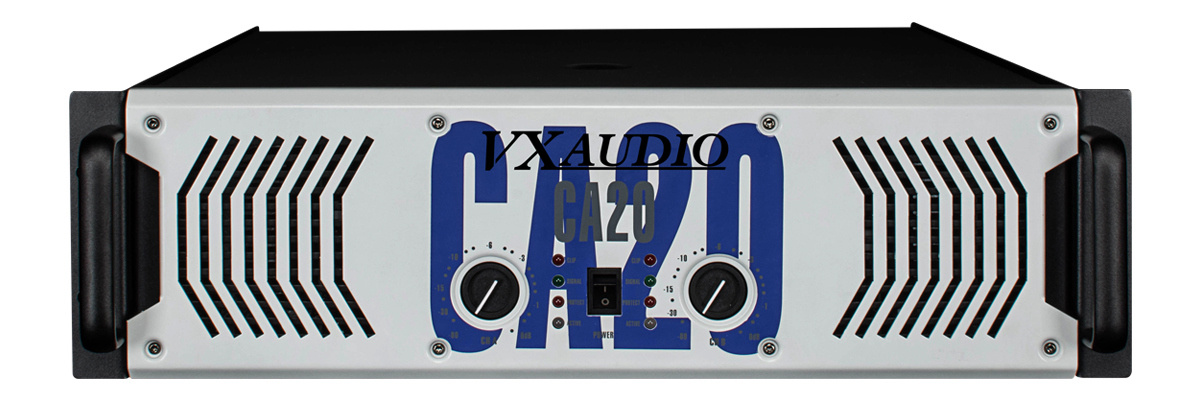

New Front Panel Ca20 Power Amplifier
| Price: |
US $ 3/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
20/Piece |
| Pay Type: |
T/T |
| Prod Model: |
CA20(2015) |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East |
| Type: |
Professional Amplifier |
| Usage: |
KTV System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
2.1 |
| Element Number: |
Push-Pull Amplifier |
| Output Number: |
2 |
| Voltage: |
110V-240V as Per Customer Request |
| Conductive Mode: |
H |
Product Description
FEATURES
CA series have 2U-3U higher selection, and 150W-1300W power area.
CA series had some pursuits for faster of reaction speed higher of damping factor, and greater function, higher level of protect function,production technology of SMD excellent component. Amplifier of.
CA series also can endure 2Ω stereo load, bridge 4Ω load, suit for drive line array speaker system.| Model | CA20 |
| Stereo Power 8Ω | 2*1300W |
| Stereo Power 4Ω | 2*1950W |
| Stereo Power 2Ω | 2*2600W |
| 8Ω BTL | 3900W |
| 4Ω BTL | 5200W |
| Frequency Response | 20Hz - 20KHz +0/-0.3dB |
| THD+N | <0.03%@8Ω 1KHz |
| S/N Ratio | >93dB |
| Slew Ratio | 44V/u S |
| Damping Factor | >300 |
| Crosstalk | >70dB@8Ω 1KHz |
| Input Impedance | 20KΩ(Balance)/10KΩ(Unbalance) |
| Input Sensitivity | 0.775V/1.0V/1.4V |
| Protect | Overheat short circuits,DC,limit and--softstart,Output relay-Zero Current Switch,Intellctual Clip limiter |
| Height | 3U |
| Gross Weight | 41KG |
| Dimensions | 655×585×200MM |
