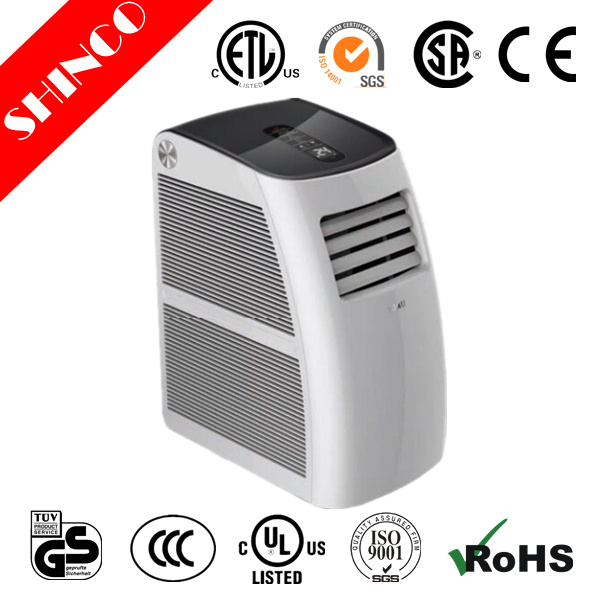

New Design Portable Mobile Air Conditioner with CE Approved

Name: New Design Portable Mobile Air Conditioner with CE Approved
Brand: ec-portal.com
SKU: 695630972
Availability: InStock
Rating: 4.8 (28 reviews)

Price:	US $ 100/Box
Trade Terms:	FOB,CFR,CIF
Min Order:	369/Box
Pay Type:	L/C,T/T,D/P

Send Inquiry

Showroom Product Company Profile

Prod Model:	YPE
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling Capacity:	9000/10000/12000/14000BTU
Eer:	8.9
Power Supply:	110~120V or 220~240V
Application Area:	18~25m2
Size:	320610455mm
Type:	Portable Air Conditioner
Usage:	Room
Certification:	BEB
China Energy Efficiency Standard:	Level 1
Cooling/Heating:	Cooling/Heating
Power Source:	Electrical
Power Type:	DC
Condition:	New
Capacity:	9000BTU-15000BTU
Indoor Machine Noise:	Aroud 50dB

Product Description

Construction Features
1. Self-evaporation, new generation. Water generated inside is reused, no need to empty water,power saves.
2. Water disposed by a spraying motor.The machine works perfectly in wet area with high EER.
3. Remote control could be put aside in the small compartment.
4.Power cord and plug could be put into the machine after use.

Other Features and Functions
1. Rectangular shape looks handsome and silver-printed housing appears luxury.
2. Reversible LCD, indicating temperature and operation status.
3. Anti-frozen function under cooling.
4. Self-diagnosis function and 24 hour On/Off timer.

Loading Quantity
20"/40"GP/40"HQ: 120/248/371

Technical Parameters for European Market
Model		Unit	YPE/YPE1-09C	YPE/YPE1-09H	YPE/YPE1-10C	YPE/YPE1-10H	YPE/YPE1-11C
Cooling capacity		Btu/h	9000	9000	10000	10000	11000
Cooling capacity		W	2630	2630	2930	2930	3220
Heating capacity		Btu/h	N/A	9900	N/A	11000	N/A
Heating capacity		W	N/A	2900	N/A	3220	N/A
Power Supply		V~,Hz,Ph	220j240,50,1	220j240,50,1	220j240,50,1	220j240,50,1	220j240,50,1
Rated input	Cooling	W	1000	1000	1120	1120	1230
Rated Current	Cooling	A	4.3	4.3	4.8	4.8	5.3
Rated input	Heating	W	N/A	980	N/A	1080	N/A
Rated Current	Heating	A	N/A	4.2	N/A	4.7	N/A
EER for Cooling(R410A)		Btu/W.h	8.9	8.9	8.9	8.9	8.9
EER for Cooling(R410A)		W/W	2.61	2.61	2.61	2.61	2.61
COP for Heating(R410A)		Btu/W.h	N/A	9.6	N/A	9.6	N/A
COP for Heating(R410A)		W/W	N/A	2.8	N/A	2.8	N/A
Moisture Removal		L/h	1	1	1.2	1.2	1.4
Air Circulation		m³/h	420	420	420	420	420
Noise	High	dB(A)	54	54	54	54	54
	Middle	dB(A)	50	50	50	50	50
	Low	dB(A)	48	48	48	48	48
Body Size	W×H×D	mm	320×621×455	320×621×455	320×621×455	320×621×455	320×621×455
Package Size	W×H×D	mm	398×670×545	398×670×545	398×670×545	398×670×545	398×670×545
Net Weight/Gross Weiht		kg	24/29	24/29	25/30	25/30	25/30
Appliation Area		m2	18~25	18~25	18~25	18~25	18~25
Loading Quantity		Set/40"HQ	490	490	490	490	490
		Set/40"GP	369	369	369	369	369
		Set/20"	177	177	177	177	177
Remarks: 1.The above technical data are for reference only. Yoau reserves the right to modify them without notice.
2. If you want to use the above data for artwork of carton, user manual etc, please ask Yoau for confirmation.

Technical Parameters for North American Market
Model		Unit	YPE/YPE1-09C	YPE/YPE1-09H	YPE/YPE1-10C	YPE/YPE1-10H	YPE/YPE1-12C	YPE/YPE1-13C
Cooling capacity		Btu/h	9000	9000	10000	10000	12000	13000
Cooling capacity		W	2630	2630	2930	2930	3520	3810
Heating capacity		Btu/h	N/A	9900	N/A	11000	N/A	N/A
Heating capacity		W	N/A	2900	N/A	3220	N/A	N/A
Power Supply		V~,Hz,Ph	110j120,60	110j120,60	110j120,60	110j120,60	110j120,60	110j120,60
Rated input	Cooling	W	1120	1120	1250	1250	1400	1515
Rated Current	Cooling	A	9.7	9.7	10.9	10.9	12.2	13.2
Rated input	Heating	W	N/A	1090	N/A	1220	N/A	N/A
Rated Current	Heating	A	N/A	9.5	N/A	10.6	N/A	N/A
EER for Cooling(R410A)		Btu/W.h	8.9	8.9	8.9	8.9	8.9	8.9
EER for Cooling(R410A)		W/W	2.61	2.61	2.61	2.61	2.61	2.61
COP for Heating(R410A)		Btu/W.h	N/A	9.6	N/A	9.6	N/A	N/A
COP for Heating(R410A)		W/W	N/A	2.8	N/A	2.8	N/A	N/A
Moisture Removal		L/h	1	1	1.2	1.2	1.4	1.5
Air Circulation		m³/h	420	420	420	420	420	420
Noise	High	dB(A)	54	54	54	54	54	54
	Middle	dB(A)	50	50	50	50	50	50
	Low	dB(A)	48	48	48	48	48	48
Body Size	W×H×D	mm	320×621×455	320×621×455	320×621×455	320×621×455	320×621×455	320×621×455
Package Size	W×H×D	mm	398×670×545	398×670×545	398×670×545	398×670×545	398×670×545	398×670×545
Net Weight/Gross Weiht		kg	24/29	24/29	25/30	25/30	25/30	25/30
Appliation Area		m2	18~25	18~25	18~25	18~25	18~25	18~25
Loading Quantity		Set/40"HQ	490	490	490	490	490	490
		Set/40"GP	369	369	369	369	369	369
		Set/20"	177	177	177	177	177	177
Remarks: : 1.The above technical data are for reference only. Yoau reserves the right to modify them without notice
2. If you want to use the above data for artwork of carton, user manual etc, please ask Yoau for confirmation.

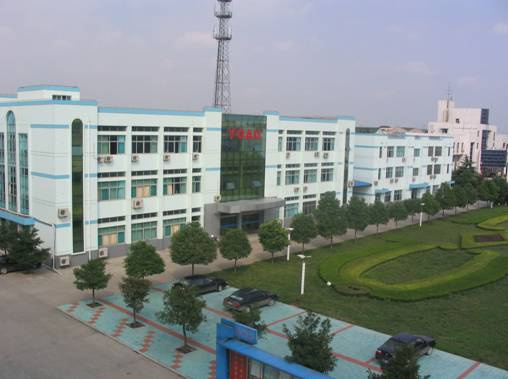

Changzhou Fengrun Import and Export Co., Ltd. is a professional manufacturer of evaporator & condenser for air-conditioner and refrigerator; Steel tube and other cooling system products.

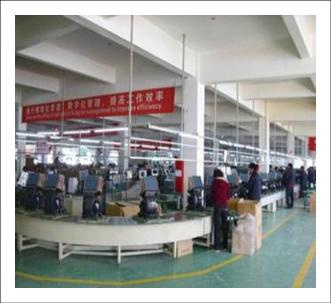

Currently Fengrun has 22 production lines for evaporator & condenser of air-conditioner, the annual production cpacity is able to reach 4 million PCS, which is the largest production base in China. Under this condition, Fengrun also owns a rollbond workshop with annual capacity 3.5 million PCS, a wire on tube condenser workshop with annual capacity 2.5 million PCS, a wire on tube evaporator workshop with annual capacity 2.0 million PCS, a no-frost(fin type) evaporator workshop with annual capacity 1.0 million PCS.

Otherwise, Fengrun owns a workshop which produces steel tube 30 thousand ton per year and also has sone equipments which can produce copper products such as three-way, three-claw, elbows 3 million PCS and Cu-AL connecting tubes 600 thousand PCS per month.
