| Prod Model: |
BZTN900015 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Indoor |
| Type: |
TN |
| Feature: |
Tn Positive |

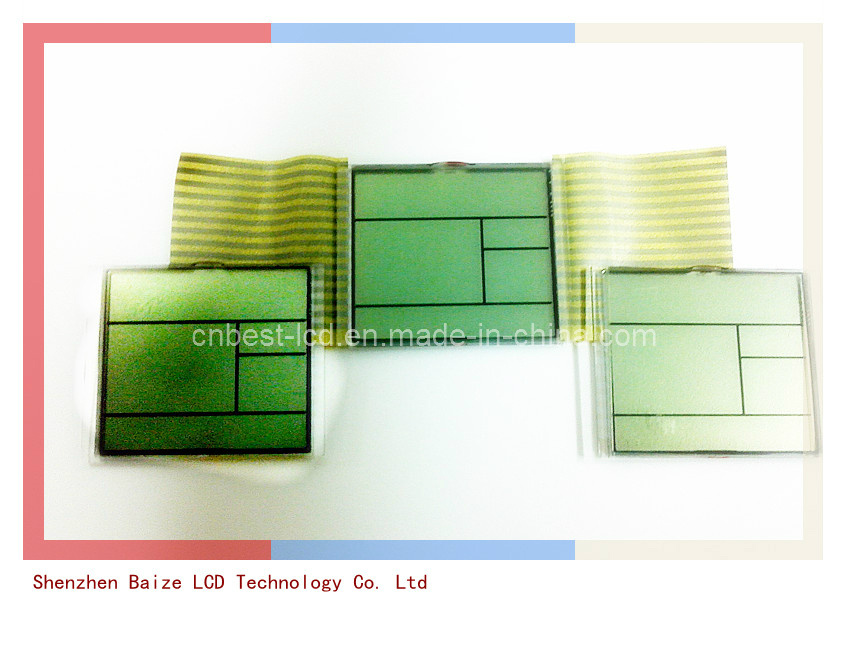

Product Description
Usage For Air-Conditioner Remote Control
Diplay Type: TN/Positive/Reflective
Outline Dimension: 34.40/38.32*31.00*1.1mm
Viewing Size: 32.00*28.00mm
Viewing Angle: 6 O'clock
Connector Type: Heat seal
Pitch: 1.30mm
Driving Method: 18/4duty, 1/3bias
Operate Temp.: 0~50degree
Storage Temp.: -10~60degree
Power supply Vol.: 3.0V.
|
Usage |
For Remote Control |
|
LCD mode |
TN/Positive/Transmissive |
|
Outline size |
34.40/38.32*31.00*1.1mm |
|
Viewing size |
32.00*28.00mm |
|
Viewing Angle |
6 O’ clock |
|
Driving Method |
1/4Duty 1/3Bias |
|
Pitch |
2.54mm |
|
Connector Type |
heat seal |
|
Operate Temp |
0~50degree |
|
Storage Temp |
-10~60degree |
|
Power supply |
Von=1.73V, Voff=1.15V |
|
RoHS compliant product |
Shenzhen Baize LCD Technology Co., Ltd. is a high-tech company that specializes in Liquid Crystal Displays (LCD) and LCD Modules (LCM) including R&D, design, production and marketing. Our products cover all kinds of LCD and LCM, for example, TN, HTN, STN, FSTN, CSTN, TFT, COB, TAB, COG, COF etc, and we work proactively to develop new technologies to fulfill our customers' needs. We also deal in a number of electronic products' development, design and marketing even the importation and exportation for product and technology, etc.
Our products are sold to all over the world and widely applied to all info-display fields including mobile communication(i. e. Mobile telephone), information of home appliance(i. e. Remote control), scientific instruments and meters(i. e. Oscillograph), POS(Point of Sells, i. e. Cash register, gasoline recorder), digital products(i. e. MP3, digital camera), automobile audio systems and meters, Personal Digital Assistant(PDA), etc.
We have a strong experienced team of specialists and technicians who have been engaged in R&D, design, production and marketing in LCD&LCM for over ten years. Our factories set up a complete quality control system and were certificated ISO9001: 2000. From checking of raw material, product designing, making of prototypes to mass production, all these are implemented strictly according to the quality control system. We adequately exert adavantage and mutual supplement in supplying products in ratio of high-powered-price and various kit services for the large number of customers.
Our tenet is a promise to all the customers that we provide high quality products, competitive and favorable price, quick response and punctual delivery, sincere and best service. We are looking forward to more friendly cooperation and mutual benefits with the customers from all around the world.
