| Prod Model: |
PS050TN02-40NM01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
5.0 Inches |
| Resolution: |
800(RGB)X480 |
| Brightness: |
250CD/M2 |
| Interface: |
RGB |
| Contrast Ratio: |
700 |
| Pin Number: |
40 Pins |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Touch Screen Type: |
Resistive |
| Digital LCD Module Type: |
Timing Module |
| Type: |
LCM |
| Display Technology: |
TFT |
| Usage: |
Small-sized LCM |
| Viewing Angle: |
TN＋FILM |
| Response Time: |
10ms |
| Customized: |
Customized |
Product Description

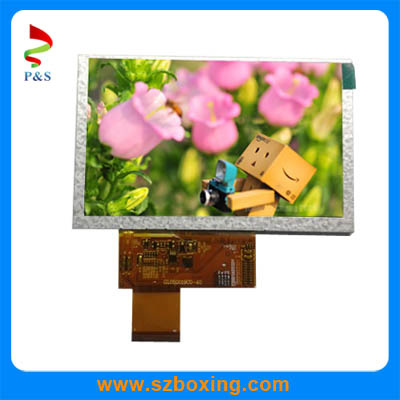

5.0" TFT LCD display with Resistive touch screen
Machnical Specification
LCD Size: 5.0 inch
Outline dimension: 120.7(W) × 75.8(H) × 3.1(D)mm
Active area: 108.0(W)X64.8(H)mm
Resolution: 800 × 3(RGB) × 480pixel
Quality Control
Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!
We will test goods strictly according to our standard inspection before shipment.
If exceed this standard, clients can ask for returning and get new.
Packaging and Delivery:
1). Payment Terms: T/T, Paypal
2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3). Delivery time: 7-10 days for sample, 3-4 weeks for mass production goods.
4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation
5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
|
Item |
System |
Value |
Unit |
Remark |
|
Min |
Typ |
Max |
|
Voltage for LED Backlight |
VL |
25.2 |
27.9 |
31.5 |
V |
|
|
Current for LED Backlight |
IL |
18 |
20 |
22 |
mA |
|
|
LED Life time |
– |
20,000 |
– |
– |
Hr |
|
|
Item |
Symbol |
Value |
Unit |
Remark |
|
Min |
Typ |
Max |
|
Supply voltage |
VDD |
-0.5 |
3.3 |
5 |
V |
– |
|
Operating temperature |
TOPR |
-10 |
– |
60 |
degree |
– |
|
Storage temperature |
TSTG |
-20 |
– |
70 |
degree |
– |
|
Item |
Symbol |
Condition |
Values |
Unit |
|
Min. |
Typ. |
Max. |
|
Viewing angle(CR≥10) |
θL |
Φ=180° |
60 |
70 |
– |
degree |
|
θR |
Φ=0° |
60 |
70 |
– |
|
θT |
Φ=90° |
40 |
50 |
– |
|
θB |
Φ=270° |
60 |
70 |
– |
|
Response time |
TON |
Normal
θ=Φ=0° |
– |
10 |
20 |
msec |
|
TOFF |
– |
15 |
30 |
msec |
|
Contrast ratio |
CR |
400 |
700 |
– |
– |
|
Color Chromaticity |
WX |
0.26 |
0.31 |
0.36 |
– |
|
WY |
0.28 |
0.33 |
0.38 |
– |
|
Luminance |
L |
– |
250 |
– |
cd/m2 |
|
Luminance uniformity |
YU |
70 |
75 |
– |
% |
