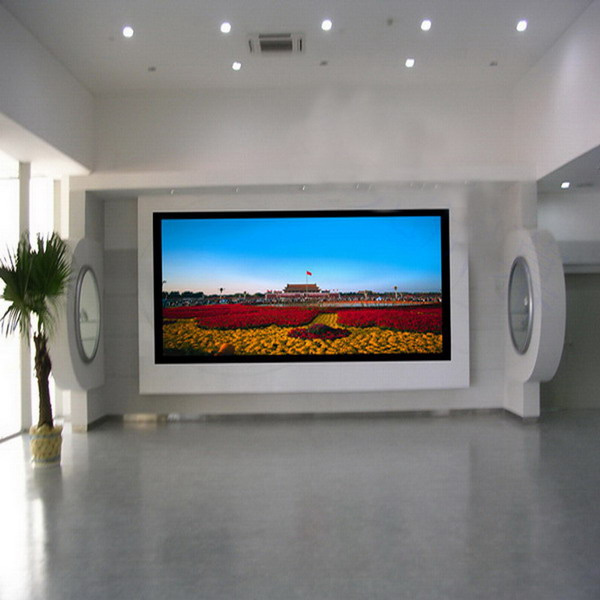

New Cabinet P3.91 LED Display
Price: |
US $ 55/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
PQZ-3-16S |
Module Size: |
250mm X 250mm |
Cabinet Size: |
500mm X 1000mm X 130mm |
Module Resolution: |
64X64 |
Cabinet Resolution: |
128X128 |
Brightness: |
1500 CD/Sq.M |
Grey Processing: |
14 Bit |
Contrast: |
2000:1 |
Refresh Rate: |
>3200 Hz |
Working Voltage: |
AC 85-265V |
Tube Chip Color: |
Full Color |
Display Function: |
Video Display |
Scanning Mode: |
1/16 Scan |
System Operating Platform: |
WIN XP |
Display Type: |
LED Video Display |
Application: |
Shopping Guide |
IP Rating: |
IP43 |
Certification: |
FCC |
Pixel Pitch: |
3.91 mm |
Pixel Configuration: |
SMD 2121 Black, 1r, 1g, 1b |
Pixel Density: |
65536 Dots/M&Sup2 |
Product Description

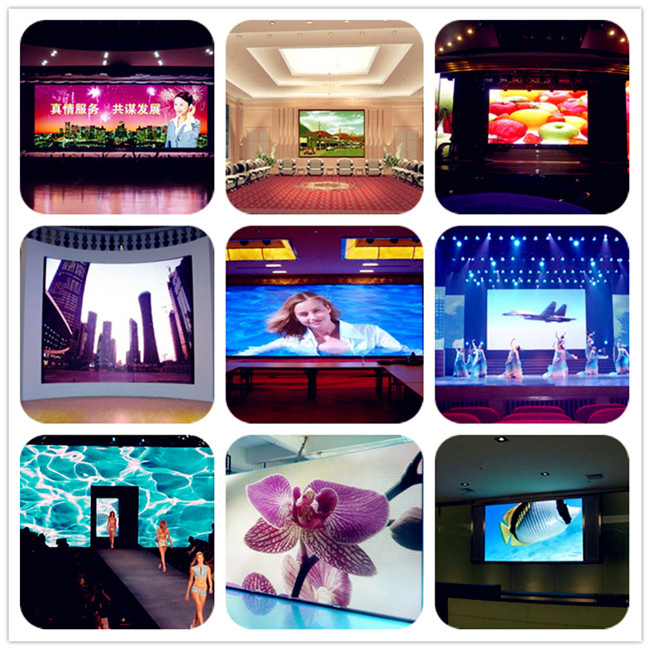

TEEHO OPTOELECTRIC NEW CABINET P3.91 LED DISPLAY ApplicationStage & Rental
Stadium Project
Municipal Project
Advertising & Media
Meeting & Exhibition
Commercial Property
Broadcast & TV Project
| Product Specification |
1 | Pixel Pitch | 3.91mm |
2 | Pixel Configuration | 1R1G1B/SMD2121 Black |
3 | Density | 65,536 pixel/m2 |
4 | Module Size(L×W)mm | 250mm×250mm |
5 | Cabinet Size(L×W×H)mm | 500mm×1000mm×130mm |
6 | Module Resolution | 64×64 |
7 | Cabinet Resolution | 128×128 |
8 | Driving Method | 1/16 Scan |
9 | Driving IC | MBI 5124 |
10 | Brightness | 1500CD/m2 |
11 | Contrast | 2000:1 |
12 | Brightness Adjustment | Auto and Manual |
13 | Power Consumption | Max Power:<1000W |
Average power: <400W |
14 | Cabinet Weight | <32kg/m2 |
15 | Color Temperature | 3200K-9300K |
16 | Horizontal Viewing Angle | 120º |
17 | Vertical Viewing Angle | 120º |
18 | Grey Processing | 14bit |
19 | Control Distance | Cable100m,Multimode500m,Single mode 2km |
20 | Frame Frequency | 65 Hz |
21 | Refresh Rate | >3200Hz |
22 | Working Voltage | AC85-265V |
23 | Control Mode | Synchronous/Asynchronous |
24 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve |
Users can choose the recommended curve or adjust it based on actual situation |
25 | MTBF(Mean Time Between Failures) | >50000 hours |
26 | Life Span | 100,000 Hours |
27 | Operating Temperature | Working : -20 - 65 ºC |
Storage : -40 - 85 ºC |
28 | Environment Temperature | -30ºC to 60ºC; humidity Rh10% to 95% |
29 | Remote Control | Can realize remote control and send alarm signal to operators in case of failure logging (Be customized) |
30 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (customized) |
31 | Operating System Platform | Windows NT,Windows2000,Windows XP,Windows7 |
32 | Protection | Waterproof, dustproof, high temperature prevention, anticorrosion, smoulderproof, anti-static, shockproof, lightning proof, smoke alarm and temperature alarm. (customized) |
33 | Descriptions | 1.This product is wide applied to advertising media, government projects 2.Protection Level:IP43 3.Designs of cabinet sizes are based on installation sites/screen sizes 4.The parameters above are actual tests. |
34 | Warranty | 24 months |
You may concern!!!
---Competitive price lead to high cost performance
---Professional purchasing suggestion, one-stop solution site
---Qualified product within less than 3% customer complains.
---6 years experience of production, 10000 sqm per month capacity
Welcome to visit!
Shenzhen Teeho Optoelectronics Co. Ltd(short for Teeho Optoelectronics), found in 2009, is a high-tech private enterprise specialized in LED Screens manufacturing with a ¥ 11 million of registered capital and over 300 employees in Shenzhen. It has been dedicating itself to offering one-stop LED display solutions to its customers including R&D, prototyping, assembly, sales and technology support across the globe.
Teeho industrial park is located in Bao'an, Shenzhen, the most populous LED industrial area, with a cover of more than 10, 000 m2 and over 300 million of amount of sales per year, fully equipped with modern automatic assembly lines with the manufacturing capabilities of 8000 m2 per month
Teeho Optoelectronics spans a wide range of products covering: Indoor Full-Color LED Displays, Out Full-Color LED Dislays, LED Television Displays etc, applied to governmental institutions, corporate image projects, business ads, media activities, cultural and entertainmental places, stadiums, stations and airports etc.
Teeho Optoelectronics is focusing all efforts to technology-leading strategies of production by relying on the three-tier talent strategy, gathering high profile professional talents, which makes a foundation of new R&D of products and specially custom-made products. The R&D teams of Teeho electronics have been dedicating themselves to one-stop solutions, and have obtained tens of certifications of products and innovative patents. Moreover, they have outstandingly achieved in high-end indoor full color display solutions.
Teeho electronics has been promoting itself by advanced technology and scientific managements and has the following certifications: ISO9001: 2008 Quality System Certification, ISO1400: 2004 Environment System Certification, CCC, CE, FCC, RoHS etc. With high quality and perfect service, Teeho Optoelectronics has built lots of sales and service networks and its high-quality products has been exported into more than 80 countries and areas such as the United States, India, New Zealand. Japan, Thailand, Taiwan and Hongkong.
Teeho Optoelectronics Co., Ltd has been marching on under core values of Integrity, Pragmatic, Harmony, Creativity to guide our staff members and to devote itself to leading status in this industry, to ensure that our client will be fulfilled with the high-quality products and best service. With the horizontal developments in industrial chain and a variety of for-profit models, we vigorously promote the construction of brand culture, strive to become a world-class brand researched and developed independently, to become the most professional LED screens and one-stop solutions supplier, which makes a contribution to competing of national brands in globe markets.
