Prod Model: |
Mesh 50 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Pitch: |
Pitch 50mm |
Brightness: |
1800 Nits |
Unit Panel Size: |
4800mm(H) X 200mm(W) |
Power Consumption: |
Max 120W/Sq.M |
View Angle: |
120degrees |
Drive Model: |
Constant Current |
Signal Type: |
AV, S-Video, VGA, Cvbs, ,HDMI, DVI |
Working Voltage: |
DC 24V |
Weight: |
8.5kg/Sq.M |
Type: |
New Arrival Foldable LED Display |
Tube Chip Color: |
Full Color |
IP Rating: |
IP65 |
Pixel Configuration: |
1R, 1G, 1B |
Display Function: |
Video Display |
Scanning Mode: |
Static Scan |
Display Type: |
LED Video Display |
Application: |
Advertising |
Certification: |
RoHS |
Pixel Pitch: |
50 mm |
Average Power Consumption: |
40W/Sq.M. |
Pixel Density: |
400 |
Product Description

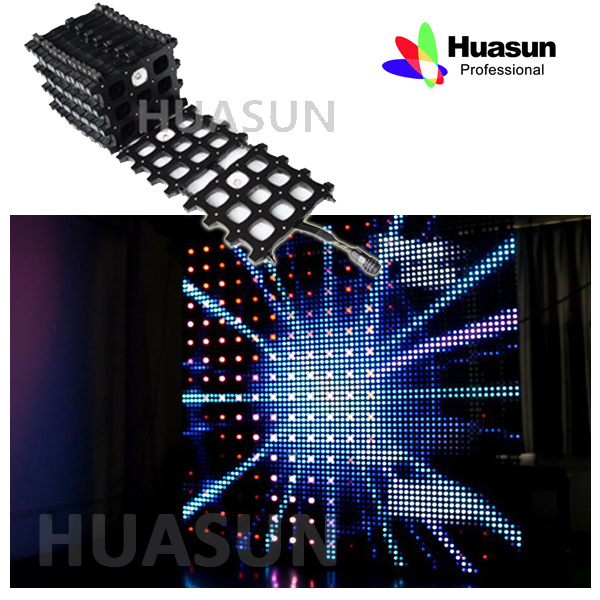

New arrival Foldable LED display
Features:
1.Foldable, soft,different irregular-shape available.
2.Light,8.5kg/sqm
3.Save space,convenient for transportantion
4.Magnet Connection, Easy Installation:
5.An Large powper LED Light can be added.Showed large dots image.
6.Abosutely Outdoor with Ip65
7.Integrated design with the hanger and Power
8.Same control systerm for ligting and LED Display
Applications:
Outdoor application,Concerts, events, trade shows, arenas, theaters, universities, ads, etc.
Introduction-Galaxias Series Flex LED Display
Multiple resolution:
Galaxias4-P4.6mm,
Galaxias6-P6.25mm,
Galaxias7-P7.8125mm,
Galaxias9-P9.375mm,
Galaxias12-P12.5mm,
Galaxias16-P16mm
All with CE, RoHS, FCC, Awarded Patented
Product Vedios On Youtube:
Rubik-6 P6.64mm: https://www.youtube.com/watch?v=5UsSxVxmkoE
Rubik-6 P6.64mm New show:https://www.youtube.com/watch?v=47N5ZcX0rnc&feature=youtu.be
Rubik-10 P10mm: http://youtu.be/mssX2NxlWuE
Galaxias-16 P16mm: https://www.youtube.com/watch?v=qdGUix3EN00
Galaxias-12 P12.5mm: https://www.youtube.com/watch?v=YYlRsRxv55k
Galaxias-9 P9.375mm: https://www.youtube.com/watch?v=Ay-dLT44T6E
Galaixas-7 P7.8mm: https://www.youtube.com/watch?v=S5fR4EC2vv4
Galaxias-6 P6.25mm: https://plus.google.com/110273546312846125540/posts/F8qo5QMin6D
Galaixas-6 work in bright sunshine: https://www.youtube.com/watch?v=KwIm3waNLFY&feature=youtu.be
Galaxias-4 P4.6mm: https://www.youtube.com/watch?v=mW0J_lsVOX8
Galaxias-4-Stairs Application:https://www.youtube.com/watch?v=JYQlRdkWYEA&feature=youtu.be
Galaxias installation:http://youtu.be/M8WXfkJmhtA
Zeus-18 P18.25mm: https://www.youtube.com/watch?v=zixE_PZJMFk
Apollo-20 P20.83mm: https://www.youtube.com/watch?v=wJZt-S9ASik&feature=youtu.be
Apollo series: http://youtu.be/0EcjlnM5WrEs
Apollo-37.25: https://www.youtube.com/watch?v=kJXbTs58x4M&feature=youtu.be
Video Grid P25 on Stage: https://www.youtube.com/watch?v=Z0qh_vBzFAU&feature=youtu.be
Mesh-50 Spot lighting:https://www.youtube.com/watch?v=Y6UFemlxFNU&feature=youtu.be
Mesh 50 |
|
Pixel pitch | 50mm |
Pixel Composition | RGB 3-in-one SMD LED |
Density | 400 pixels/sq.m |
Brightness(white) | 1800 Nits |
Optical View Distance | 40 meters |
Work Voltage: | DC 24V |
Weight (kg/sq.m) | 8.5 kg/sq.m |
Recommendation Size | 200mmX4800mm(WxH) |
Average Power consumption | 40W/sq.m |
Max Power Consumption | 120W/sq.m |
Visual Angle | 120° |
Ingress Protection | IP65 |
Ambient temperature | -20deg.- 50deg. |
Drive Model | Constant Current |
Refresh rate | Static |
Power Systems | Power-1000, Power-2000 |
Signal type | AV, S-Video, VGA, CVBS, ,HDMI, DVI |
Mesh 50 Spotlight |
|
Pixel pitch-Big dot | 200mm |
Pixel pitch-other led | 50mm |
Pixel Composition | RGBY 4-in-one SMD LED |
Density | 400 pixels/sq.m |
Brightness(white) | 77LM RGB |
Optical View Distance | 200 meters |
Work Voltage: | DC 24V |
Weight (kg/sq.m) | 8.5 kg/sq.m |
Recommendation Size | 200mmx4800mm(WxH) |
Average Power consumption | 45W/sq.m |
Max Power Consumption | 90W/sq.m |
Visual Angle | 120° |
Ingress Protection | IP65 |
Ambient temperature | -20 deg.~50deg. |
Drive Model | Constant Current |
Refresh rate | Static |
Power Systems | Power-1000, Power-2000 |
Signal type | AV, S-Video, VGA, CVBS, ,HDMI, DVI |
