| Prod Model: |
JHD19264-G01BSW-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: |
192X64 |
| LCD Type: |
Negative 192*64 FSTN LCD Display |
| Pixel: |
12288 |
| Model Number: |
Jhd19264-G01bsw-B |
| Drive Power Supply Voltage: |
3.0V/3.3V |
| Interface: |
Option 30pin 0.5mm Pin Gap |
| Drive Type: |
1/64 Duty, 1/9 Bias |
| Color: |
Blue with White Character |
| Active Area: |
97.486(W)X 32.462(H)Mm |
| Back Light: |
White |
| Type: |
Graphic |
| Display Technology: |
COG |
| Usage: |
Small-sized LCM |
| Viewing Angle: |
6.00 O'clock |
Product Description

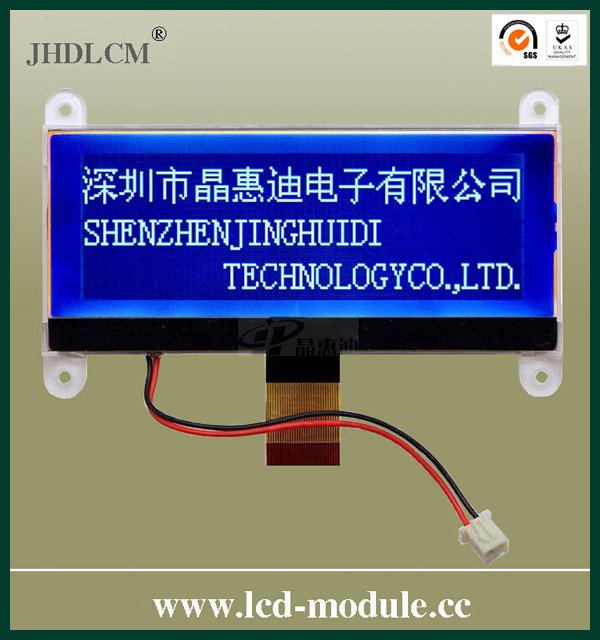

Negative 192*64 FSTN LCD display JHD19264-G01BSW-B
Packaging and Delivery:
1. Packaging Details: Carton, Capboard, EPE, Blister Tray. About how many products can be contained in one package, it is up to different size of the products.
2. Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
Specifications:
1- negative 192*64 FSTN LCD display
2-High Contrast
3-High Resolution
4-Interface: Serial
5-Backlight replaceable
Negative 192*64 FSTN LCD display is elaborated as follows:
Advantages:
1. Backlight Replaceable
2. WLED backlight, with LED driver
3. LVDS, MCU
4. Wide view angle
5. High Quality
6. Produced in our own factory
7. Reasonable Price
Payment Terms: T/T, L/C etc.
Shipping: Any shipping way you can choose, UPS/ FedEx/ DHL/ EMS.
PS: The shipping fee which you must pay for it. But we will give you the best price of shipping fee, pls do not worry about it.
|
Main Parameters |
|
Item |
negative 192*64 fstn lcd display |
|
Model name |
JHD19264-G01BSW-B |
|
Color |
blue with white character |
|
Pixel |
8192 |
|
Resolution |
192*64 |
|
Contrast Ratio |
200:1 |
|
Brightness |
white BL |
|
Outline Dimension |
108.6(W)X65.0 (H)X4.8(T)mm |
|
Viewing Area |
102.89(W)X 36.06(H)mm |
|
Active Area |
97.486(W)X 32.462(H)mm |
|
Resolution |
192*64 |
|
Dots |
192*64 |
|
Pitch |
0.41mm |
|
Drive Power Supply Voltage |
3.0V/3.3v |
|
Viewing Angle |
6.00 o'clock |
|
Operation Temperature |
-20 °C ~ +70 °C |
|
Storage Temperature |
-30 °C ~ +80 °C |
|
Display Mode |
fstn, negative, blue with white character |
|
FPC Lenght |
25mm |
|
Response Time |
100ms |
|
IC |
ST7565R |
|
IC Packaging |
COG |
|
Back Light |
white LED (three) |
