| Prod Model: |
Infrared heater K850 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Natural Gas Heater for Industry |
| Co: |
Less Than 80ppm |
| Life: |
Above 11000hr |
| Conversion Rate: |
90% |
| Chx: |
Less Than 50ppm |
| Nox: |
Less Than 10ppm |
| Gas Consumption: |
0.7kg/Hr |
| Plate: |
Ceramic Plate with Catalyst |
| Calorific Value: |
12800kcal/Hr |
| Working Pressure: |
2800~5000PA |
| Function: |
Hot Air Boiler |
| Fuel: |
Gas-Fired |
| Installation: |
Packaged Boiler |
| Drum Placement: |
Vertical Boiler |
| Pressure: |
Pressure |
| Usage: |
Industrial |
| Structure: |
Ceramic |
| Media: |
Infrared |
| Water Circulation: |
Infrared Burner |
| Manufacturing Level: |
CE |
| Burning Style: |
Infrared Burner |
Product Description

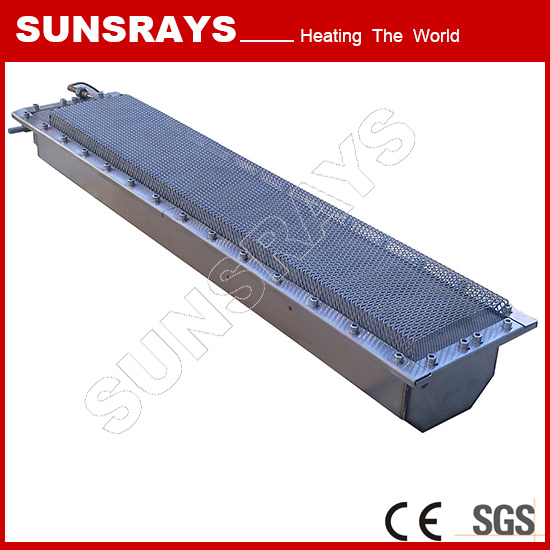

Natural gas heater for Industry
K series composite metal net gas infrared heating system is mainly used for industrial heating, such as curing coating, pretreatment drying, food baking lines, textile printing and dyeing pre baking, baking carpet glue, disposable medical gloves manufacturing lines, asphalt pavement heating and repair etc..
K850B type composite metal net group burner is the largest and most powerful burner in the K series composite metal net group. It is the bottom air intake type. The utility model has the advantages is bottom intake does not affect the burning surface area, convenient installation and industrial ovens, and introduce injection pipe, a nozzle or pre mixer exposed, easy installation, commissioning and maintenance.
K850 type burner has the following advantages:
Ignition and operation monitoring system.
Edge closure device to match the fabric's range.
Can be heated and cooled in 2 seconds.
No splash of water or gas quality changes.
The specifications:
| Model | K850 |
| Gas consumption | 0.7kg/hr |
| Calorific value | 12800kcal/hr |
| Size | 760mm x 145mm x 180mm |
| Weight | 6kg |
| Conversion rate | 90% |
| Working pressure | 2800~5000pa |
| Color | Silver |
| Customized | Yes |
Natural gas heater for Industry Feature
Security:
The end of the original patented technology, pre mixed mode, to achieve the safety of gas air transmission. The extinguishing and tempering protection device can realize the prevention of accident in advance.
High efficiency:
The surface of the burner nickel net or 309 stainless steel net can guarantee that the radiation wavelength is in the range of user's requirement, and the best heating effect has been achieved.
Energy-saving:
Artificial precisely the combustion air, the exact ratio of air and gas, so as to achieve with the lowest energy consumption to achieve the maximum amount of heat.
Environmental protection:
The whole set of system NOx, COX emission is lower than the international relevant industry standards.
Wide range of application:
Can choose to use natural gas, liquefied gas, artificial gas, such as a variety of gas.
Precise control:
Through the transducer, actuator and butterfly valve, all over the furnace temperature system, PLC control module, to achieve the precise control of combustion.
Beautiful, strong, durable:
All stainless steel shell, all metal mesh heat storage, more solid and durable.
Other products you may be interested in:
| Model | Size | Weight | Gas consumption | Calorific value | Uses |
| SGR1602 | 560x135x185mm | 8.0kg | 0.46kg/hr | 5400kcal/hr | powder coating or food drying ect |
| K580 | 580 x 140 x 180mm | 6kg | 0.45-0.6kg/hr | 5-8kw/hr | Industrial heating |
| P400 | 410x100x70mm | 3.9kg | 0.3kg/hr | 3.0-3.5kw/hr | Modularization,Large area heating |
| V200 | 210x 160 x 60mm | 1.4kg | 0.25kg/hr | 4.5-4.8kw/hr | BBQ |
| E30 | 456x 173x260mm | 14.5kg | Customized | Customized | Hot air treatment |
| TC200 | 270 x 170 x 55mm | 1.3kg | 0.25kg/hr | 3.2kw/hr | Coffee baking machine or Food baking etc. |
Company information:
Sunsrays heating science and technology company is a professional provider of industrial i.R.Heating solutions.Our products and systems are mainly used in the process heating fields such as coating industry, food industry, etc.
Sunsrays heating ltd.Has lots of patents.We have also built the cooperative relationship with some universities and research instituts.
We believe that by our unremittingly innovation, outstanding products quality, and thoughtful customer service, sunsrays will by all means be the best choice of industrial i.R.Heating systems for customers though out the world.
