| Prod Model: |
A4-M8CS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Camera: |
1/3" Color CCD |
| Casing: |
Zinc Alloy |
| Waterproof: |
IP 45 |
| Ambient Temperature: |
-30oc~70oc |
Product Description

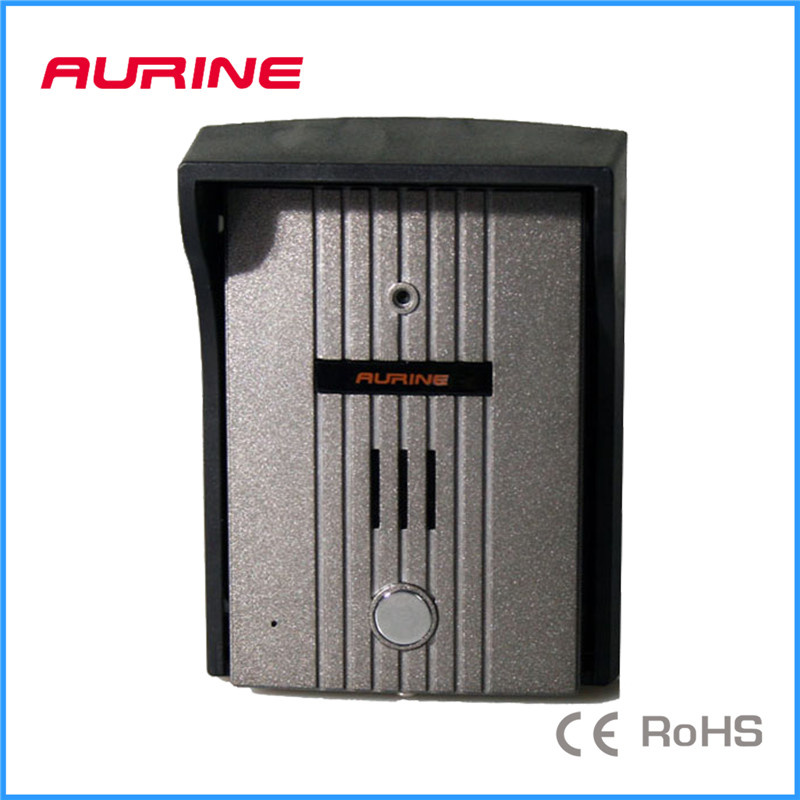

Analog Rain Cover Video Door Bell Intercom For Villa
FEATURES
Color Camera
Zinc Alloy Panel
IP45 Water Proof
Vandal Proof
Dry Contact Unlock Signal
CONNECTION
CABLES
Description |
|
Specification |
Length(m) |
Cable from Outdoor Camera to Indoor Phone |
—— Blue |
No.of Cores:4 Diameter:AWG20 |
L≤50 |
No.of Cores:4 Diameter:AWG18 |
L≤100 |
SPECIFICATIONS
Camera |
1/3" Color CCD |
Input Voltage |
DC13. 5V±0. 5V(fed By Indoor Phone) |
Minimum Illumination |
1LUX (W/IR LED F1.2) |
Connection |
4-Wire(polarized) |
Call Tone |
same as the ringtone of Indoor Phone connected |
Communication |
handsfree |
Ambient temperature |
-30ºC~70ºC |
Installation |
Surface mount |
|
INSTALLATION
| Outdoor camera specification sheet |
| A4-M8CS |
|
|
| Marking instruction:"√"means support;"×"mean not support |
| Camera | 1/3" color CCD |
| Lux | 1LUX |
| Backlighting | W/IR LED F1.2 |
| Resolution | 420 line |
| View angle | 62~90° |
| Operating voltage | DC13. 5V±0. 5V |
| Door lock | Dry contact |
| Tamper alarm | Yes |
| Answer type | Hand free |
| Operating temperature | -30~70ºC |
| Working Humidity | 10%~90% |
Dimention mm
(W×H×D) | 109×145×51.5mm |
| Install mode | Surface mounting |
Embedded box size mm
(W×H×D) | 109×145×51.5mm |
