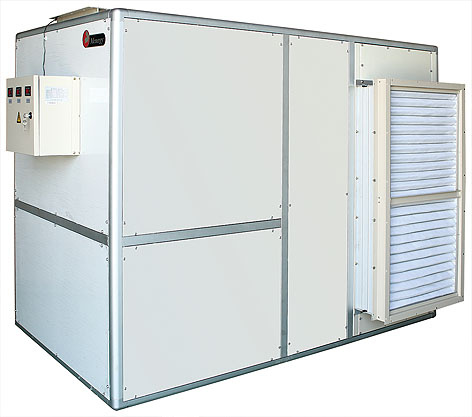

Mushroom Air Conditioner

Prod Model:	MSMZRW-60L
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Cabinet Air Conditioner
Operating Voltage:	380/400 VAC
Mounting:	Floor Standing
Certification:	CCC

Product Description

Mushroom Air Conditioner

MSMZRW-60BL÷ MSMZRW-120BL
Cooling capacity range: 90.0kW ÷ 120.0kW
Heating capacity range: 113.0kW ÷ 165.0kW
Compressor: Scroll type
Refrigerant: R410A, R407c, R22

Product Features:

* Rightly according to this demand of modern agricultural development, Menergy put forward geothermal air-conditioning system which is widely
Applied in scaled agriculture, meeting the need of all-year-round, all-day and off-season producing.
* Using underground water or underground pipe, air-conditioning system apply shallow ground heat energy in modern planting.
* For the steady performance, reliability and low operating cost, it is greatly reputed by customers.
* Using groundwater, with the simulated designing concept of independent double system, quartic system and other multi-system,
* Menergy geothermal Agricultural Artifical Environment Air Conditioning system fully takes the demand for temperature,
Humidity and percentage of CO2 of Agricultural's growth into consideration.
* The air temperature, humidity and content of CO2 is real-time supervised. Via modifying the operating frequency of fan unit,
Fresh air can be offered, thus to reach the excellent load match.
* Adopting geothermal energy makes the efficient ratio reaches above 4.0, saving 30% comparing to using air energy;
* Equipped with hot water coil, groundwater may precool/preheat the air in summer/winter in order to improve the air quality and to
Effectively save energy by reducing units operation.

Model		MSMZRW-60L		MSMZRW-120L		MSMZRW-150L
Unit cooling capacity	kW	90		120		150
Unit heating capacity	kW	113		160.8		204.5
Pipe type		Refrigerant coil pipe	Water coil pipe	Refrigerant coil pipe	Water coil pipe	Refrigerant coil pipe	Water coil pipe
Rated cooling capacity	kW	45	45	60	60	75	75
Rated heating capacity	kW	50	63	58. 8	102	73.5	131
Air flow(adjustable)	m 3/h	air flow:2000~6000;air return:0~6000;fresh air:0~6000		air flow;3000~10000;air return:0~6000;fresh air:0~10000		air flow;5000~15000;air return:0~8000;fresh air:0~15000
External pressure	Pa	200		200		200
Rated input power for cooling	kW	11. 5	2.4 5	15	3. 75	18.8	6
Rated input power for heating	kW	12. 5	2.4 5	14. 7	3. 75	18.4	6
Rated input current for cooling	A	19 .6	4 .5	23. 2	5.8	28.6	9.1
Rated input current for heating	A	2 2.0	4 .5	22. 7	5.8	27.9	9.1
Noise	dB(A)	58		68		69
Product size(L×W×H)	mm	1800x1000x1660		2400×1190×2460		2560×1536×2454
Unit weight	kg	680		710		1010
Water flow	m3/h	6.3m3/h for cooling&2.76m3/h for heating		11.4m3/h for cooling&4.76m3/h for heating		16.1m3/h for cooling&9.4m3/h for heating
Refrigerant charge	kg	2.1×4		3 . 5×4		4.35×4
Max working pressure of exhaust side	Mpa	2.8
Max working pressure of suction side	Mpa	0.8
Waterproofing grade		IPX4
Electric shock resistance		I
Cooling water inlet/out pipe size	in	R1 -1/2		R2-1/2		R2-1/2
Hot water inlet/out pipe size	in	R1 -1/2		R2-1/2		R2-1/2
Condensate water pipe	in	R1		R1-1/4		R1-1/4
Notes:
1.Refrigerant coil pipe cooling conditions:air inlet dry bulb temp.27ºC,wet bulb 19ºC,entring water temp.30ºC,leaving water temp.35ºC.
2.Refrigerant coil pipe heating conditions:air inlet dry bulb temp.20ºC,wet bulb 15ºC,entring water temp.10ºC,water flow 2.76m3/h.
3.Water coil pipe cooling conditions:air inlet dry bulb temp.35ºC,wet bulb 28ºC,entring water temp.15ºC,leaving water temp.35ºC.
4.Water coil pipe heating conditions:air inlet dry bulb temp.20ºC,wet bulb 15ºC,entring water temp.60ºC,water flow 2.76m3/h.
5.All models, sizes, dimensions, and specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications
