| Prod Model: |
SD-502A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
PRO Conference Speaker |
| Model No: |
SD-502A |
| Loudspeaker Box Type: |
Array Loudspeaker |
| Grille: |
Punched |
| Recommand Amplifier: |
150W-650W AMP |
| Package: |
Carton or Flight Case |
| Chargeable: |
Chargeable |
| Warranty Time: |
12 Months |
| Compatible Product: |
Universal |
| OEM: |
Yes |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
2.1 Channel |
| Speaker Material: |
Metal |
| Application: |
Commercial |
| Certification: |
CCC |
| Monitor: |
LCD Screen |
| THD: |
<0.005% |
Product Description
Professional Conference/Theatre/Scholl hall Sound System
| 502A Technical Specifications |
| System Performance |
| Frequency Response | (+/-3 dB)1 150 Hz - 17 kHz |
| Frequency Range | (-10 dB)1 110 Hz - 20 kHz |
| Nominal Dispersion | 120° H x 70° V |
| Loudspeaker EQ | Required |
| Overload Protection | 4-ampre AGC 4 (Buss) or 3AG (Littlefuse) |
| Long-Term Power Handling2 | 150 W (600 W peak) |
| Sensitivity (SPL / 1 W @ 1 m)3 | 90 dB SPL |
| Maximum SPL @ 1 m4 | 112 dB SPL (118 dB SPL peak) |
| Nominal Impedance | 8 Ω |
| Transformer Taps (70/100 V) | CVT-5 70V/100V transformer available |
| Driver Compliment | Five (5) 4.5" (114 mm) helical voice coil drivers |
| Enclosure | Mica-reinforced structural foam, textured |
| Grille | Powder-coated steel grille |
| Environmental | Indoor use only |
| Connectors | Two (2) parallel-wired NL4 Neutrik® Speakon® connectors |
| Two (2) parallel-wired barrier strips |
| Suspension / Mounting | Four (4) 8 mm threaded inserts (back) |
| Dimensions | 23.8" H x 5.8" W x 7.1" D |
| (603 mm x 146 mm x 179 mm) |
| Net Weight | 15 lb (6.8 kg) |
| Shipping Weight | 18 lb (8.3 kg) |
|
|
Product Description

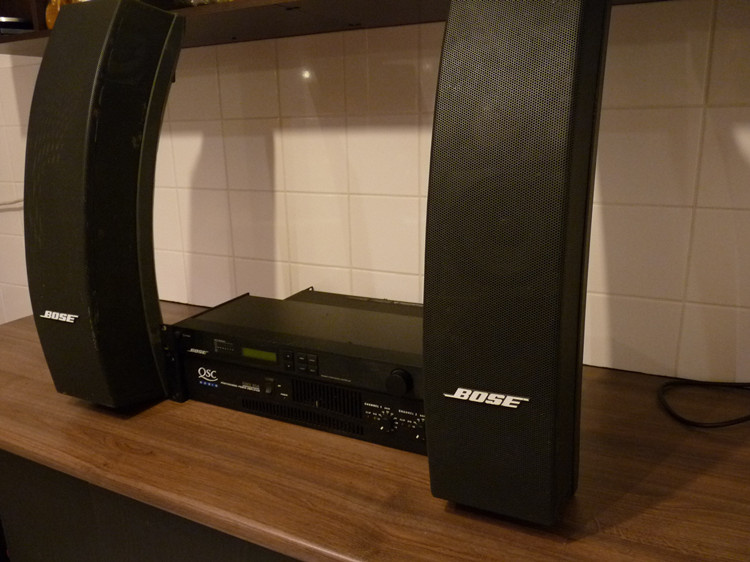

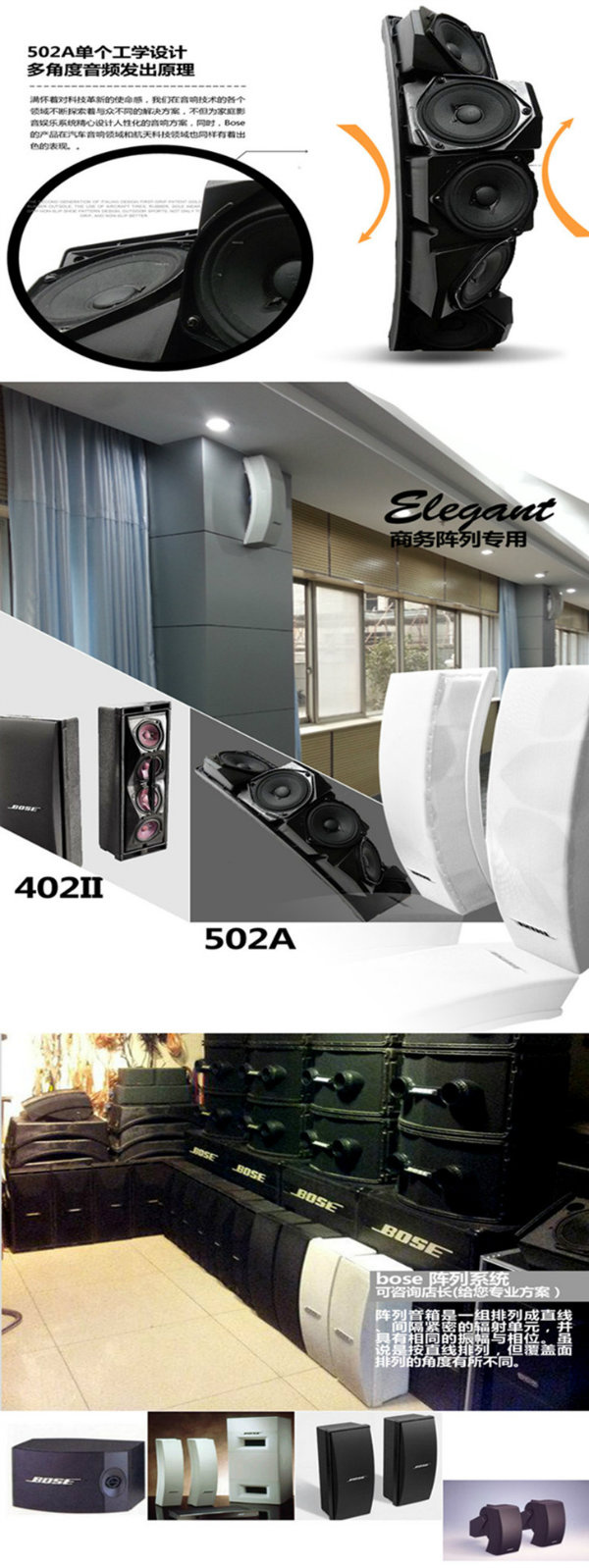

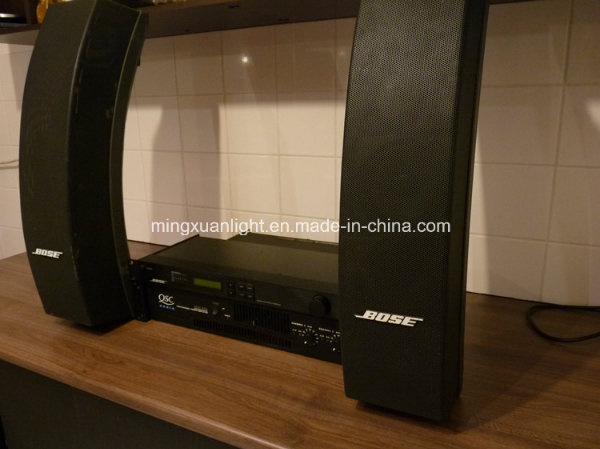

502A Style Professional Conference Speaker
502A Style Background/Foreground/Conference Speaker
mid/high-frequency loudspeaker
Indoor speaker
Product Overview
The Panaray 502 A is a mid/high-frequency loudspeaker designed for indoor permanent installations that require a small form factor for aesthetic and audience sight line considerations.
Its Articulated Array design provides a wide 120° x 70° pattern to effectively cover many smaller
venues with a single loudspeaker.
Key Features
Articulated Array design provides wide 120° x 70° pattern optimized
for smooth band to band coverage
Five 4.5" (114 mm) full-range drivers for unsurpassed natural
sound quality. Elimination of tweeters and crossover provides lifelike
vocal and instrument reinforcement
Mid/high configuration allows bass management and design flexibility.
Use with the Panaray 502 B loudspeaker, or the MB4, MB12 or MB24
modular base loudspeakers for full-range reinforcement
Sleek, elegant design for architectural compatibility. Modular
components for system design flexibility
Full line of designed accessories for easy installation
Requires active equalization for best performance
Applications
？Houses of worship
？Auditoriums
？Restaurants and bars
？Hotels
？Atriums and malls
？Foreground music.MX are committed to bring you the best speakers and amplifiers at the best possible price.
MX sell directly to you at factory prices. NO MIDDLE MEN.
MX will stick by you and won't let you down.

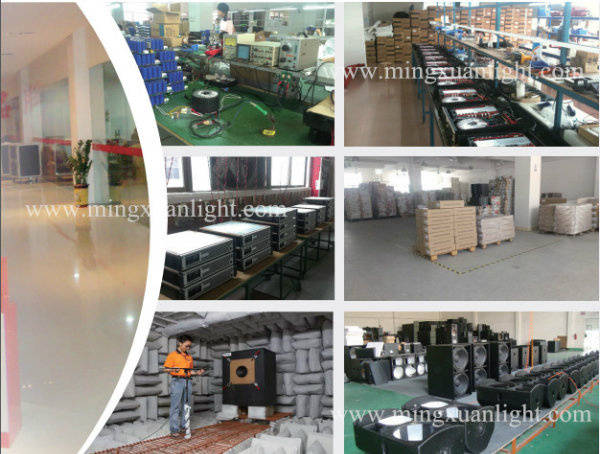

Guangzhou MingXuan Stage Light Equipment Factory is specialized in LED Stage Lightings, our factory located in Guangzhou, Guangdong province, welcome to contact us for details!
