Multi Touch Overlay Kit for Touch Screen Monitor/LED Monitor/Smart TV

Prod Model:	Hv series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Touch Points:	2 10 Points Touch
Software:	Free Education
LED Resolution:	1024 X 1080
Touch Resolution:	32767 X 32767
PC Connection:	International OPS Mini PC
Touch Frame Warranty:	3 Years
Language:	28 Languages
Certificates:	CE, FCC, ISO, RoHS
Touch Tool:	Finger/Pen Free Battery/Any Opaque Things
System:	Windows/Mac/Linux/Andrioid
Screen Size:	>60 Inches
Application:	Education and Training System
Screen Type:	Infrared
Resistive Touch Screen Type:	Digital
Customized:	OEM Is Available

Product Description

Multi Touch Overlay Kit for Touch Screen Monitor/LED monitor/Smart TV

Product Description
Riotouch Multi Touch Overlay Kit Touch Screen 46 Inch For POS, ATM, KTV, Lottery And Gaming Machine  Etc.

Brief description:
IR Large multi touch screen frame
1.2- 32 touch points
2. OEM service
3.IR multi touch screen panel


Riotouch Multi Touch Overlay Kit Touch Screen 46 Inch For POS, ATM, KTV, Lottery And Gaming Machine  Etc.

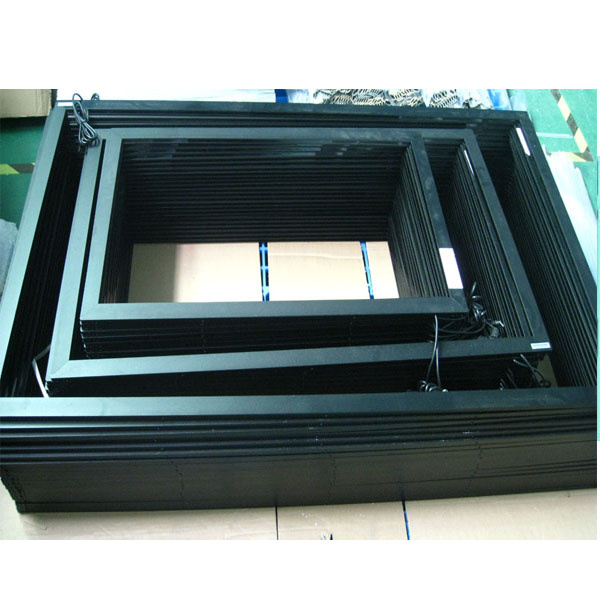

RioTouch L series large size infrared multi touch screen panel kit is the latest developed infrared touch screen, its slim frame can match completely the monitors or displays in thin-frame, ideally upgrading the visual appearance of whole device. Unlike most other technologies, the Infrared based design offers superb image clarity. The original image quality is preserved because there is no film in front of the display. After a simple installation, the screen can be operated with either a finger, with or without glove or a pen.

Available size: 32",37",40", 42", 46", 47", 50", 52", 55", 58",60", 61", 63", 65", 84", 100", 103", 110", 150".

Features: Infrared touch Finger touch. Easy to install or remove, no need to open up the monitor or computer case. Eliminates the electrostatic and reduces the radiation generated from the monitor. Activated on touch by almost anything - finger, fingernail, gloved hand or stylus. Remain left-right mouse-button functions on screen.

Touch function	1. support two or multi touch point write under Win7&8                                                  2.Finger touch Gesture control under single touch (zoom in/out ,rotate,turn page)                                                       3.supoort double system operate,singal touch and dual touch freely  switch .
Performance
External size	750*1279*11mm ±2mm
Toughened glass thichness (can choose)	4mm
Effective touch size	681*1210mm error ±2mm
Exteral aluminum material	aluminum alloy+4mm toughened glass
Touch method	finger touch and other Opaque objects
Touch Times	unlimited
Touch Activation Force	No minimum touch activation force is required
Minimum Touch Object	5mm*5mm
Performance
Resolution(interpolation)	4096*4096
Linearaty error	<1.5mm
Response time	<15ms
Cursor speed	300point/s
Operating system	standard HID device,install without driver ;operation system:32 bit or 64bit XP,Vista,win7,Mac OS X 10.5 and  above
Electrical Features
Power insert value	typical value +5VDC,allow range: +4.75V ~ +5.25V
Power	<1.5W
Connection method	USB
Agency Approvals	CE, ROHS, FCC
Environmental
Tempreture	operating tempreture : -20°C ~ 70°C ; storage tempreture : -40°C ~ 85°C
Humidity	operating humidity : 0%-90% RH (No condensation) storage humidity : 0% - 95% RH (No condensation)
Altitude	up to 3,000m
Ambient Light	Direct sunlight 90°to ±30° to the display surface Touch detection can operational Direct sunlight all angles to display surface Free of false touch reports
LED life time	>= 7 years
