| Prod Model: |

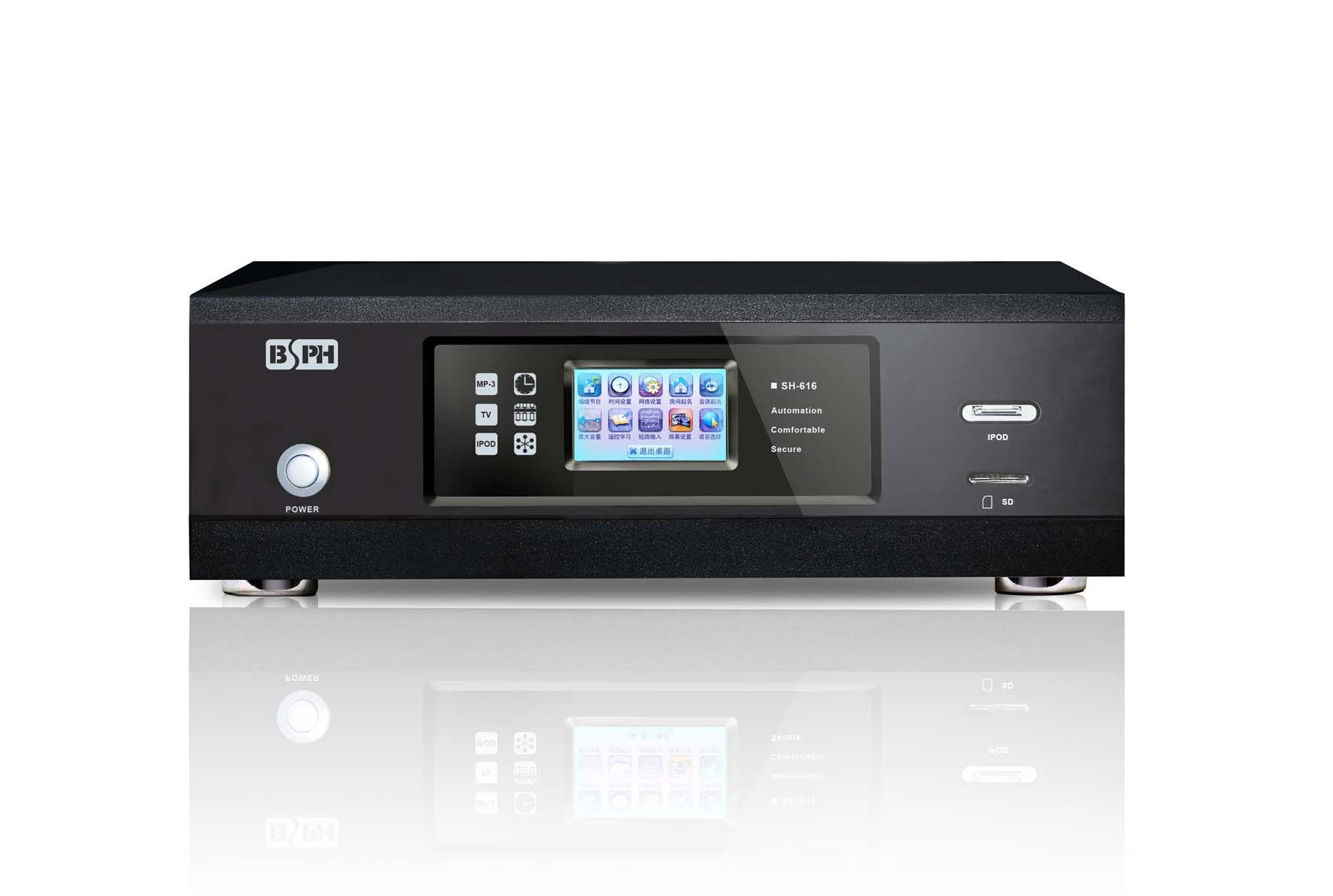

SH-616 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
480W |
| Impedance Output: |
8 Ohm |
| Sound Source: |
USB/MP3/Tuner/Aux/iPhone, iPad |
| Input Sensitive: |
0.75V 0dbv |
| Dismension: |
430mm*375mm*145mm |
| Nw: |
17.6kg |
| Used For: |
Civilian |
| Usage: |
Hi-Fi |
| Function: |
Amplifier Combined |
| Sound Channel: |
16.0 |
| Output Number: |
16 |
| Voltage: |
110-240 |
Product Description
We are a Manufacturer of audio amplifiers, amplifier and speaker
1. Built-in iPad/iPhone interface
2. Built-in 16separatedzone
We are a manufacturer of PA system, amplifier and speakers. BSPH is our own brand.
Product Description
1. 3.2"TFT true color screen English/Chinese graphical user interface, easy to use color screen
2. Song name, sound sources, current song and volume are all displayed
3. Separate controls for volume, treble and bass
4. Built-in various sound sources: DVD player, digital Tuner, USB function, MP3 player, an AUX inputs, 3 external sound sources interfaces
5. Can connect with iPhone, iPod
6. Stereo audio sources can input & output at the same time, wont influence each other
7. Built-in 16 separated zones, in total 480W amplifier. It distributes 2*20W power to 12 zones. Separate controls for volume, songs and audio source of each zone. The left 4 zones ca be used to connect other amplifiers by yourself
8. Support 4 modes, random play, repeat, all play, all repeat
9. Built-in auto-programmable function, this system can be cycled as a week, editing 99 programs each day for cycling.
10. Host machine can control all zones
11. Support alarm system.
Technical Specification
Model SH-616
Rated Output power 480W
Input Sensitive 0.75V 0dBV
S/N Ratio more than 75dB
KD 500
Frequence Response 20Hz--0Hz
AM Stepping 522MHz---1611MHz
Step Through 9Hz
FM Stepping 87kHz---108kHz
Step Through 50Hz
Cooling Method Forced fan
Protection Electrify, overheat, overload, short circuit
Power 220V AC +10%-15%
Power Consumption 400W
Dismension (L*W*H) 430mm*375mm*145mm
Total Harmonic Distortion less than 0.6%
Ascent Rate 70V/ms
Foshan Langdu Intelligent Appliance Technology Co., Ltd. has been striving to be one of the leading international brand of Public Address Systems & Equipments since its establishment. Foshan Langdu Intelligent Appliance Technology Co., Ltd. has rich experience of 6 Years in the field of PA system. The aim of the company is to offer best designed, high-quality products at reasonable price. Advanced technology, careful selection of designs, component, and workmanship ensure reliable quality of BSPH products. Continuous research and innovative design push BSPH to continuous development.
In the last to summary up, BSPH is one of the leading Exporter & Manufacturer in China equipped with valued experience, expert in manufacturing goods as per international standard & demand, at most competitive rate/price.
BSPH products range cover almost all kinds of PA apparatus to meet all requirements for public address. OEM and ODM are welcome, the main BSPH products are listed below:
