| Prod Model: |
YC473WU-2DOMV-PC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
1000CD/M2 |
| HD Resolution: |
1920*1080 |
| Touchable: |
Infrared Touch |
| Contrast: |
1500: 1 |
| Well-Designed: |
Work Stably |
| Ultra Energy Saving: |
Durable |
| Type: |

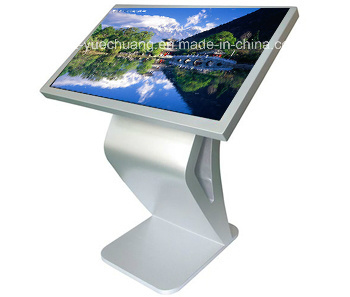

Touch Screen Panel AD Player |
| Application: |
Outdoor AD Player |
Product Description
Products Features
1. HD Resolution: 1920*1080
2. Contrast: 1500: 1
3. Brightness: 1000cd/m2
4. Viewing Angle: L/R/U/D178° /178° 178° /178°
5. Working Environment: -20° C~40° C
6. Power Supply: AC 90V~264V 50/60Hz
7. Storage Capacity: Built-in hard disk
A. Outer shell is made by high-class metal material, black or silver color etc, back-fixing mode with nice appearance. Outer shell color can be customized.
B. With a protection layer of ultrathin, high light, perfectly clear tempered glass on the surface of the LED screen to protect the screen being damaged.
C. Support software updating, new function can be customized according to customer's needs.
Application
1. Business Organizations: Supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
2. Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
3. Non-profit Organizations: Telecommunications, post offices, hospital, schools
4. Public Places: Subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
5. Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers
6. Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
Display
Contrast: 1500: 1
Solution: 1920 x 1080
Brightness: 1000cd/m²
Response Time(G~G) 10 m/s
Viewing Angle( Horizontal / vertical )178° x 178°
Pixel pitch 1039.68 x 584.82mm |
Operating Conditions
Temperature Range -20– 40(degree Celsius)
Relative Humidity 5-90% |
Connection:
PC:HDMI
VGA Output D-Sub 15p
RS232 Output D-Sub 9
Signal circuits: VGA,HDMI
Network control: RS232,RJ45
USB*3 USB1.1/2.0
LAN(RJ45)
External speaker |
Power supply
Main power supply : 90-264V AC/50-60DC
|
Speaker
Built-in speaker 2 x 10W |
AV Input:HDMI
S-Video
Element(YPbPr)
Audio(left/right) |
Accessories:
AC power cord, HDMI HD cable, VGA signal lines, quick start guide. |
Others
Border: grey, black metal
Product certification:CE\FCC |
Product Advantage:
Brightness: 1000nits(image keep visible clearly )
Cooling system: high energy-saving fans cooling system (without air conditioning)
Waterproof, dustproof, moisture, corrosion, mouldproof, shock resistance, resistance to electromagnetic interference
Can be rapid start-up and work stable under the condition of low to minus 25 degrees Celsius
Adopted Infrared touch technology |
