Product Description

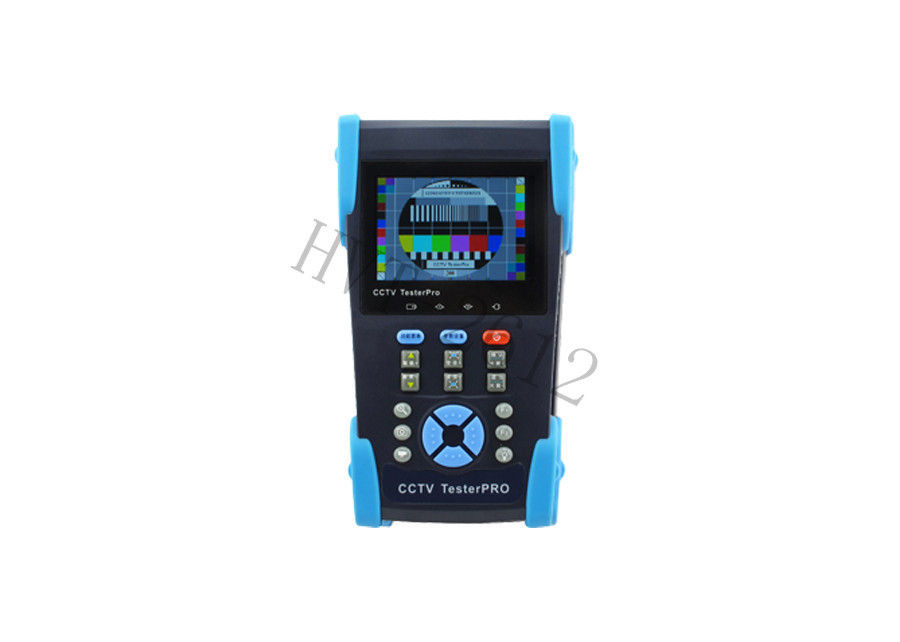

Multi-function CCTV Camera Accessories , CCTV IP Camera Tester TFT LCD With LED Lamp
Description:
The new CCTV tester is developed for the On-Site installation and maintenance of IP camera,analog camera and network device, with Video display, PTZ control, DC12v output power, Audio test, Color bar generator, RS 485 Data searching and Cable testing, which are the same to the previous models. The new developed functions include POE power supply testing, PING testing, IP address scan, Cable scan, Video snapshot, Optical power meter, Video record, Image magnification, Port flicker, LED lamp etc. The new tester also has built in TDR cable testing, which is specialized designed for BNC cable testing in the security monitoring system. This function can accurately measure BNC cable and network cable's break point and short-circuit location. The new tester designed with easy operation and portability makes it simple for a cctv technician or installer to install and maintain CCTV systems, improving work efficiency by reducing time in the field.
Function:
1. IP address scan
In digital IP surveillance applications, if IP camera's IP address is not clear or forgotten; the device cannot be used .
IP address scan can quickly search the connected IP camera or other network device's IP address.
2. Link monitor
To add an IP camera or other network device to the current network group, the new IP address must not be occupied, otherwise it will cause IP conflicts and stop the equipment normal working. Link monitor can check if the new setting IP address is occupied.
3. PING test
PING is the most conventional network debugging tools; It is used for testing if the connected IP camera or other network equipment's ethernet port is working normally and the IP address is correct.
4. POE tester
It can test the POE voltage when the POE switch is supplying the POE power to IP camera. It can clearly display the power+ and power- on the ethernet cable pins, each cable pin's voltage and the failure connection of cable pin series numbers.
5. LED lamp
It is useful for the Engineer to install and maintain security system at night. LED On/Off pressing button, easy operation.
6. F1,F2 User-defined shortcut keys
The user-defined shortcut key is designed for improving the efficiency for the engineer, anytime press, easy to operate.
7. TDR Break-point and short-circuit measurement (optional function refer to the last page)
New function: TDR cable testing, accurately measure BNC cable, network cable, control cable break-point and short-circuits location. It improves working efficiency.
Specification:
Model |
HVT CCTV TESTER HVT-2622 ( 6th generation) |
Video Test |
Signal mode |
NTSC/PAL (Auto adapt) |
Display |
3.5 inch digital TFT-LCD ,480(RGB)x 320 resolution |
LCD adjustment |
Brightness, Contrast, Saturation adjustable |
Video IN/OUT |
1 channel BNC Input & 1 channel Output |
Video Output Mode |
1.0 Vp-p |
Video Level test |
Level test |
Video signals measured in IRE or mV |
PTZ controller |
Communication |
Support RS232 and RS485 |
PTZ Protocol |
Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc. |
Baud Rate |
600,1200,2400,4800,9600,19200,57600,115200bps |
Video Signal Generation |
Color bar generator |
Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color ) |
UTP Cable Test |
UTP cable test |
Test UTP cable connection status and display in the screen. Read the number of the test box. |
DC12V 1A power output |
DC12V power output |
Output DC12V1A power for camera |
Cable Scan |
Cable Scan |
Search the cable by the audio signal |
Audio input test |
Audio input test |
test the pickup and other audio equipments on the front-end |
RS485 data analysis |
Data Monitor |
Captures and analyzes the command data from controlling device |
10 x zoom of image |
Image 10x zoom |
10x zoom image display and video out |
Photograph,Video record, Record playback |
Photograph |
snapshot and save the current image as JPG file |
Video record |
Video record and storage the file |
Record playback |
To view the storage file in the SD card |
Port flicker |
Port flicker
|
Find the connected POE port quickly. |
IP scan, Link monitor, PING test |
IP scan |
Find out the connected IP camera or the other network equipment IP address quickly. |
Link monitor |
Check the IP address whether is occupied |
PING testing |
Test IP camera or Ethernet port of the other network equipment whether work normally, and check the IP address |
POE tester |
POE tester |
Display the power supply voltage and cable connection states |
Visual fault locator |
Visual
fault locator |
Test fiber's bending and breakage ( SM and MM fiber) |
TDR Tester |
|
TDR Tester |
breakpoint and short circuit measurement(BNC cable, telephone cable) |
POWER |
Power Adapter |
DC 5V(1.5A) |
Battery |
Built-in 3.7V Lithium polymer battery ,3000mAh |
Rechargeable |
After charging 3-4 hour, working time lasts 11 hours |
Low Consumption |
Energy saving technology, the battery icon real-time display |
Parameter |
Operation setting |
English/Chinese and other languages OSD menu |
Auto off |
5-60 (mins) |
Keytone |
On/Off |
General |
Working Temperature |
-10ºC---+50ºC |
Working Humidity |
30%-90% |
Dimension/ Weight |
194mm x 112mm x 48mm / 540g |
Competitive advantages:
1. Leading and professional manufacturer in CCTV industry
2. High quality
3. Competitive and reasonable price
4. Best pre-sale,sale and after-sale service
5. Professional technical support
6. CE,FCC,RoHS passed
