| Prod Model: |
SX2-2-17TP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
220V |
| Rated Frequency: |
50Hz |
| Application: |
Lab Heating Test,Sintering,Melting |
| Style: |
Touch Screen Muffle Furnace |
| Use: |
1700.C Lab Muffle Furnace |
| Type: |
Heating Type |
Product Description

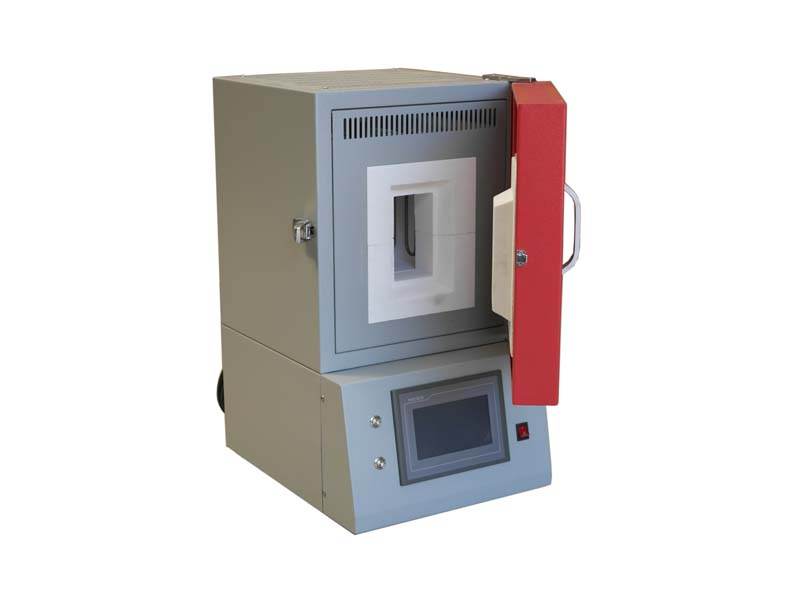

Touch screen 1700°C Compact Muffle Furnace with Programmable Controller CE certified
Muffle furnace Application:
Muffle furnace mainly used in chemical analysis, physical decomposition and synthesis, super hard
materials (such as ceramic), Rare and precious metal smelting and purification, metal heat treatment
of sintering process research and other scientific experiments.
Universities and colleges, scientific research institutes, medical and health, petroleum chemical
industry, mining enterprise, quality and technology supervision agencies,
and other units laboratory, laboratory are the use of such equipment.
1. Gravimetric analysis;
2. Sintering;
3. Quantitative analysis;
4. Heat treating;
5. Glass preparation;
Muffle furnace Structure:
High purity fibrous alumina insulation for maximum energy saving 60-80% less power consumption
than other old style.
Heavy duty double layer structure with cooling fan to keep furnace exteriors safe to touch.
Double temperature controller to ensure furnace never over-shoot in any accident.
Muffle furnace Specifitation:
Chamber size: 100x100x100 mm, Capacity: 1 liter.
Power: 2000 W Max. ( power cord is included ).
Voltage: AC 220V 50/60 Hz;
Max. Temperature :1700 °C (< 3 hour) ;
Continuous Working Temperature:1650 °C ;
Max. Heating Rate:30 °C /min;
Touch screen/LED optional Temperature Controller :
PID automatic control and auto-tune function.
50(LED style) or 128(touch screen style ) programmable segments for precise control.
Built in protection for over-heating and broken thermocouple.
Large digital control panel for easy operation.
Temperature Accuracy :+/- 1 °C
Heating Elements : MoSi2 heater .
Thermocouple : B type.
Muffle furnace Standard Sizes:
Type |
Furnace size |
Working/Max.temperature |
Delivery time |
1700.C muffle furnace |
100x100x100mm |
1650.C/1700.C |
1-3 days |
1700.C muffle furnace |
200x150x150mm |
1650.C/1700.C |
1-3 days |
1700.C muffle furnace |
300x200x200mm |
1650.C/1700.C |
1-3 days |
1700.C muffle furnace |
400x300x300mm |
1650.C/1700.C |
1-3 days
|
Warranty: One year limited warranty with lifetime support, excluding heating element and
ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage
from wrong operate and use are not under the coverage of One Year Limited Warranty.
