Product Description

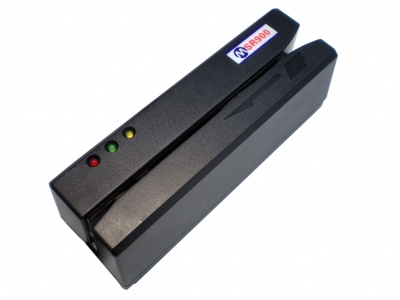

MSR900 Magnetic Stripe Reader Writer
Smallest card writer in the world! Approx. 0.7kg
Long Service Life Magnetic Head 100% Quality Confirmed
18months Factory Warranty
DSCN1842
Magnetic Stripe Card Reader/Writer MSR900 (100% MSR206 Compatible, What msr206 can do, we can do) is designed to offer a card reading/writing solution for ISO formats.
It reads and writes up to 3 tracks of data, decoding/encoding and verifying up to 3 tracks of data simultaneously. MSR900 Reader/Writer provides a standard USB interface to communicate with host system or other terminal computers.
MSR900 is manufactured at our ISO 9001 certified factory and comes with a 1-year warranty.
Features
Reading/Writing magnetic stripe card complied with ISO formats
Read/Write High & Low Coercive (300~4000Oe)
High/Low Coercivity encoding circuitry selectable on screen
Program software for Windows 98/Me/XP/Vista
Programming software for various read/write performance
Sequential write function, up to 12 digits (1 up)
Manual Swipe to read and/or write card with RS-232 /USB output
Writing and verifying data on single, dual, or triple track in one swipe
+24VDC, 2.5A Max external power adapter attached (100-240 AC INPUT)
Dimensions of 150(L) x 50(W) x 53(H) mm
Specification
Electrical
Power requirements
+24VDC +/- 5%
Consumption
Typical 350mA Max. 600mA plus for each writing track
Power supply
External switching power 24V/2.5A
Communication
Standard USB cable
Ripple
50MVP-p or less
Dielectric strength
500 VDC for 1 minute
Performance
Read card
Track1
Track2
Track3
Bit per density
210 bpi
75/210bpi
210 bpi
Coercive force
Read/write 300-4000 oe Mag. Card
Card thickness
0.76-1.2mm
Read speed
STD card
Jitter +/-15%
AMP. 60%
5-55IPS
5-50IPS
5-50IPS
Write speed
5-30IPS
Write jitter
Interval < +/- 10%, Sub-interval < +/- 12%
Error rate
Read < 0.5%
Write < 0.8%
Head life
Min. 1000K swipes for both read/write head
Mechanical
Body material
ABS 94V-0
Weight
Approx. 0.7kg
Dimension
150.1L x 50W x 53H mm
Swipe
Manual, single direction
Environments
Operation
-10 to 55oC, 10 to 85% humidity
Storage
-30 to 70oC, 10 to 90% humidity
Safety Approval
Rating
FCC Class B, CE ClassB, UL, cUL RoHS
Package including
MSR900
Software CD
Power adaptor
USB cable
1 Clean Card
10 black magnetic Stripe card(4000 OE)
English Manual
