Msr009 Magnetic Stripe Card Reader

Prod Model:	MSR009 magnetic stripe card reader

Product Description

Product Description
Small card reader with interruption, USB cardreader, battery rechargeavle card reader, small reader MSR009
Mini size: 43(L)X15(W)X22(H) mm
Interrupted function
Battery rechargeable



Features:
Ultra low power consumption
Reads interrupted swipes in both directions
Reads all magnetic cards
Low voltage operation
Swipe Direction - bidirectional
Data downloadable to the computer via USB
Time stamp shows date and time with every transaction
Hardware imbedded password protection
3-track version can collect all three tracks data
Fully encrypted
Stores 32000 card scans
All swipes are timestamped
Data retained even if power is removed
No programming required, easy to use as 1- 2- 3

Applications:
Any movable data collection (Trade shows, Racing events)
Point of sales
Law enforcement (DMV card)
Attendance (Student ID, Membership card)
Conference Attendance
Classroom Attendance
Meeting Attendance
Door Locking Systems

Specification:
PCB size: 14*6.15*2.85mm
Weight: 10. G
Memory: 2M Byte EEPROM
Power supply: Take Power by lithium battery, USB port and directly charging, maintaining 20 more days after fully charging.
Cards Standard: ANSI, ISO, ABA
Track: All 1&2&3 tracks bidirectional readable
Data structure: Date + time +' %'1st track data? '+': 2ND track data '? ' 3rd track data?
Storage record: 8000 records for Permanently remain, they can be canceled or updated by command
Output interface: USB communication cable, command download, USB 2.0
Operating Temperature: -10 ~ 50 C
Relative Humidity: -20 %~ 70 %rh
Lifespan of magnetic head: 50 0000 times

Software Installation and Usage:
The software for MSR008 has been designed and tested on Windows XP and Windows 7 and so
on(all Windows system ,32 and 64bit).

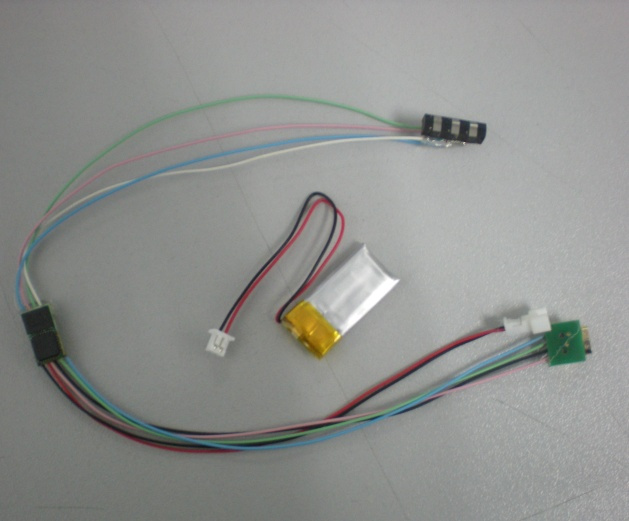

Packing:
Card reader MSR009
Rechargeable Battery
Direct charger
USB cable
Disk w/Software, Mannual
3mm maghead


WARRANTY
One-year warranty of defects in material and functionality to the original purchasers. Within the warranty period, if the product found to be defective will be repaired or replaced. This warranty applies to the products only under the normal use of the original purchasers, and in no circumstances covers incidentalor consequential damages through consumers' misuse or modification of these magnetic stripe products.
