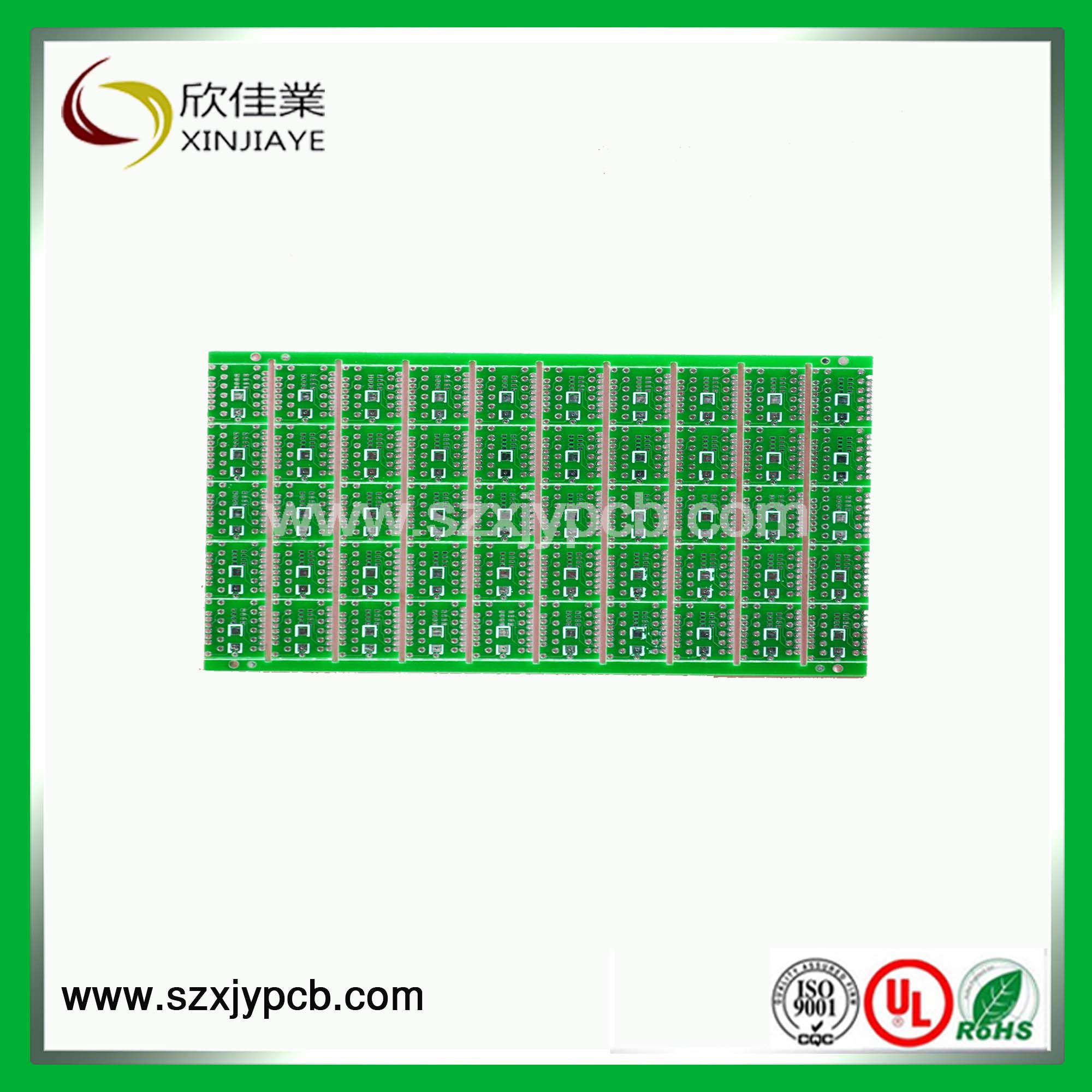

| Prod Model: |
XJYPCB-436 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Finishing: |
Lf-Hal |
| Copper Thickness: |
1oz |
| Board Thickness: |
1.6mm |
| Min. Hole Size: |
0.25mm |
| Min. Line Wigth: |
0.15mm |
| Min. Line Spacing: |
0.15mm |
| Color: |
Green |
| Size: |
35*45mm |
| Certificate: |
RoHS, UL, SGS, Ect |
| Package: |
Vacuum |
| Structure: |
Metal Base Rigid PCB |
| Material: |
Polyester Glass Fiber Mat Laminate |
| Production Process: |
Subtractive Process |
Product Description
WELCOME TO XJYPCB
Place of Origin: |
Guangdong China (Mainland) |
Brand Name: |
XJY |
Base Material: |
FR4 |
Copper Thickness: |
25um |
Min. Hole Size: |
0.15mm |
Min. Line Width: |
0.20mm |
Surface Finishing: | LF-HAL |
Layer: | Double side |
Soldermask: | Green |
Silkscreen: |
White |
| Certificate: |
UL, ROHS, ISO9001, ISO14001 |
Size: | 35*45mm |
| Test: | E-Test and optical inspection | Panel: |
1pcs/panel
|
Business Line:
PCB Design & Assembly manufacturing
Prototyping
Electronical components purchasing
Make high difficulty PCB(1 to 12 layers )
Write programs for clients
PCBA/finished product Test. etc.
Documents & Samples Needed:
1.PCB gerber file
2.BOM list for electronic components
3.PCB board sample
Lead Time & Payment Terms:
Samples: 4-5 days(with gerber file or PCB documents); 10 days(copy board and produce sample service)
Mass produce: 10 to 20days depending on your PCB orders
Western Union, Paypal, T/T accepted
If you were interested in our products, welcome to enquiry.We'll give you detail introduction and the best price. We do hope we can have a good longterm business relationship.
Founded in April 2005, ShenZhen XinJiaYe Electronics Technology Co., Ltd. is specialized in the production of high density PCB and administrated by several PCB professionals. At the beginning of 2008, in order to provide customers with high quality PCB at better price, her owner rebuilt a new factory by investing additional 15 million in JIANG XI province XinFeng city, where there are enough environmental facilities and cheaper hydropower labor, to control the mass production cost at a competitive advantage.
XJYPCB is a PCB manufacturer specializing in quick turn prototype and batch quantity also offers one-stop service from layout to assembly. Producing Rigid PCB from 1layer to 10layer, FPCB from 1layer to 4layer, we are well-organized to grant our customers with best quality PCB' S at much lower cost. Our quick turn prototype production in Shenzhen allows us to provide short lead time and world class customer service at the same time, batch quantity production in Jiangxi helps us minimize labor cost and maintain high quality.
8, 000, 000 SMD points every day including BGA assembly and 6 DIP production lines (Lead free dual wave soldering machine) can satisfy the customer what will he want.
Our factories have ISO-9001: 2008 and UL Certification. With more than 500 employees, she is growing and her latest manufacturing outputs achieve more than 10, 000 square meters of double-sided PCB boards and 8, 000 square meters of multilayer PCB boards per month.
We are servicing our customers all over the world and gain their testimonials.
Our mission is to provide dependable full service PCB and best price for global customers. XJY is continuously improving our capabilities and processes to reduce operational costs and improve PCB quality.
In order to meet our clients needs, now we open A Line to assembly some kind of headphone and USB flash disk. Pictures and specifications show in our product list. Welcome to choose!
XJYPCB welcomes you to join us and experience our dedicated service to the printed circuit board industry. Whether you have a project to quote or are working on a new project and just want to talk with our knowledge staff, please feel free to call. We look forward to working with you throughout the entire life of your business.
