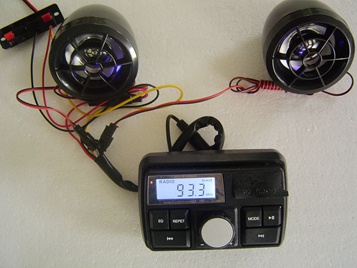

Motorcycle Radio MP3

Prod Model:	MZ-919
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
DC:	12V
PC Interface:	USB 2.0
Screen:	LCD
SNR:	>90dB
Recording Modes:	Without
Operating System:	Embeded
Audio Supported Standard:	MP3
Memory Size:	2GB
Operation:	Push-Button
Function:	FM Radio
Style:	Card
FM Radio Function:	FM Radio Function
Loud Speaker Function:	Loud Speaker Function
Battery Life:	>20 hours

Product Description

With display screen (electric motorcycle, moped) car MP3 The power supply voltage: DC12V, A pair of speakers: Waterproof horn Host size: 105 * 75 * 50 mm host waterproof design Function is introduced: 1: With adjustable clock display, without a remote control, with no security. Support mobile phone charge; 2: Support SD card, USB, the vast majority of U disk and SD card is supported by the player, a handful of U disk and SD card itself is not stable or too slow is not supported). Built-in audio output can meet subwoofer; (SD card, U disk, please close the self-provided) 3: With the function of radio broadcast, and adjustable radio channel. Wiring diagram: Red line 12 v battery positive electrode, the black line connect the battery negative (please close the don't change lines without permission, not every line voltage is 12 v). High voltage might damage the player, the voltage is too low, the player will not work properly. Special statement: Yellow line locks the anode was originally a jump, if don't connect the electric door lock, must be positive, not pick up, otherwise the screen is not bright, clocks will not normal. After adjust time, need to press the middle circle the boot key three times, and confirm the change of time, but the ": " flash once per second, hours and minutes digital flash, display the time is the normal state. Product description: According to motorcycle MP3 player product manuals
Thank you for your choose and buy the third generation of jiangmen inscription chau company MP3 products, this product belongs to the motorcycle car MP3 series products. Appearance adopts all black plastic case, large buttons, smooth operation, all function LCD display, waterproof design. Is a beautiful sound quality MP3 player, support SD memory card and mobile U disk, using high fidelity sound design, bring you a new dynamic music enjoyment.
A, the function is introduced 1, the status indicator light 2, the screen display area
3, USB/SD interface 4, MP3 digital audio 5, a song/scan 6, track loop
7, the power switch/volume and subtract/time display 8, model conversion
9, the next song/under scanning
10, play/pause/radio/deposited out pre-existing station
Second, the basic operation
Open the lock, display shows the clock; Short boot, according to the volume knob when no USB or SD card, automatic play FM radio; Play a SD card, SD card MP3 songs (when the USB and SD are sometimes preferred play USB), boot mode, short press the volume knob display time, long press the volume knob to turn it off.
1, MP3 state short press to play/pause function; Long press this button for radio radio state persisting, short press the keys out beforehand;
2, short press "EQ", circulation select sound mode, the machine is a total of 6 kinds of mode;
3, in the condition of MP3 short key or a key is up or down to select choose to broadcast, long key or a key to ten multiple choice need to play songs;
In the condition of a radio button or key step up or to order scanning, long press for automatic scanning, when Saul to radio down;
4, rotate the volume knob to adjust the volume size, on short press this button, press out, according to the time long press this button to turn it off, in standby state short press this button start;
5, in the condition of MP3 short press "REPER", for the single loop and full tracks circulation conversion switch between;
6, short press the "MODE" key, cycle transformation between USB, SD, and radio
7, short time calibration: According to the volume knob, the display shows the current time, (note: This machine is the 24-hour clock) in flashing time short character by the hour, the parameters, rotate the volume knob to adjust hour short minutes character flashing, press the button, rotate the volume knob to adjust the minute parameters, adjusted the time parameter, and short time parameter according to the volume knob to confirm
