| Prod Model: |
GSB-S |
| Maxi Cutting Force: |
22t |
| Table Size: |
900*430mm |
| Swing Arm Width: |
370mm |
| Stroke: |
90mm |
| Certification: |
CE |
| Over-Lock Stitch: |
No |
| Nailcatcher Machine Stitch: |
No |
| Buttonholing Machine Type: |
No |
| Type: |
No |
| Automatic Grade: |
Manual |
Product Description

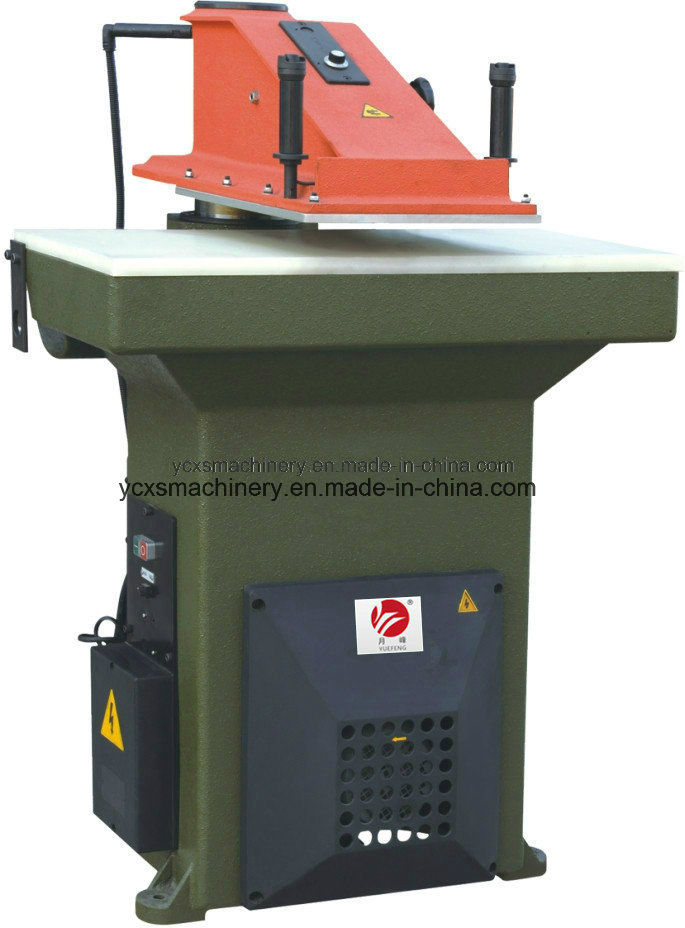

Mobile Phone Screen Protector die cut machines

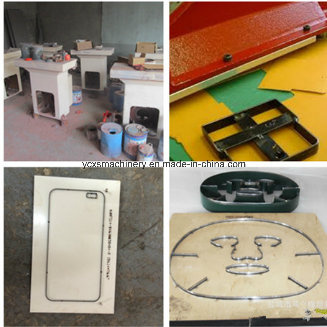

1. The machine is applicable to cutting of various nonmetal materials by cutting die.
2. The oil way system specially designed can conveniently adjust the rocker height.
No adjustment is needed after the height of cutting die is changed.
3. High speed and low energy consumption. With only power of 0.75KW, it can output the cutting force of 22T.
4. To meet the need of frequent replacement of cutting die of different sizes, another type of machine that can timely output three kinds of cutting force is available for selection.
5. Ductile cast iron body made the machine be used for a very long time and small noise.
| Model | GSB-S22 | GSB-S27 | GSB-S27K | GSB-S27L |
| Maximum cutting force | 22T | 27T | 27T | 27T |
| Table area | 900×430mm | 1000×500mm | 1000×500mm | 1000×500mm |
| Swing arm width | 370mm | 370mm | 500mm | 610mm |
| Cutting stroke | 90mm | 90mm | 90mm | 90mm |
| Motor power | 1.1KW | 1.5KW | 1.5KW | 1.5KW |
| Packing size | 1050×1000×1500mm | 1100×1100×1600mm | 1100×1100×1600mm | 1100×1100×1600mm |
| N.W(with oil) | 650kg | 930kg | 990kg | 1040kg |
| G.W | 740kg | 940kg | 1000kg | 1050kg |
| Material: | |
| Max. material width: | |
| Max. material thickness: | |
| Max.cutting length: | |
Send your Inquiry Details in the Below, Click "Send" !
we will reply within 24h!
Yancheng Xusheng Machinery Co., Ltd is a leading manufacturer in hydraulic cutting machine, leather cutting machine and shoe making machine, serving for leather bags, shoes, thermoforming plastic, blister packaging, soft toys, packing foam, EPE foam, kicthen sponge scrubber etc. Industries.
Our company was located in Yancheng city estabished in2004, and we have more than 10 years experience in hydraulic cutting machine. It; S only need 40 mins from Yancheng airport and about 3 hours from Shanghai by car.
Our products have good market in India, Africa, Asia, southAmerican etc who producing leather goods, plastic, bister packaging, toys, textiles, sponge, rubber, packing, floor covering, carpering, glass-fiber, cloth, cork, EPE foam etc industries.
All our machines with 1.5 years guarantee time. All parts free to exchanged during this time.
