| Prod Model: |
Mobile Phone Data Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Option |
| Insulation: |
PE(HDPE) |
| Overall Jacket: |
PVC,Lszh |
| Operating Temperature Installation: |
0~50/Operation: -30~+75 |
| Application: |
LAN Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PVC |
| Type: |
Cat 3 |
| Certification: |
RoHS |
Product Description

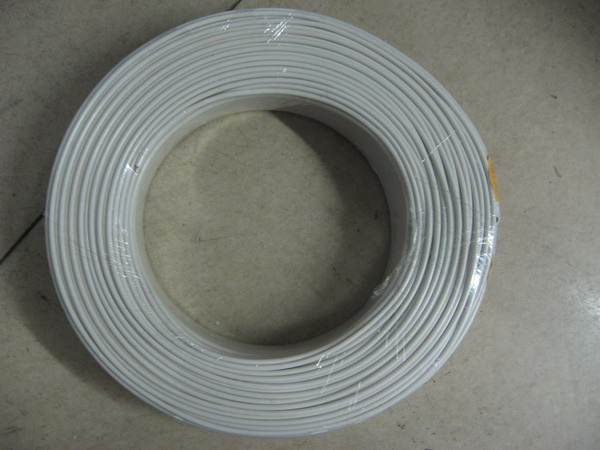

Mobile phone data cable
Specifications:
BC: Bare Copper CCS: Copper Clad Steel
1) 18AWG/20AWG CCS/BC Conductor +PVC/PE Insulation
2) Customers' specifications are wellcomed.
Note:
1) Conductor: BC, TC, solid or standed copper or tinsel conductor
2) From 1 pair to 100 Pairs, shield or non-shield
3) Colour coded PP or PE insulation
Characteristic:
Rated temperature: 60 degree
Rated voltage: 150V
Application:
Telephone handset cord or line cord
Packing:
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll.
2) Inner packing: Wooden reel, plastic reel, and paper reel.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
| Frequency MHz | Impedance ohm | RL | Attenuation dB/100m | Next Db/100m | ELFEXT dB/100m | PS NEXT Db/100m | PS FLFEXT Db/100M | Propagation speed m/s |
| db |
| 1 | 100±15 | 20 | 2 | 65.3 | 63.8 | 62.3 | 60.8 | 0.65C |
| 4 | 23 | 4.1 | 56.3 | 51.7 | 53.3 | 48.7 |
| 8 | 25 | 5.8 | 51.8 | 45.7 | 48.8 | 42.7 |
| 10 | 25 | 6.5 | 50.3 | 43.8 | 47.3 | 40.8 |
| 16 | 25 | 8.2 | 47.3 | 39.7 | 44.2 | 36.7 |
| 20 | 25 | 9.3 | 48.5 | 37.7 | 42.8 | 34.7 |
| 25 | 24 | 10.4 | 44.3 | 35.8 | 41.3 | 32.8 |
| 31.25 | 24 | 11.6 | 42.9 | 33.9 | 39.9 | 30.9 |
| 62.5 | 22 | 17 | 38.4 | 27.8 | 35.4 | 24.8 |
| 100 | 20 | 22 | 35.3 | 23.8 | 32.3 | 20.8 |
| 155 | 10±18 | 19 | 28.1 | 33 | 20 | 29 | 17 |
| 200 | 19 | 32.4 | 31 | 18 | 28 | 15 |
| 310 | 100±22 | 18 | 41.8 | 28 | 14 | 25 | 11 |
| 350 | 17 | 44.9 | 27 | 13 | 24 | 10
|
Shenzhen Taiyue Communication Cable Co., Ltd., is specialized in producing & exporting LAN cable for 10 years,
Our main products including:LAN cables, Patch cord, USB cables, power cords, computer cables, optical fiber cables, coaxial cables, etc.
With years of development, Taiyue has built up 3 factories, 2 shops and 2 branch office, and has built up good relationship with numerous famous enterprises in domestic and aboard, Our products are selling well among Europe, America, Asia, Australia, Egyptian and other countries.
Our factory is located in Guangzhou, China, which covers more than 8, 000 square meters with more than 200 energetic staff.By taking advantage of the latest technology in domestic and overseas fields, and combining our professional manufacturing experience, Taiyue has been an entity with large-scale production ability.
The ever-pioneering TAIYUE people has set up the solid philosophy "promote and innovate, quality-oriented, win competition by quality, set up PULI brand", in order to detect the future trend of information intellectualization with our unique expertise in the industry.Based in Guangdong, with vision toward the market covering China and the world, cherishing confidence and releasing enthusiasm, we will make up our way to a glorious future.
