| Prod Model: |
BST-5800A |
| Product Name: |
Plastic Box Injection Moulding Machine |
| Shot Size(Theoretical): |
2480-2600 Cm³ |
| Injection Pressure: |
152t-145 MPa |
| Screw Speed: |
0-150 r.p.m |
| Nozzle Diameter: |
20 Srmm |
| Ejector Tonnage: |
125 Kn |
| Mould Thickness: |
290-810t mm |
| Space Between Tie-Bars: |
800X774 mm |
| Machine Weight: |
21.8t |
| Machine Dimension: |
8.75X2.2X2.3 M |
| Type: |
Preform Injection |
| Structure: |
Horizontal |
| Plastic Type: |
Thermoplastic |
| Plasticizing Way: |
Screw Type |
| Clamping Way: |
Hydraulic & Mechanical |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Certification: |
SGS |
Product Description
SPECIFICATIONS 1

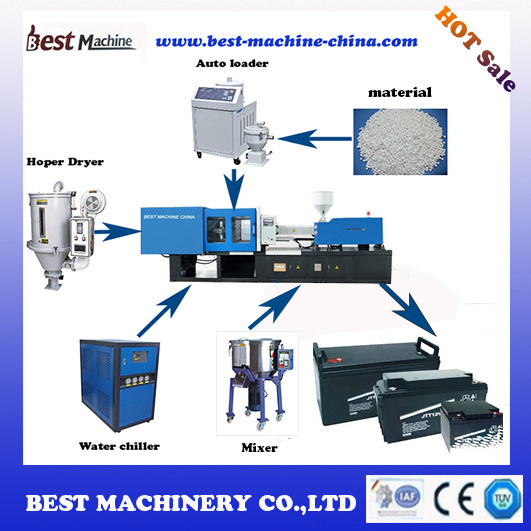

best quality plastic battery case injection moulding making machine with factory price
- Imported advanced computer systems, Chinese / English interface.
- Can save 50 sets of mold parameters.
- Advanced clamping structure and injection parts, precision hydraulic system and circuit design.
- Suitable for producing different types of precision small parts.
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement.
- Quality:12 month Quality guarantee ,Free spare parts replacement,(NOT include man-made sabotage)
- Service:We provide free advanced training and maintenance in china factory,and 24 hours on-line or phone service if you request we also can provide installation and training abroad,until customer's satisfaction
- Delivery time:35days after advance payment
Plastic Basket Injection Moulding Machine
MODEL | BST-5800A |
| INJECTION UNIT | | A | B |
| Screw diameter | mm | 84 | 86 |
| Shot size(theoretical) | Cm³ | 2480 | 2600 |
| Shot weight | g | 2230 | 2340 |
| Injection pressure | Mpa | 152 | 145 |
| Injection rate | g/s | 482 | 506 |
| Screw L/D ratio | L/D | 20.6 | 20 |
| Screw speed | r.p.m | 0-150 |
| Nozzle Diameter | Srmm | 20 |
| CLAMPING | | |
| Clamp tonnage | KN | 5800 |
| Toggle stroke | mm | 760 |
| Mould Thickness | mm | 290-810 |
| Space between tie-bars | mm | 800-774 |
| Ejector stroke | mm | 200 |
| Ejector tonnage | KN | 125 |
| Ejector number | Piece | 13 |
| Hole Diameter | mm | 200 |
| OTHERS | | |
| Heat power | KW | 28.1 |
| Max. pump pressure | MPa | 16 |
| Pump motor power | KW | 18.5+30 |
| Valve Size | mm | cartridge valve |
| Machine dimension | m | 8.75X2.2X2.3 |
| Machine weight | t | 21.8 |
| Oil tank capacity | L | 850
|
Our Services
Supply mode: the supplier factory delivery, simple packaging, the supplier agent consignments, the expense is payed by the buyer .
Terms of payment: the buyer pay 30% of the total payment as the signing of the deposit, the contract comes into effect, pay the balance before shipment .
Quality assurance: the equipment according to the enterprise standard implementation and mechanical guarantee period is one year, the main electrical appliances for half a year .
Method of acceptance: equipment processing after the completion of delivery, the buyer sent to the factory acceptance, for commissioning, the buyer to provide raw materials for plastic material .
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) provide on-site installation guide;
B) responsible for the commissioning of equipment;
C) responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) one year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) provide technical advisory services for a long time
Delivery date: the contract is signed and completed within 45 working days after receiving the deposit unit processing and manufacturing, with the conditions of the factory acceptance
