| Prod Model: |
pcb-471 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| We Found: |
in 1998 |
| Land Area Of Our Factory: |
More Than 10000 Square Meter |
| Business Nature: |
Manufacturing of Printed Circuit Board |
| PCB Layers: |
1~16 |
| PCB Surface Finishes: |
HASL(Lead Free), Enig, OSP, Gold Finger, Tin, etc. |
| PCB Max. Size: |
1200mm×600mm |
| Laminate Materials: |
Fr-4,Fr-1,,Fr-2,Cem-1,Cem-3 |
| Certificate: |
RoHS, ISO14000, SGS, UL,Reach |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

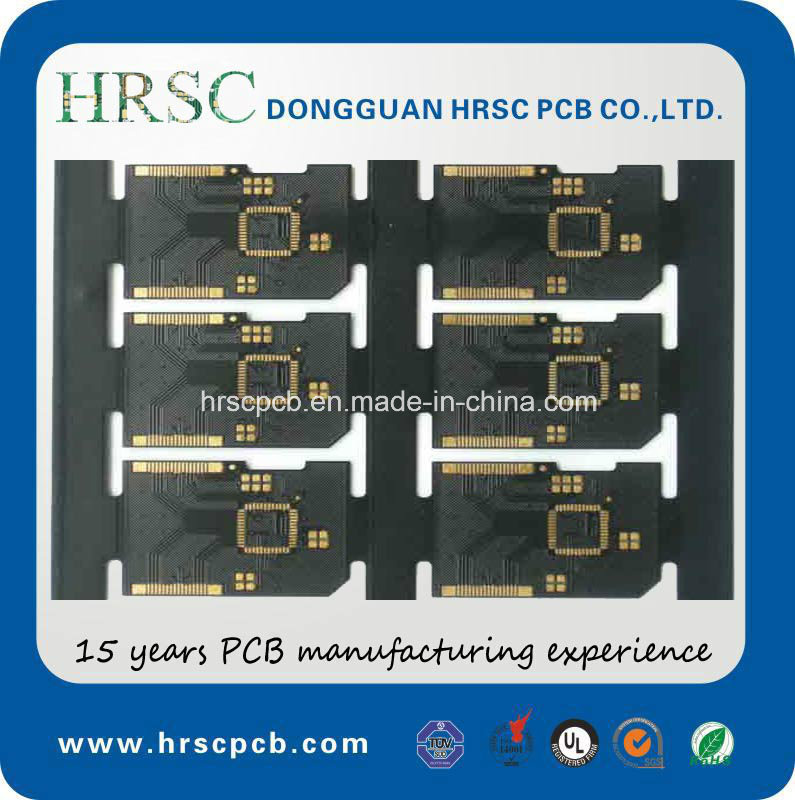

HRSC PCB Manufacturer
We are the Printed Circuit Boards (PCB) manufacturer with 15 years experience, specialized in single-sided, 2-layerd, multilayer and high density interconnector (HDI) PCB. We take strict Japanese-pattern management, so please trust us with your orders!
Our PCBs are used for auto industry, high power led, Office Appliance, electric toy, machinery, industrial lighting and so on.
Our Corporate Vision: To become the world's most trustful PCB
Our Corporate Values: Excellence, customer satisfaction, innovation and integrity, green.
Our Quality Target:
1.Ptoduction pass rate>99%
2.Timely delivery rate>98%
3.Customer complaint rate<1%
4.Customer satisfaction rate>99%
Environmental Guideline:
Protect the environment, prevent pollution, save resources, and reduce waste.
PCB Manufacture Quality Control:
1. Engineering pretreatment before production
2. 100% E-test, 100% visual inspection
3. AOI inspection
4. High voltage test, impedance control test
5. Micro section, soldering capacity, thermal, shocking test
6. Reliability test, insulating resistance test, ionic cleanliness testing
Our PCB process capability
PCB Description | Our PCB Board Capability |
| PCB Surface Finishes | electrolytic nickel-gold,
HASL(Lead Free, ENIG (Electroless Nickel/Immersion Gold, Carbon Ink, Golden Fingers, OSP (Entek, Immersion Tin, Immersion Silver |
| PCB Max. Size | 1200mm×600mm |
| PCB Min. Size | 5mm×5 mm |
| Bow & Twist Tolerance | Single Side≤1.0%,Double Side≤0.7%, Muti-Layer≤0.5% |
| Min. Board Thickness & Tolerance | 0.2mm±0.08mm |
| PCB Min. trace/spacing | Tin board:0.2mm±20%(8mil±0%) |
| gold board:0.075mm±20%(3mil±0%) |
| Copper to Board Edge Spacing | 0.5mm(20mil) |
| Hole to Trace Spacing | 0.3mm(12mil) |
| Min. Hole Diameter | 0.2mm±.076mm(8mil±3mil) |
| Min. Hole Clearance | 0.4mm±.076mm(16mil±3mil) |
| Copper Thickness on Hole Wall | 20-25um(0.79mil-1.0mil) |
| Hole Location Tolerance | ±0.076mm(l±3mil) |
| Min Diameter of Punching Hole | FR-4 board thickness≤1.0mm(40mil):1.0mm(40mil) |
| FR-4 board thickness 1.2-3.0mm(48-120mil):1.5mm(60mil) |
| PCB Min. Punching Slot | FR-4 CEM-3 board thickness≤1. 0mm(40mil):0.8 mm×0.8 mm(32mil×32mil) |
| FR-4 board thickness1.2-3.0mm(48-120mil): 1.0 mm×1.0 mm(40mil×40mil) |
| Trace width variation | ±0.076mm(±3mil) |
| Outline Tolerance | Routing:±0.1mm (±4mil) ,Punching:±0.05mm (±2mil) |
| V-CUT Registration Tolerance±0.2mm (±8mil) |
| PCB BOARD Type | Single-sided, double-sided, multi-layer |
| Major Material | FR-4, CEM-1,CEM-3, high frequency laminates, Aluminum, NiFe-based, copper base |
| PCB BOARD Thickness | 0.2-3.5mm |
| Base Copper Thickness | 11um 35um 70um 105um |
| Max. aspect ratio(board thickness: hole size) | 8:1 |
| V-Cut Angle Tolerance | ±5° |
| V-Cut Board Thickness | 0.4mm -3.2mm(16mil -128mil) |
| Min SMT Pitch | 0.3mm(12mil) |
| Min. Component mark | 0.15mm(6mil) |
| Min. width of annular ring(finished) | 0.15mm(6mil)/side |
| Min pad opening | 0.076mm(3mil) |
| Min S/M Bridge | ±0.076mm(±3mil) |
| carbon ink board manufacturing capability:1.Impedance Control:20K±10% 2.Hardness:6H 3.bearable friction times :above 200000 times |
What we need:
Please tell us the information as below:
NO. | Items | NO. | Items |
| 1 | Board for what product | 8 | Surface Finish |
| 2 | Number of Layers | 9 | Board Material |
| 3 | Copper Thickness(um) | 10 | Board Thickness(um) |
| 4 | Solder Mask Color | 11 | PCB Dimensions(mm) |
| 5 | Silk Screen Color | 12 | Min Finished Hole Size(mm) |
| 6 | Milling | 13 | Min Clearance(mm) |
| 7 | Min Track Width(mm) | 14 | Other special requirements |
PCB Fast delivery:
| Packaging | Vacuum Packing with desiccant,
Professional Export Carton. |
Delivery
time |
| Prototype | Mass production
(above 30m) |
| 2L | Quick turn:24h
Usual time:3-4days | 5-10days |
| 4L | Quick turn:48 hours;
Usual time:5-6days | 10-15days |
| 6L | Quick turn:72 hours;
Usual time:6-8days | 10-20days |
| 8L | Quick turn:72 hours;
Usual time:8-10days | 15-22days |
| 10L | Quick turn:96 hours;
Usual time:12-14days | 18-25days |
| `` | `` | `` |
Please send us your Gerber Files and PCB specifications; we will quote for you within 12 hours.
We always try our best! So we do, we conquer, and we get there!
Contact us!!
PCBA--PCB-PCBA-PCB-PCBA--PCB-PCBA-PCB-PCBA--PCB-PCBA-PCB-PCBA-PCB-PCBA--PCB-PCBA
Dongguan HRSC PCB Co., Ltd is a professional printed circuit board¨ PCB© Manufacturer with 15 years experience, specializing in single-sided, double-sided, multilayer and high density interconnector PCB, owning 100, 00 m2 factory, with 320 employee. Monthly output is 35, 000 m2.
HRSC has advanced processing equipments and highly skilled workers. Our products widely apply in lighting, electronic game machine, auto industry, communication equipment, computer peripheral product, medical devices, etc. The quality of products is highly praised by the industry. In 2013, we have introduced more advanced overseas brand machines, and strived to become fist-class PCB manufacturer.
We have successively obtained certification of UL, ISO14001, TS16949, passed SGS test. And meets RoHS and REACH standards. Then we are improving the management of market development, engineering design, manufacturing, quality assurance, after-sales service, and have enjoyed the industry good reputation and customers' trust. Presently our company has deeply trusted and well received by Japanese well-known enterprises and sino-foreign joint venture companies. To keep pace with the high-techn industries, HRSC always uphold the tenet "integrity, practical, innovation", exerting the advantages of market, technology and talents, to provide our customers with quality products and efficient service.
