| Prod Model: |
ALD-250B/D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Ald-250-320-350-450 |
| Packing Material: |
Film |
| Driven: |
Electric |
| Touch Screen: |
PLC Panasonic |
| Auto Grade: |
Automatic |
| Applying: |
Various Kinds of Goods |
| Warranty: |
1 Year |
| Delivery Time: |
20 Days |
| Packing Type: |
Wooden Cases |
| Automatic Grade: |
Automatic |
| Application: |
Hair Care Products |
| Driven Type: |
Electric |
| Material Type: |
Solid |
| Packaging Material: |
Film |
| Packaging Type: |
Bag |
Product Description

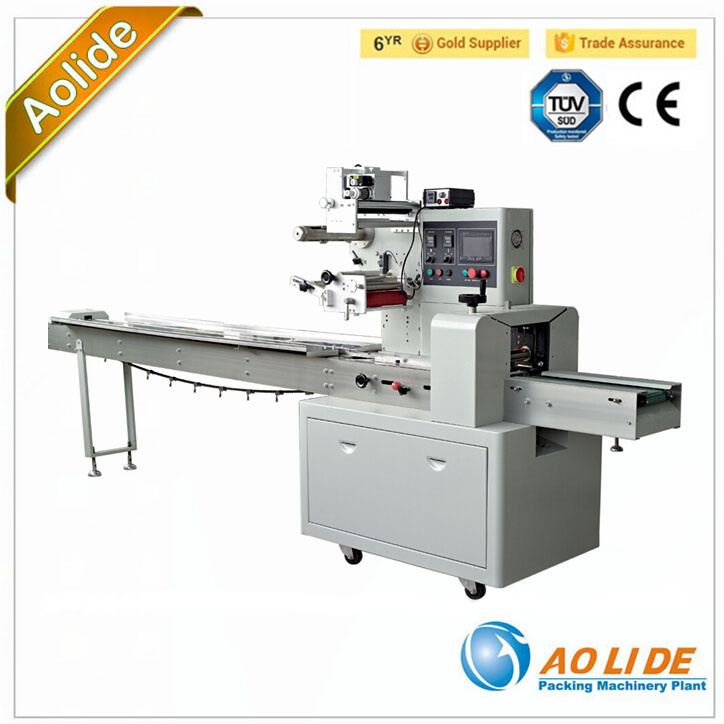

Auto packing machine packaging machinery
Specifications:
1. Easy to operate
2. High quality and reasonable price
3. CE certification
4. One yeas warranty
5. Reliable performance
Packing material:
Heatsealable laminated film,such as: OPP,PE,PVC,PT/PE,OPP/CPP, other special sealable packing film.Sealing Type:Back-sealed( 3 sides sealed)
1.Standard Pillow Style Bag
2.Pillow Style Bag With Hole Punch / Euro Slot
3.Gusseted Pillow Style Bag
Model Packing Machine
Model | ALD-250B | ALD-320D | ALD-350B | ALD-350D | ALD-400D | ALD-450 |
| Film width | Max.250m | Max.320mm | Max.350mm | Max.350mm | Max.400mm | Max.450mm |
| Bag length | 65~190mm
120~280mm | 90~260mm
150~330mm | 65~190mm
120~280mm | 90~260mm
150~330mm | 130~320mm | 120~450mm
|
| Bag width | 30~110mm | 50~160mm | 50~160mm | 50~160mm | 30~150mm | 50~180mm |
| Bag height | Max. 40mm | Max. 55mm | Max.45mm | Max. 60mm | Max.65mm | Max. 80mm |
| Roll diameter | Max.320mm |
| Bag speed | 40~230bag/min | 40~230bag/min | 60-330bag/min | 40~180bag/min | 30~150bag/min |
| Power | 220V,50/60HZ,2.4KW | 220V,50/60HZ,2.6KW |
| Machine size | (L)3700×(W)670×(H)1450 | (L)4020×(W)745×(H)1450 | (L)4020×(W)800×(H)1450 |
| Machine weight | 600Kg | 650Kg | 650Kg | 700Kg | 750Kg |
1.Features:
1. Double motor, double Panasonic transducer and PLC controller flexible bag length setting and cutting,saving time and film.
2. Human-machine interface, convenient and quick parameter settings.
3. Self diagnosis failure function, failure displayed clearly.
4. High sensitive optical electric color mark tracking system and digital input cut position, which make the sealing and cutting more accurate.
5. Separated PID control system for temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking on the knife and no waste of them.
7. Simple driving system, reliable working, convenient maintenance.
8. All controlled by program, convenient for function adjusting and upgrading.
2.Optional device features :
1. Date coder printer
2. Automatic Punching Device
3. Full Stainless Steel (SS304)
4.Touch screen/Digital Display (Ultra large touch screen)
5. Release the air
6. No empty bag function
7. Automatic feeder
8. Customized sealing patterns and notch
9. Single,Twin, triple,quad jaws for high speed for your choose
10. Gas device for modified atmosphere packaging(Nitrogen Charging Device,Air filling device)
3.Advantages:
1. All of machines from us obtained CE certificate.
2.We test the packing machine according to your needs before delivery to make sure the machine fit the materials and your products well.
3.We will make a video for you before delivery to let you check the quality.
4.Our technicians get rich experiences in making packing machine.
5.We have made many packing machines of pinpoint accuracy for domestic and abroad large enterprises.
4.Main Machine Components
Main Components | Brand | Country |
| 1.PLC | Panasonic | Japan |
| 2.Inverter | Panasonic | Japan |
| 3.Close to Switch | Omron | Japan |
| 4.Switch Button | Schneider | France |
| 5.Terminals | Wade Miller | German |
| 6.Touch Screen | WEILUN | Taiwan |
| 7.Motor | Jiangcheng | China |
| 8.Photocell | Yatai | China |
| 9.Temperature Control List | Yatai | China |
| 10.Pushbutton Switch | Schneider | France |
| 11.Power | Ming Wei | Taiwan |
| 12.Solid State Relay | Schneider | France |
| 13.Intermediate Relay | Schneider | France |
| 14.Breaker | MUNLAN | China |
| 15.Two Wire Switch | Schneider | France |
5. APPLICATIONS
Food : cake, bread, meat muffin, flaky pastry,biscuits, green bean cake, several sausage in a bag, noodles, beef jerky, egg roll, etc
Hardwares : hinge, stainless steel pipe, bearings , screw,nuts and washer, etc
Hotel supplies : Soap, disposable comb, tooth paste and brush in one set.
Stationary : pencil, eraser, notebook, paper card, adhensive tape
Electric products : battery, usb cable, earphone, user manual and accessories in one set.
Medical : mask, glove, gauze, capsule.
Daily use: plastic knife, fork, plate, sponge, scourer, wipes, several straws in a bag, cups, bottles, napkin etc.
Packaging Detail:
1.Packaging Details:Export and Sea-worthy standard wooden case
2. After inspection our machines are wrapped by plastic film and then carefully packed in wooden cases.
Dedusting & Cleaning >> lubricate Drive Parts >> Divide Machine Into Modules >> Wrap Modules With Plastic Film >> Packing Modules into Plywood Cases >> Mark Shipping Mark In The Cases
3. If any special requirements, we will pack it as requested.
Delivery Detail:
Time of shipment: Within 15 working days after receiving deposit, and also according to the quantity and
special requirement of packing machine you orded.
Term of payment: a. T/T (30% as deposit and 70% before delivery.
b. L/C at sight
Warranty: We gurantee one year from the date of cargo receipt by buyer.
Our trade show
Every year we attend many exhibitions at home and abroad.
FAQ
Q: Why choose us?
A: 1.More than ten years of production experience, make us pay more attention to product details.
2.Material selection, we insist on using domestic and international famous brands of accessories, to ensure the stability of the equipment.Quality is always the first
3.About after sale service, customer problems in using the machine, our staff will be in the first time to solve the problems program are given.
Q:I have never use this kind of packaging machine,how to control?
A: 1.Each machine we are accompanied by the relevant operating instructions.
2.Our engineers can operate through a video demonstration.
3.We can send engineers to the scene teaching.
Q:How to choose a best fit packaging machine?
A: 1.Give us the product size, weight, size of the packaging bag, packaging style, we will make a detailed plan for your reference.
2.Provide us the packaging products,they will be packed in our machines and mailed to you for your reference.
Q:What makes us outstanding from peers?
A: 1.A most strict QC standard in the industry is applied.
2.CE and SGS certificate.
3.High productivity with advanced machines.
4.A wide selection of styles, and product types.
Pls Contact to us:
Mr Joe
Tel : 86 0757 81763721 Mob:86 13827778258 Fax: 86 0757 88504280
Address: Building 8-2, Block B, Rongxing Industry Zone, Wuzhuang, Luocun, Shishan Town, Nanhai Dist., Foshan, Guangdong, China (Mainland) Zip: 528000
Website: http://www.fsaolide.com
http://www.packingmachineald.en.alibaba.com
Foshan AOLIDE Packing Machine Co., Ltd located at Foshan city, Guangdong province in China. We have experienced 10 years since started to design&develop Double Transducer Holizontal Packing Machine. During the period, we keep making progress, always trying to Upgrade our machine so that can meet the big command. Now, we have about hundred kinds of Machine, apply more than thirty industry line. And, we upgrade to Full-automatic and Non-Bacteria, successfully from semi-automatic. Our machine rang: Holizontal Packing Machine, Vertiacl Packing Machine, Automatic Forming Machine, Bakery Machine, Double-Transducer, Triple Servo motor and automatic packing line. Applying to food, hardware, hotel supplies, home suppliers, health supplies, office Supplies, medical, toy, electrical components and plastic products. We do the strict 100% detection to all the spare parts which come and out of our Factory, somemain parts like electrical components, trasmission parts and seal parts are all Imported. Our machine feature: Steady performance, low-fault rate, Qualified for high speed and Constant working. We not only have many agents in domestic markets, such as Beijing, Shanghai, Guangdong, but also gained trust from the clients in South America, MID-east, South-east Asia, Europe and Australia, We sincerely expect you to be our partnership.
