Beijing Daqin New Universe Electronic Co., Ltd. >> Mobile Cell Phone Screen Protector Machine

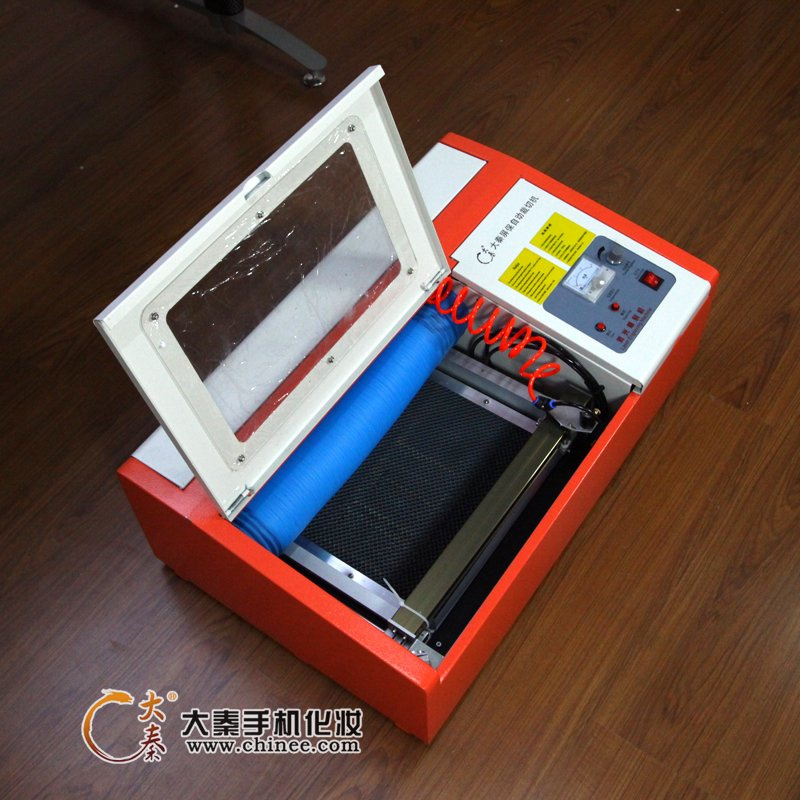

Mobile Cell Phone Screen Protector Machine

Mobile Cell Phone Screen Protector Machine
Price: US $ 968/Piece
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T,Money Gram,Western Union
Prod Model: daqin screen cutting -DQ 006
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Automation: Automatic
Type For Cutting Machine: Laser Cutting Machine
Type For Fold-bending Machine: Manual Fold-bend Machine
Application: Mobile Screen Protector
Item: Screen Protector Machine
Parcel: Software+Laser Cutting Machine+Materials
Total Weight: 45kg
Power: 200W
Max Cutting Area: 210mm*297mm
Inventory: in Stock

Product Description

Mobile phone screen protector machine
Features:
1. Precise Cutting.
2. Fine and smooth edge, no rough selvedge.
3. High-compatibility of materials.
4. On-production production, no swelling inventories.
5. Easy to use.

The entire system is made up of the Daqin mobile screen protector design software and the cutting machine.

Application range: Cutting various model of mobile phone screen protection film worldwide(Brand of newly published mobile phone protection film will be updated in time ), personalized screen protection film of the camera, MP3, MP4, tablet, PC etc.

The Daqin software runs on the computer. Various dimension data of the screen protection film are stored in the Daqin software. Run the software and choose the corresponding data of the screen protection film according to the model and brand, then the chosen data will be output to the Daqin screen protector cutting machine. After that, it will cut out the corresponding shape of the screen protection film with the material of PET, PVC etc. Also, the user can add data of new model of mobile phone screen film.

Special announcement: Daqin automatic screen protector cutting system won TWO national patents, with proprietary intellectual property rights.
Patent number:
201210280019.7
201220389999. X
Name phone screen protector cutting machine
Model  Daqin screen cutting - DQ- A188
Cutting way  Controled by professional software
Cutting Type  Laser Cutting
Beam type CO2(Carbon dioxide beam)
Beam power 40 W
Cooling system Circulating water cooling system
Exhausting fume method Back exhaust
Maximum cutting area 297mm*210mm
Cutting precision ±0.01mm
Cutting speed <50cm/s
Drive type 0.9°Stepper motor
Communication interface  USB Print line
Operating temperature  5-45 C
Machine size 83 CM * 50 CM * 25 CM
Weight 32 KG
Total Power 200 W
Packing size  92 CM * 62 CM * 38CM
Weight after packing 45 KG
Package Three layers
Shipping way  DHL ,Fedex ,TNT ,UPS ,EMS and so on
Advantage No rough edge and Accurate
DAQIN, Global Leader of mobile phone sticker machine, sell well in 73 countries since 2002. Daqin establish the first global mobile phone sticker business institute. Mission: Raise the value of mobile sticker industry, help 10 million merchants succeed!

As another wonder of China, in the 12 years process, DAQIN made the best mobile phone sticker machine and DIY product, fulfilled dreams of millions of entrepreneurs in the mobile phone sticker machine field. 4 of DAQIN's products have a 70% market share in the global market. For the mobile phone sticker machine, DAQIN is your first choice!

DAQIN has almost 20 kinds of national registered trademarks and product patents. Successfully attained the SGS certification and the ISO9001: 2008 certification.
