| Prod Model: |
HTc-200ADU |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Certification: |
CE |
| Condition: |
New |
| Type: |
Cabinet Air Conditioner |
| Mounting: |
Wall/Window Mount |
| Operating Voltage: |
48VDC 220VAC |
Product Description

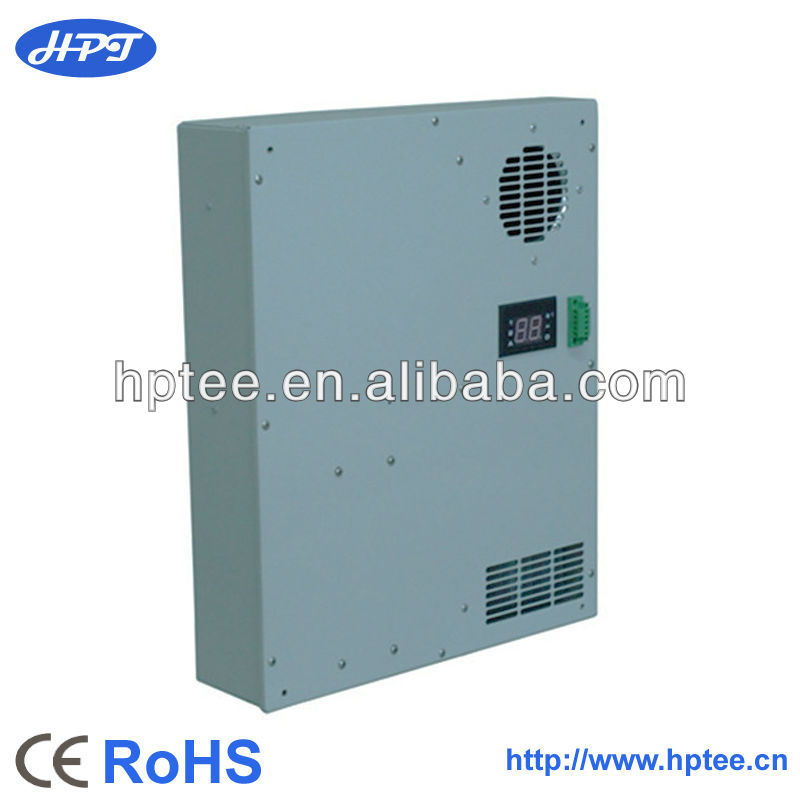

HTc series uses high reliability thermoelectric cooling modules, and integrated into the efficient heat pipe cooling technology to achieve efficient cooling.
Thermoelectric cooling (TEC) uses the Peltier effect to create a heat flux between the junctions of two different types of materials; The core is Thermoelectric Peltier Module.
Peltier modules are semi-conductor elements which allow cooling, heating and temperature regulation through direct current electricity. By putting a direct current through a Peltier module, the following capabilities are achieved:
-A temperature difference develops on the sides of the units.
-The low temperature side absorbs heat and the high temperature side radiates heat, transferring heat from the low to the high temperature of the Peltier module. In other words, it serves as a heat pump.
-By simply changing the polarity of the current, the direction of heat flow can be changed, and future, by altering the size of the current it is possible to change the amount of heat transfer.
Scope:
1. Widely used in telecommunication, broadcasting, electricity, automation and other industries outdoor cabinet, IDC room cooling needs.
2. IP55 level protected to avoid moisture, dust and water penetrating into inside of enclosure.
3. Suitable for a variety of harsh working conditions, long-term operation.
Feature:
-Rugged and reliable solid state air conditioner (no moving parts other than fans)
-AC, DC optional for various application
-Multiple protection function
-Alarm output to monitoring system
-Interchangeable and visual display service adapter
-Automatic self start after power recovery
-Remote control through RS485comm. Port
-Speed controller for AC, DC models reduces Noises, increases life and saves energy.
-Integration of superconducting heat pipe technology and micro-channel heat transfer technology, the performance is excellent.
-Proper design for easily installation and service
|
No. |
Description |
Models |
|
HTc-15BD |
HTc-20BD |
HTc-30BD |
HTc-40BD |
HTc-50BD |
|
1 |
Cooling Capacity(W) |
150 |
200 |
300 |
400 |
500 |
|
2 |
Heating Capacity |
178 |
241 |
359 |
478 |
606 |
|
3 |
Rated Voltage |
DC(V) |
48 |
48 |
48 |
48 |
48 |
|
4 |
Power Consumption |
W |
266 |
338 |
487 |
641 |
795 |
|
5 |
Rated Current |
A |
5.5 |
7 |
10.1 |
13.4 |
16.6 |
|
6 |
Air Circuit
(Enclosure side) |
M3/h |
70 |
80 |
120 |
160 |
200 |
|
7 |
Air Circuit
(Ambient side) |
M3/h |
100 |
140 |
200 |
270 |
340 |
|
8 |
Working Condition |
Temp. |
--20degree-55degree |
|
RH |
10%-95% |
|
9 |
Fan speed control |
Adjust fan speed according to internal temperature |
|
10 |
TEC control |
Intelligent Control (OPTIONAL)/Thermostat |
|
11 |
Cooling/Heating |
heating (option) |
|
12 |
IP grade |
Ip55 |
IP55 |
IP55 |
IP55 |
Ip55 |
|
13 |
Noise(dBA) |
55 |
55 |
60 |
63 |
63 |
|
14 |
Weight(kg) |
11.8 |
11.8 |
12.3 |
12.3 |
12.3 |
|
15 |
Dimension(MM) |
400W*480H*104T |
|
16 |
Installation |
Door installation/side installation |
|
Note |
1. Specifications subject to change without notice
2. DC power for TEC and Fan |
|
No. |
Description |
Models |
|
|
HTc-10ADU |
HTc-20ADU |
|
|
1 |
Cooling Capacity(W) |
100 |
200 |
|
|
2 |
Heating Capacity |
158 |
241 |
|
|
3 |
Rated Voltage |
DC(V) |
48 |
48 |
|
|
4 |
Power Consumption |
W |
150 |
300 |
|
|
5 |
Rated Current |
A |
3.1 |
6.25 |
|
|
6 |
Air Circuit
(Enclosure side) |
M3/h |
70 |
125 |
|
|
7 |
Air Circuit
(Ambient side) |
M3/h |
100 |
200 |
|
|
8 |
Working Condition |
Temp. |
--20degree-55degree |
|
|
RH |
10%-95% |
|
|
9 |
Fan speed control |
Adjust fan speed according to internal temperature |
|
|
10 |
TEC control |
Intelligent Control (OPTIONAL)/Thermostat |
|
|
11 |
Cooling/Heating |
heating (option) |
|
|
12 |
IP grade |
Ip55 |
Ip55 |
|
|
13 |
Noise(dBA) |
55 |
55 |
|
|
14 |
Weight(kg) |
7 |
7 |
|
|
15 |
Dimension(MM) |
300W*420H*94T |
|
|
16 |
Installation |
Door installation/side installation |
|
|
Note |
1. Specifications subject to change without notice
2. DC power for TEC and Fan |
|
Suzhou HPT commitment to the application and development of heat pipe technology in industrial energy efficiency, the field of mine safety, communications client control field. Is a leading provider for waste heat utilization, outdoor cabinet cooling, mine emergency system thermal solution.
Continuous innovation based on customer needs, in cooperation with partners, establish a leading position in the three areas - the use of low-grade heat source, client control in the communications industry, temperature and humidity control for mine rescue capsule and the cave. Our products and solutions are widely used all over the country, and exported to the United Kingdom, Italy, Brazil, Saudi Arabia, Canada, India and other places.
Innovation is the key factor of our products and services provide a competitive advantage, at the same time, we also strive to challenge the status quo and continue to provide customers with better solutions. Cooperation with the Harbin Institute of Technology to establish the research base, and the establishment of R & D center, with completely independent intellectual property rights, to provide basic protection for innovation.
Technology, quality as the core, the use of heat pipe technology expertise and a wealth of special industry engineering experience to provide customers with a full range of services and comprehensive technical support.
